Controlling Visibility of Constraints

1 Click View menu
2 Click the Annotation Categories tab.
3 Find the Constraints category, and deselect the check box to hide constraints in the view.

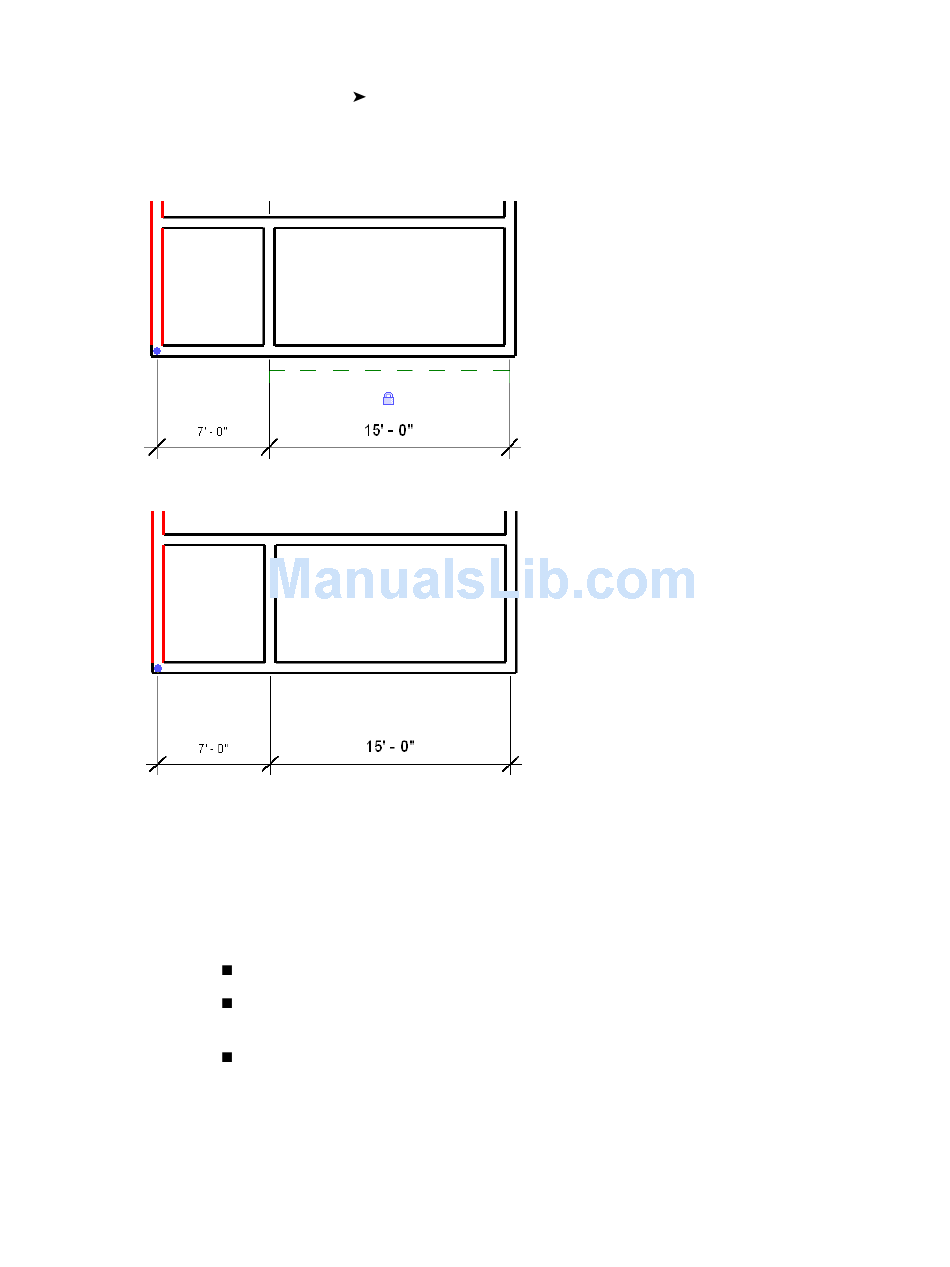

The following image shows the constraint (the green dashed line) visible.
The following image shows the constraint hidden.
For more information, see

Removing Constraints

1 Select a dimension.
2 Do any of the following:
Visibility/Graphics, or use the keyboard shortcut VG.
Visibility and Graphic Display in Project Views
Click a lock to unlock it.
Click the EQ symbol to remove an equality constraint. The EQ symbol appears with a slash
through it when the equality constraint is not applied.
Delete the dimension that corresponds to the constraint. A warning appears that you are
not deleting the actual constraint. Click Unconstrain in the warning dialog to remove the
constraint.
on page 150.
