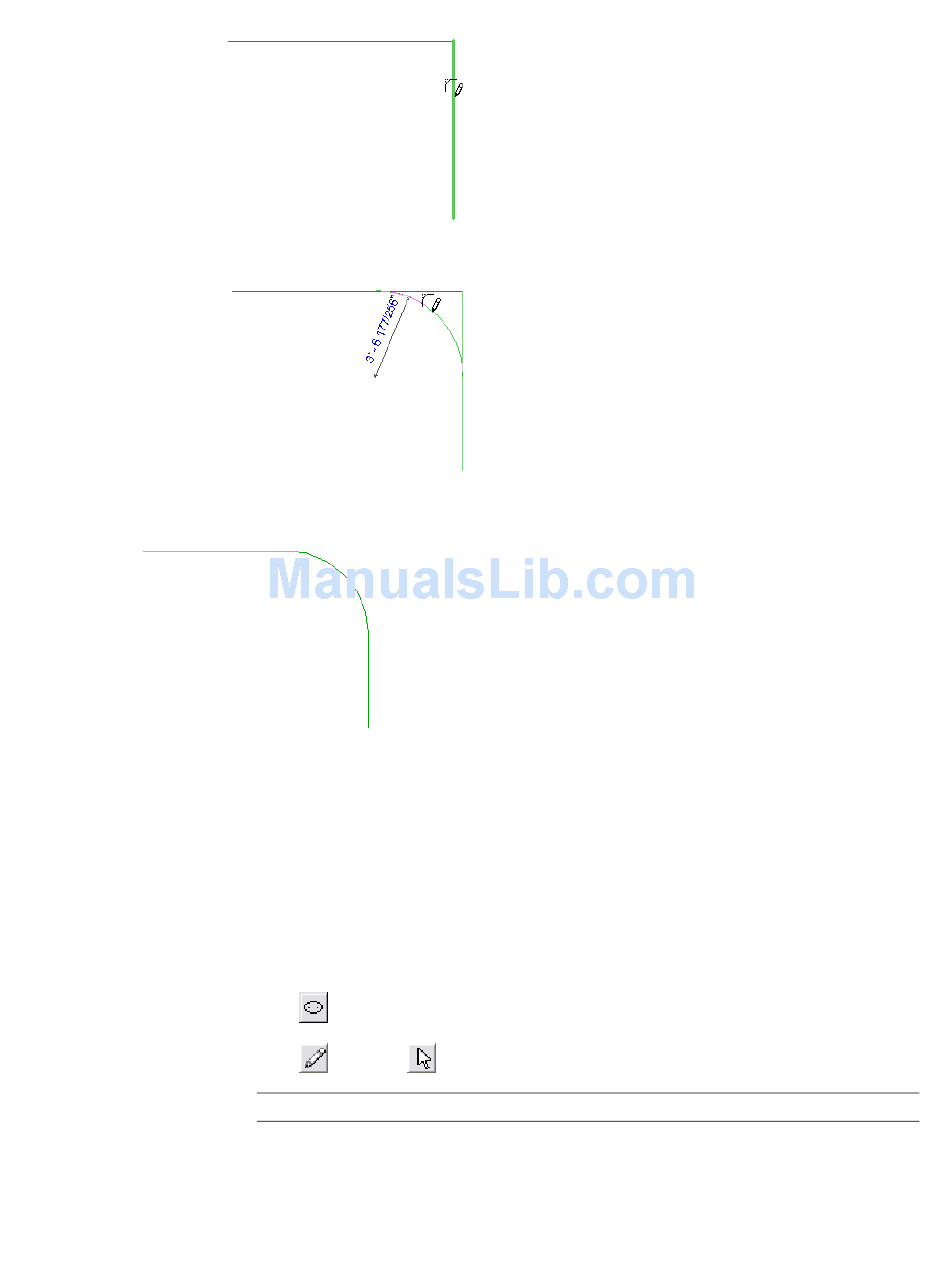

5 Move the cursor and click to define the fillet arc.
After you place the fillet, Revit Architecture automatically trims the elements to the fillet.

Sketching Ellipses

Ellipses are available for model lines, detail lines, beams, and sketch-based elements.

Sketching a Full Ellipse

1 On the Design Bar, select a tool that allows for an ellipse, such as Lines.
2 On the Options Bar:
260 | Chapter 6 Sketching
a Click (Ellipse).
b Click (Draw) or
NOTE If you select Pick Lines, you can pick the edge or face of another ellipse.
c If you selected Pick Lines, optionally select Offset and specify a value.
(Pick Lines).
