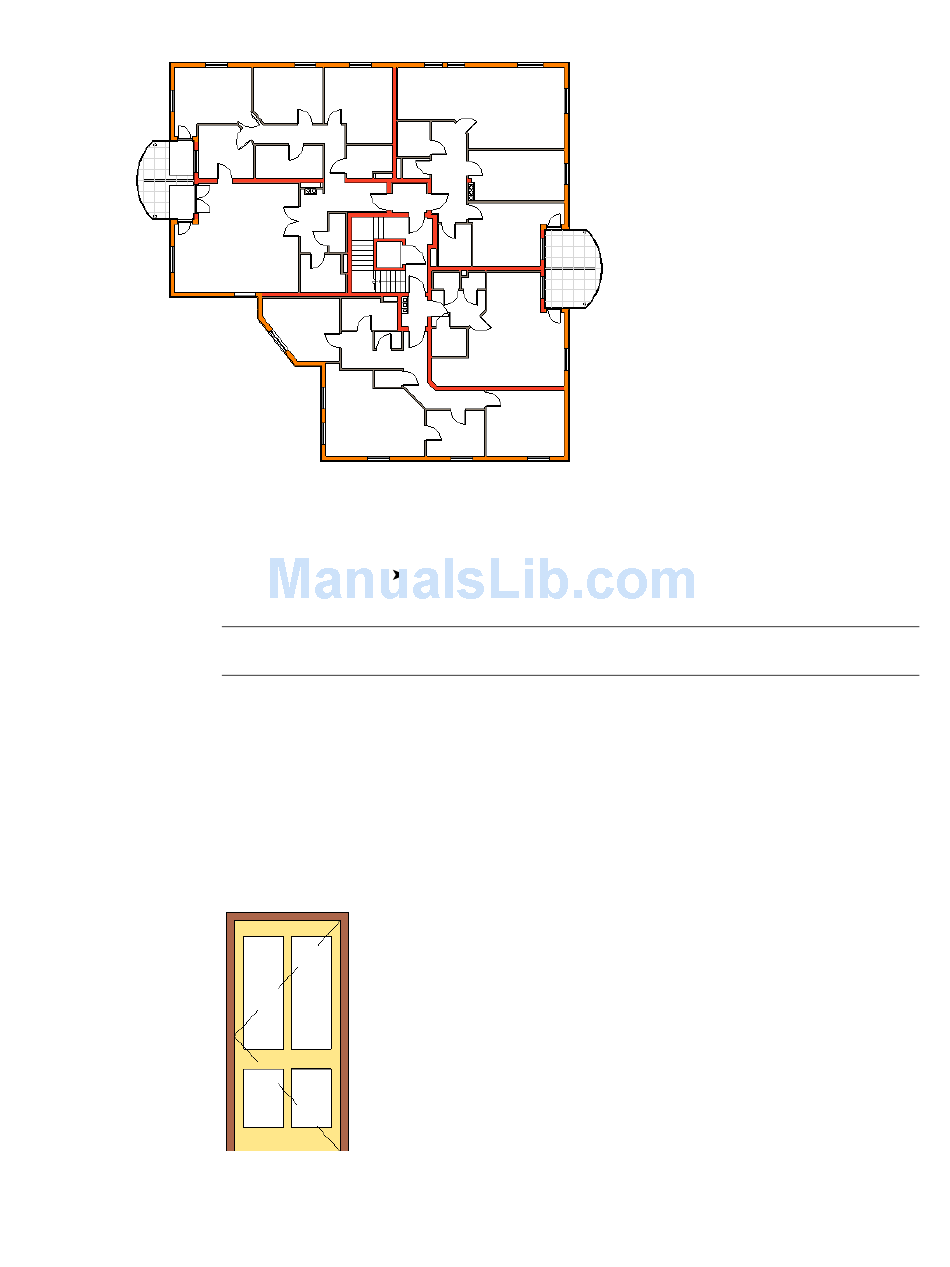

Door layout in plan

Adding Doors

1 Click Modelling menu
2 In the Type Selector, select the door type.
NOTE At this point you can load additional door types, if necessary. On the Options Bar, click Load,
and navigate to the family file.
3 On the Options Bar, select Tag on Placement to tag the door automatically. To include a tag
leader, select Leader and specify the length.
To load additional tags, click Tags. For more information, see
4 Move your cursor over a wall.
When placing the door in plan view, press the space bar to flip the door swing.
5 Click to place the door in the desired spot in the wall.
Finished door in
elevation
Door, or on the Basics tab of the Design Bar, click Door.
Loading Tag Styles on page 492.
Doors | 733
