2 Drag the elbow control to the desired location, or drag the blue control near the callout head.

Callout Tags

The callout tag consists of the callout head, callout bubble, and leader line. (See
99.) Use the Family Editor to create a callout head family to define the shape of the callout head and the
information that it contains. In a project, create a callout tag family to specify the callout head family to
use and the radius of the corners of the callout bubble. To define the line weight, color, and style for the
callout bubble and leader line, use project settings.

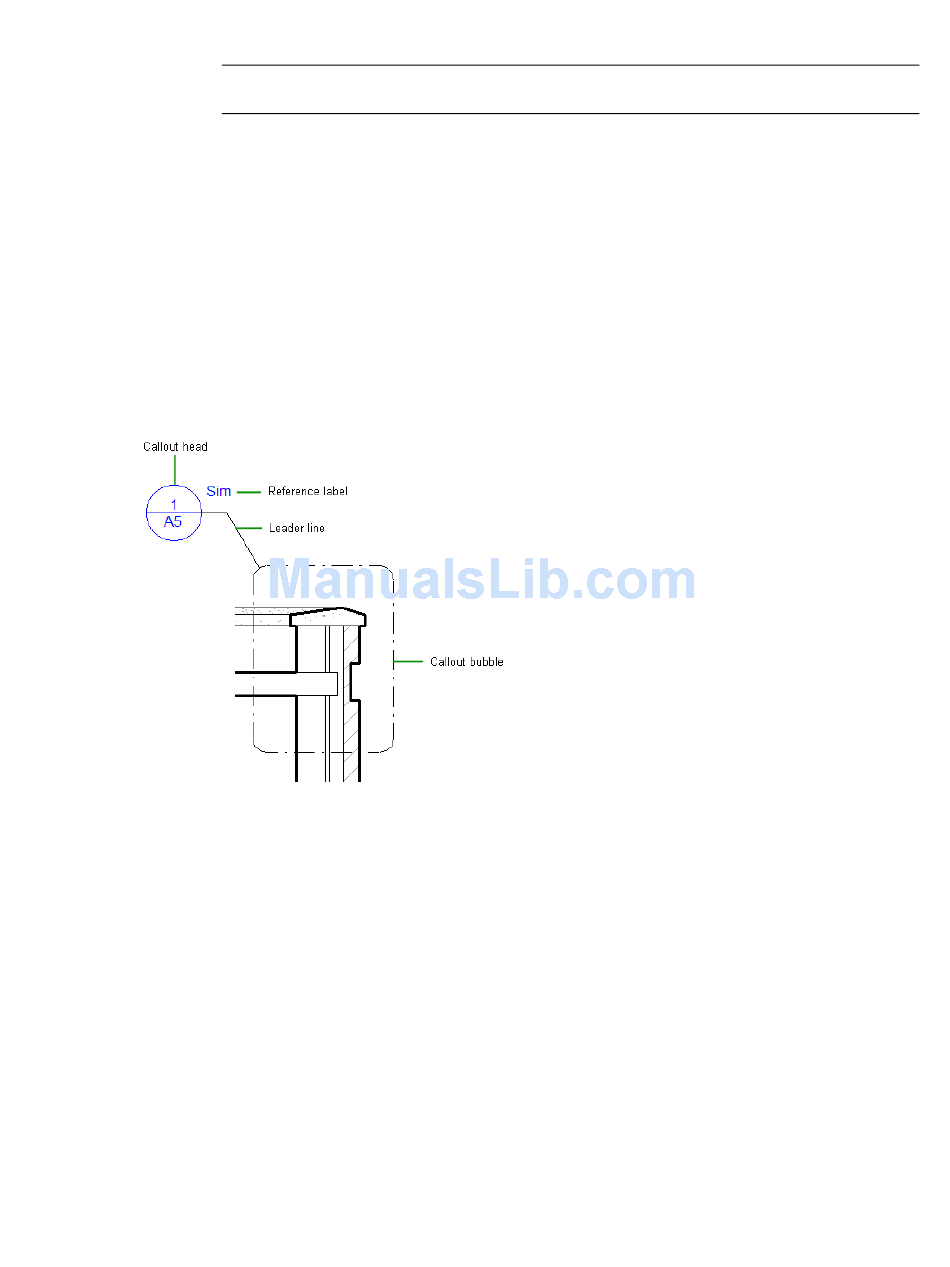

Parts of a callout tag

Creating a Callout Head

The callout head is the symbol that displays to identify a callout bubble in a parent view. You can create a
callout head family to specify a desired format or to include specific information.
104 | Chapter 4 Project Views
A blue elbow control displays in the middle of the line.
NOTE You may need to zoom in on the callout bubble to see the blue controls. See
Drawing Area on page 64.
As you move the control, notice that the leader line attaches to different points on the callout
bubble. The leader line segments snap to vertical and horizontal planes.
Navigating the
Callout Tag Parts on page
