Site Components

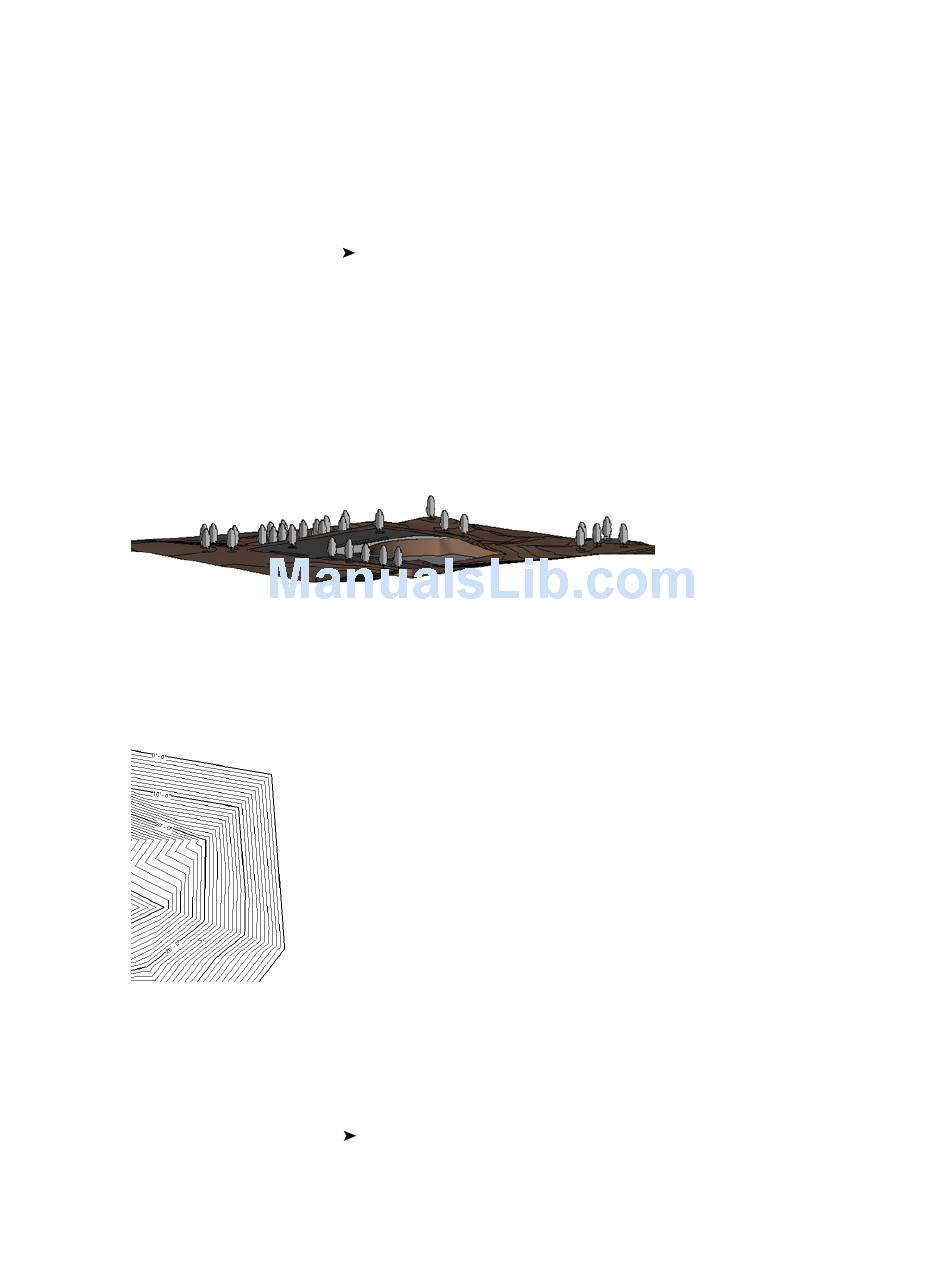

Use the Site Component command to place site-specific components (such as trees) into a site plan. The
Type Selector lists site-specific components to choose from. If no site components are loaded into your
project, an error message indicates that no appropriate families are loaded. See
352.
To add site components:
1 Open a view that displays the toposurface to modify.
2 Click Site menu
3 In the Type Selector, select the component type.
4 Click in the drawing area to add one or more components.
To pick a host for the components (optional):
5 After placing the components, on the Design Bar, click Modify.
6 Select the components.
7 On the Options Bar, click Pick Host.
8 Select the host.

Contour Line Labels

You can label contour lines to indicate their elevation. Contour labels display in site plan views.
Labeled contour lines

Labelling Contour Lines

1 Create a topographic surface with different elevations. See
2 Open a site plan view.
3 Click Site menu
908 | Chapter 13 Working with Site Components
Site Component, or on the Site tab of the Design Bar, click Site Component.
Label Contours, or on the Site tab of the Design Bar, click Label Contours.
Loading Families
Toposurfaces on page 893.
