on all elements that have the Hidden Lines subcategory. The Remove Hidden Lines tool is the inverse of
the Show Hidden Lines tool.
1 Click Tools menu
2 Place the cursor on an element that is hiding another element, and click to select it.
For example, select a filled region that is overlapping a wall.
3 Place the cursor on the element with lines to be shown, and click to select it.
The lines of this element display in a hidden line style through the overlapping element. To change
the hidden line style of the element, use the Object Styles command.
4 To reverse the effects of this command, click Tools menu
toolbar, click
5 Select the element that will hide the other element.
6 Select the other element to be hidden.

Section, Elevation, and Callout View Tag Setup

You can define the look of view tags used for sections, elevations, and callouts by editing their properties.

Editing Type Properties for View Tags

1 Click Settings menu
2 In the Element Properties dialog, edit type properties as necessary.

Selecting View Tags

Each view tag has several components. If you want to modify a view tag s element properties or make other
changes, you must be sure to select the entire view tag. If you select only a portion of it, you may not be
setting properties for or changing the correct object.

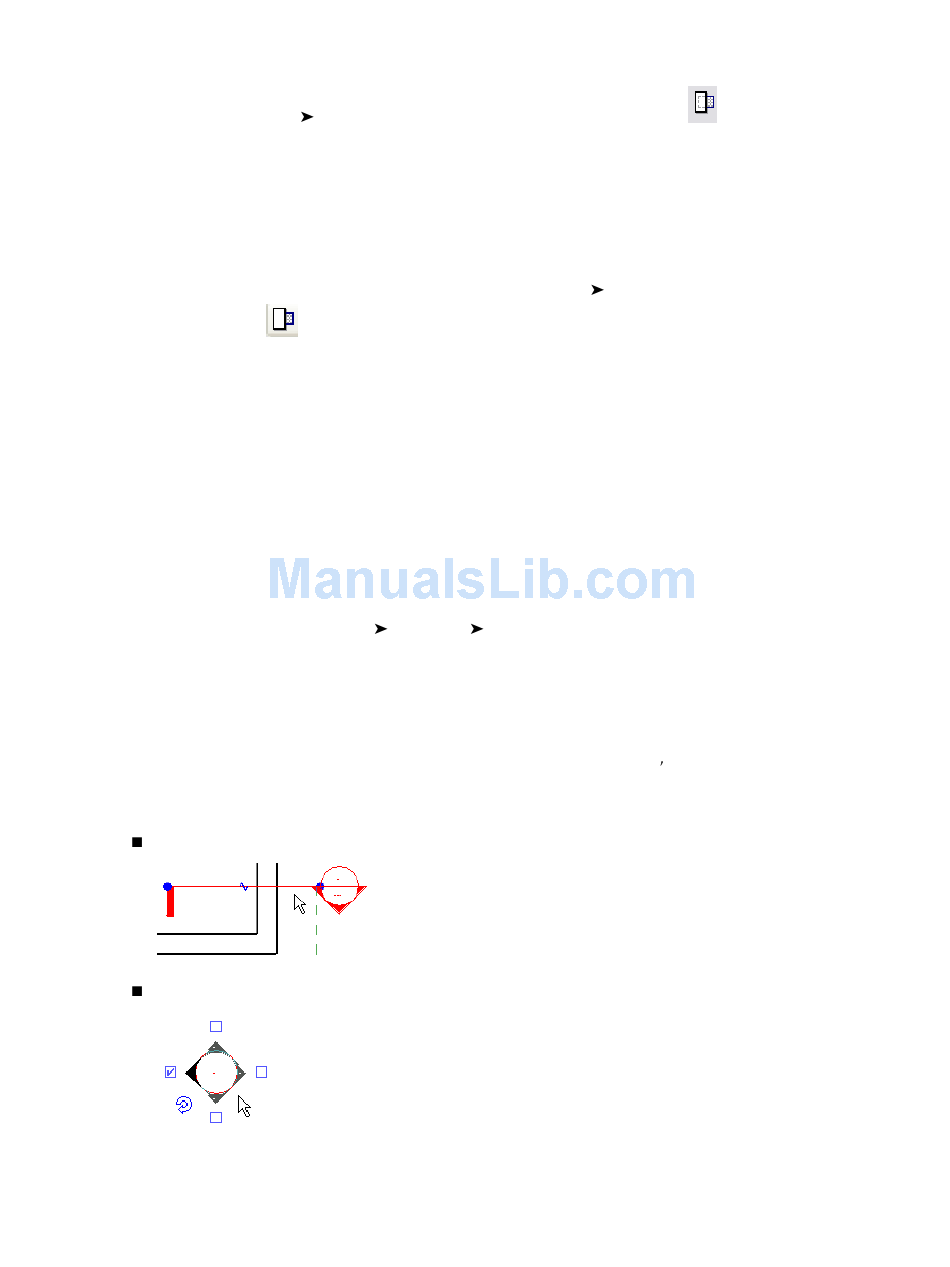

To select a section tag, click the section line.
To select an elevation tag, click the square part of the tag.
196 | Chapter 4 Project Views
Show Hidden Lines, or on the Tools toolbar, click
.
View Tags
Remove Hidden Lines, or on the Tools
Callout Tags, Elevation Tags, or Section Tags.
.
