Creating Beams

You should add grids and columns before creating beams.
When adding a beam to a plan view, you must set the bottom clip plane below the current level; otherwise,
the beam is not visible in the view.
Add beams using one of the following methods:
Sketch individual beams.
Create a chain of beams.
Select grid lines that lie between structural elements.
Create a beam system. For more information, see

Sketching Individual Beams

The Beam tool is the primary means with which you sketch individual instances of beams.
To sketch individual beams
1 On the Structural tab of the Design Bar, click Beam.
2 Load a structural beam family, if one has not been previously loaded.
3 In the Type Selector, select a beam type.
4 On the Options Bar,
5 Sketch the beam by clicking the start and end point.
772 | Chapter 12 Working with Structural Components
click to set beam parameters.
click a value on the Usage menu to set the structural usage of the beam or leave it set to
Automatic
The cursor snaps to other structural elements, such as the centroid of a column or the centerline
of a wall, when you sketch a beam. The status bar displays where the cursor is snapping.

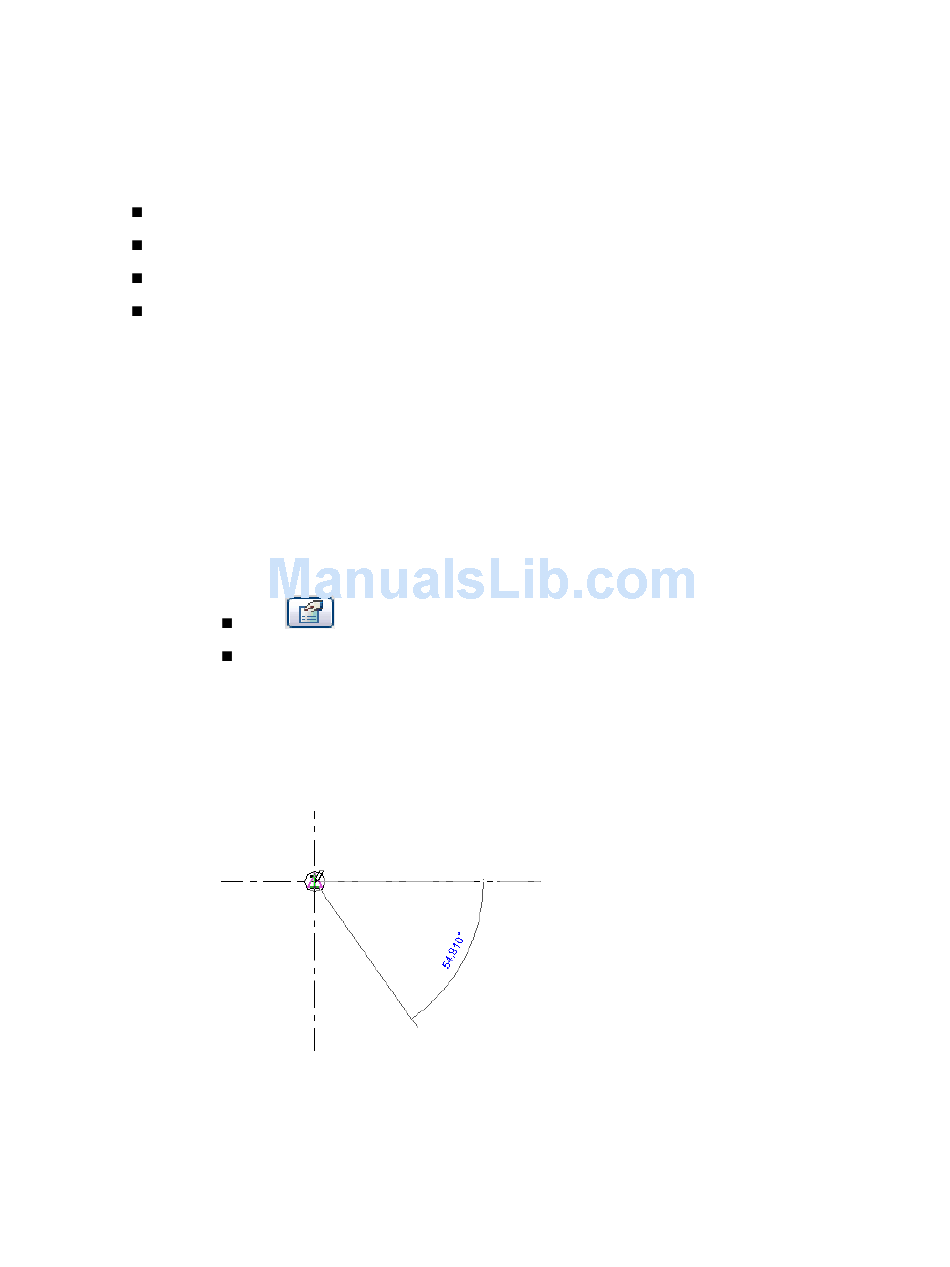

Beam start point - snap to column
Beam Systems on page 807.
