4 Click Finish Sketch.

Beams

Beams are structural elements used for load bearing applications. Elements of each beam are defined through
the type properties of the specific beam family. In addition, various instance properties can be modified to
define the functionality of the beam.
768 | Chapter 12 Working with Structural Components
When you sketch an opening for a structural beam, brace, or structural column using the
rectangle option, you can specify a radius, which allows you to sketch rectangles with fillets.
This helps to avoid sharp corners on the opening that can concentrate stresses.

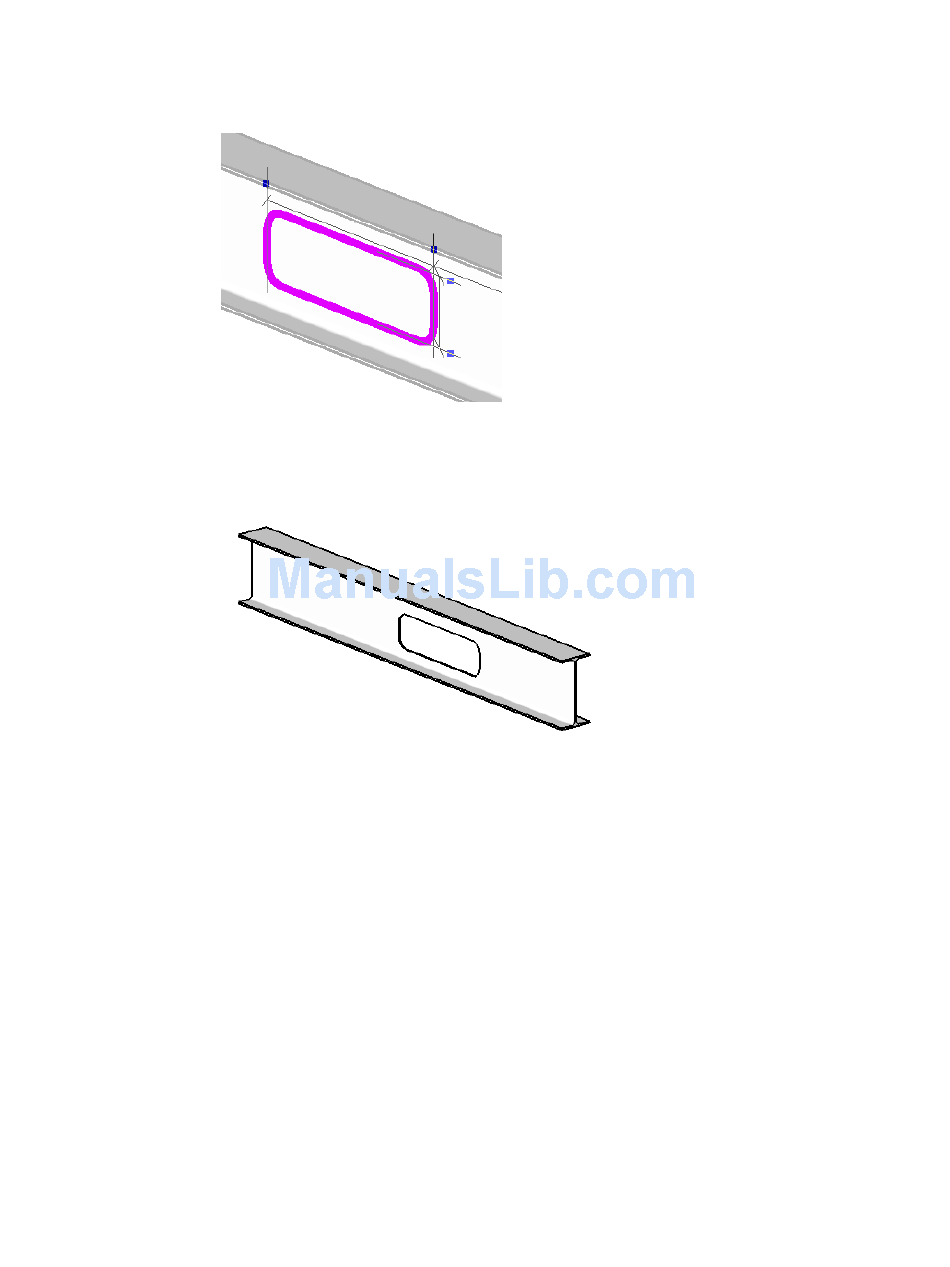

Beam opening with radius
For more information, see
Finished sketch
Sketching on page 251.
