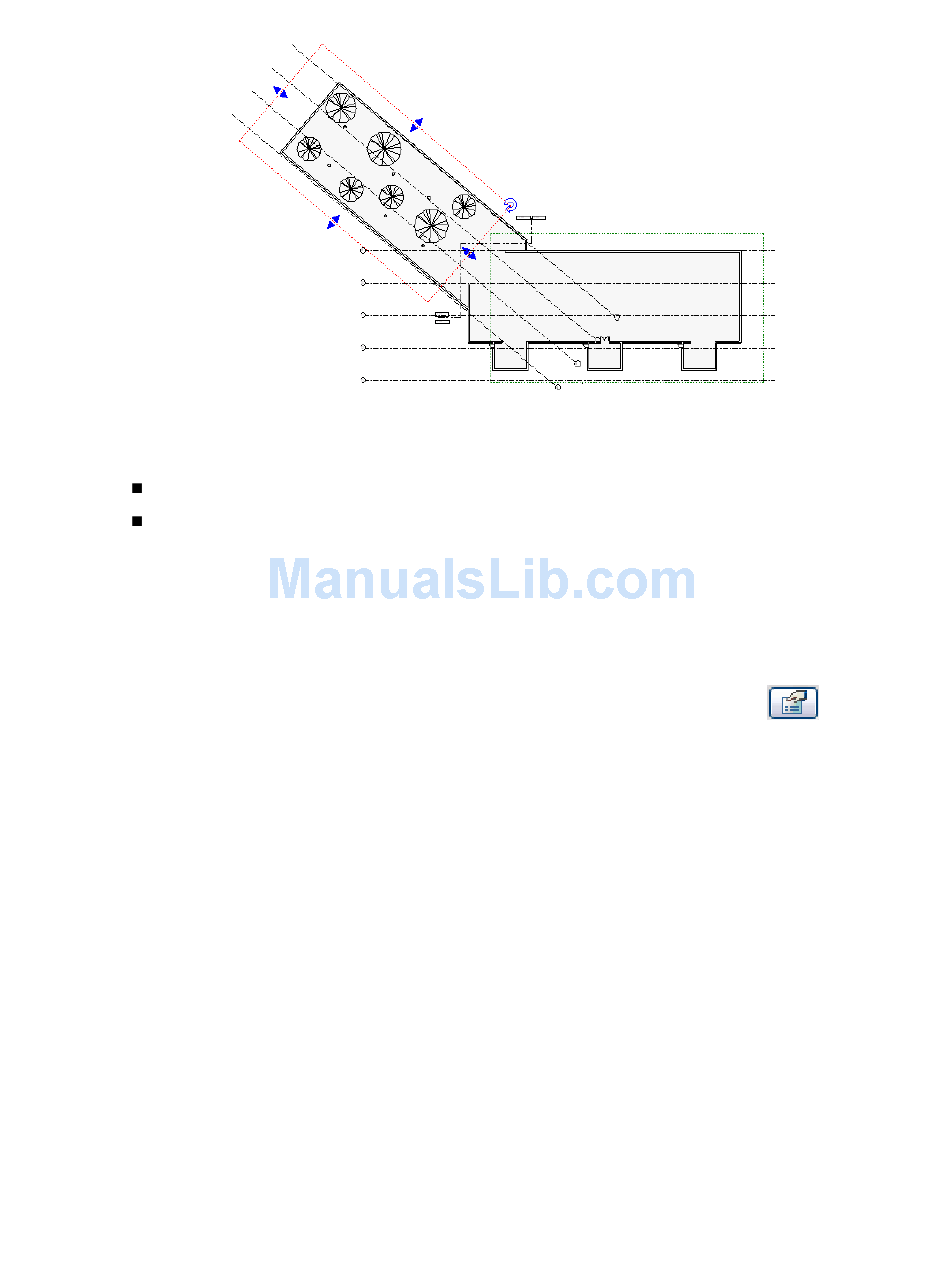

4 If desired, open a 3D view to further adjust the size and position of the scope boxes.
After creating scope boxes, you need to do the following:
Apply each scope box to datum elements.
(Optional) Apply each scope box to the desired views

Applying a Scope Box to Datums

To control the visibility of datum elements in a
scope box.
1 Select the appropriate datum element (for example, a grid line), and click
2 For Scope Box, select the desired scope box.
For example, for a project with 2 scope boxes named Scope Box 1 and Scope Box 2, select Scope
Box 1 from the drop-down list.
3 Click OK.
The datum now displays only in views whose cutting plane intersects the selected scope box. If
a view's cutting plane lies outside the scope, the associated datum does not appear in the view.
For example, in the following illustration, the top view shows scope boxes around the main
building and the aviary wing. Scope Box 1 was applied to grid lines for the main building, and
Scope Box 2 was applied to grid lines for the aviary wing. As a result, the dependent views
(bottom) show only the grid lines that apply to each part of the building.
on page 1055
on page 1053.
scope box, you must associate each datum element with the
Controlling Visibility of Datums Using Scope Boxes | 1055
.
