Modifying Grids

You can modify the appearance of grids in many ways.

Changing the Grid Type

To change the grid type on placement
1 Click Drafting menu
2 In the Type Selector, select a different grid type.
To change the grid type in a project view
1 Select the grid line in the drawing area.
2 In the Type Selector, select a different grid type.

Changing Grid Value

1 Click the grid header, then click the value in the grid header.
2 Enter a new value.
You can also change the value by selecting the grid line and clicking
Name property.

Offsetting a Grid Line from Its Bubble

There may be times when you sketch a grid line and want to offset its bubble from the rest of the grid line.
1 Sketch a grid line, or select an existing grid line.
2 To resize the grid line, select and move the end drag control near the bubble.
3 Click the Add Elbow drag control (
1034 | Chapter 16 Annotating and Detailing
Grid, or on the Basics or Drafting tab of the Design Bar, click Grid.
You can enter a number or a letter.
The end of the line near the bubble has drag controls.

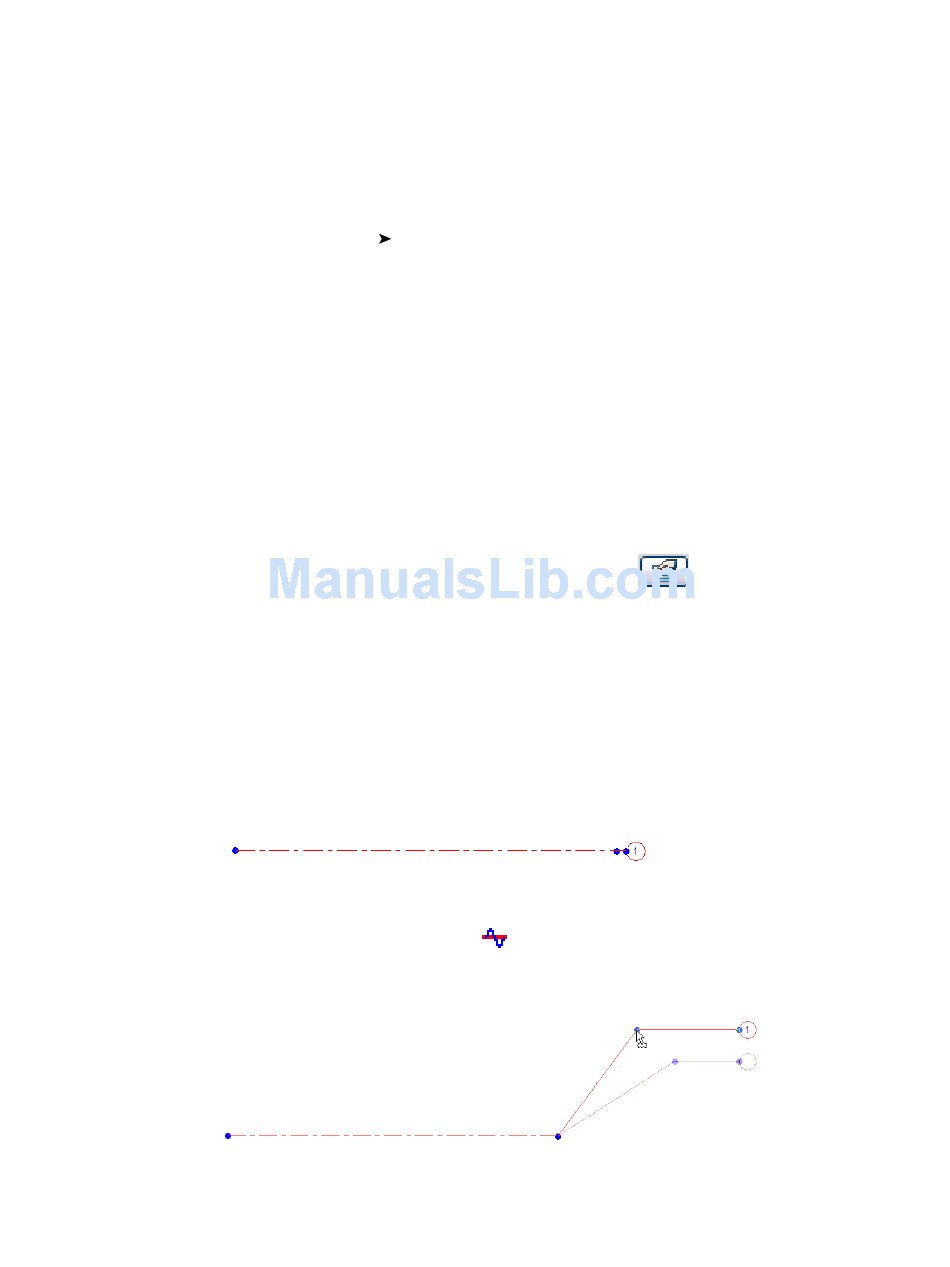

Selected grid with drag controls
the bubble away from the grid line.
Bubble dragged from grid line
), then drag the control to the desired location to move
. Enter a different value for the
