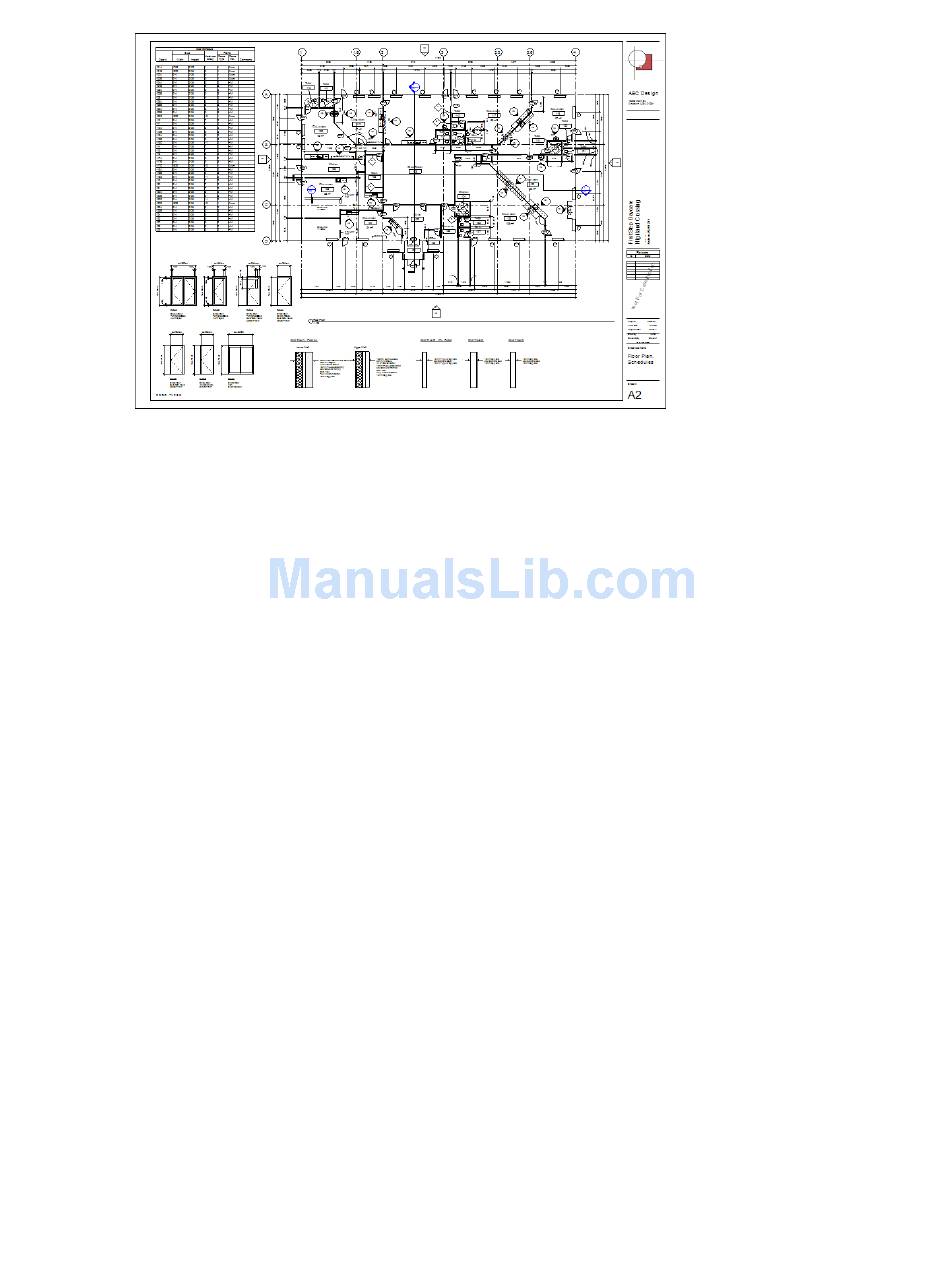

Adding a Schedule to a Sheet

1 In a project, open the sheet to which you want to add a schedule.
2 In the Project Browser, under Schedules/Quantities, select the schedule, and drag it onto the
3 Move the schedule to the desired location, and click to place it on the sheet.
You can modify the schedule after placing it on the sheet. In the sheet view, right-click the schedule, and
click Edit Schedule. The schedule view displays. You can now edit the cells of the schedule. See
in a Schedule
page 978.

Formatting a Schedule on a Sheet

You can change the attributes that control the display of a schedule on the sheet, including grid lines and
text attributes.
The following procedure assumes that you have added a sheet to a project and placed a schedule on the
sheet. See Adding a Sheet
To format a schedule on a sheet
1 In the Project Browser, under Schedules/Quantities, right-click the schedule name, and click
2 In the Element Properties dialog, for Appearance, click Edit.
3 On the Appearance tab of the Schedule Properties dialog, define the settings as desired.
4 Click OK.
1002 | Chapter 15 Preparing Construction Documents
sheet in the drawing area. Release the mouse button when the cursor is over the sheet.
Revit Architecture displays a preview of the schedule at the cursor.
on page 141. You can also rotate the schedule on the sheet. See
on page 970 and
Properties.
The Appearance options affect the display of the schedule on sheets only. They do not affect
the display in the schedule view.
For information and examples of how to set the Appearance options, see
on page 136 and Schedule Formatting Samples
Adding a Schedule to a Sheet
on page 139.
Editing Cells
Rotating a View on a Sheet
on page 1002.
Formatting a Schedule
on
