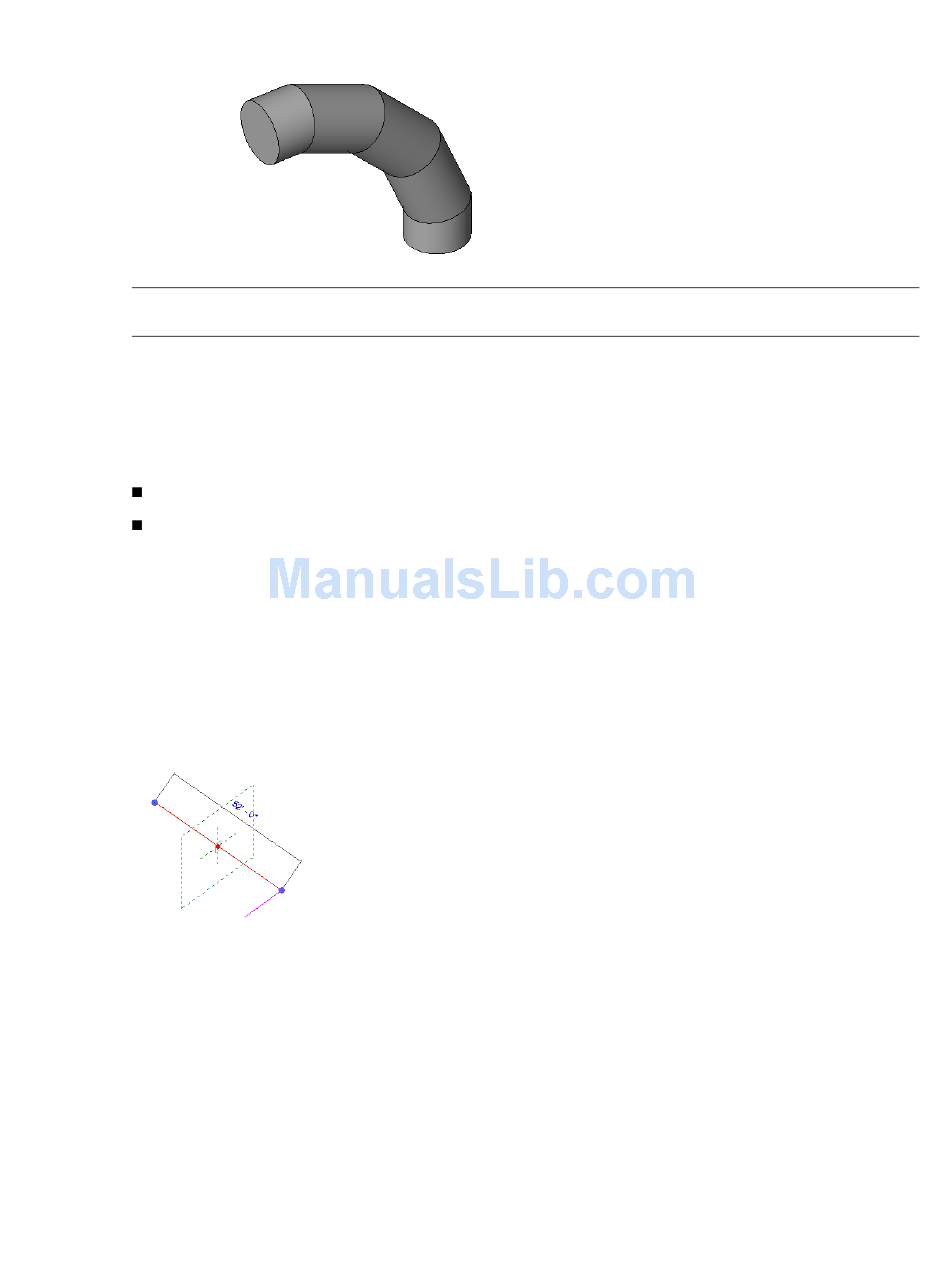

Sample segmented sweep with 30 degree Maximum Segment Angle.
TIP You can change a segmented sweep to a non-segmented sweep by clearing the check box for Trajectory
Segmentation.
Editing the Sweep
You can quickly edit either the path or the profile of the sweep from the Options Bar. Click Modify, select
the sweep geometry, and then click either of the following:
Edit Path to edit the path sketch.
Edit Profile to edit the profile sketch.
Sweep Tips
When creating a sweep with a tangent arc in the path, be sure the profile is small enough to sweep around
the arc without the resulting geometry intersecting itself. An error occurs if the geometry intersects. For
more information about sweep error messages, see
If you create a sweep path by using the Pick Path command, you can drag the end points of the path lines
as you are sketching it.

Creating Solid Blends

The Blend command blends 2 profiles together. For example, if you sketch a large rectangle and a smaller
rectangle on top of it, Revit Architecture blends the 2 shapes together.
The following procedure is a general method for creating a blend. Steps may vary depending on your design
intent. You can also create massing shapes using the Blend command. Access massing commands through
the Massing tab of the Design Bar. For more information on massing, see
Studies on page 517.
Be sure to read Blend Tips on page 385 for blends.
Error Handling on page 1332.
Conceptual Design with Massing
Solid Geometry Tools | 383
