5 Move the cursor and click to define the arc.

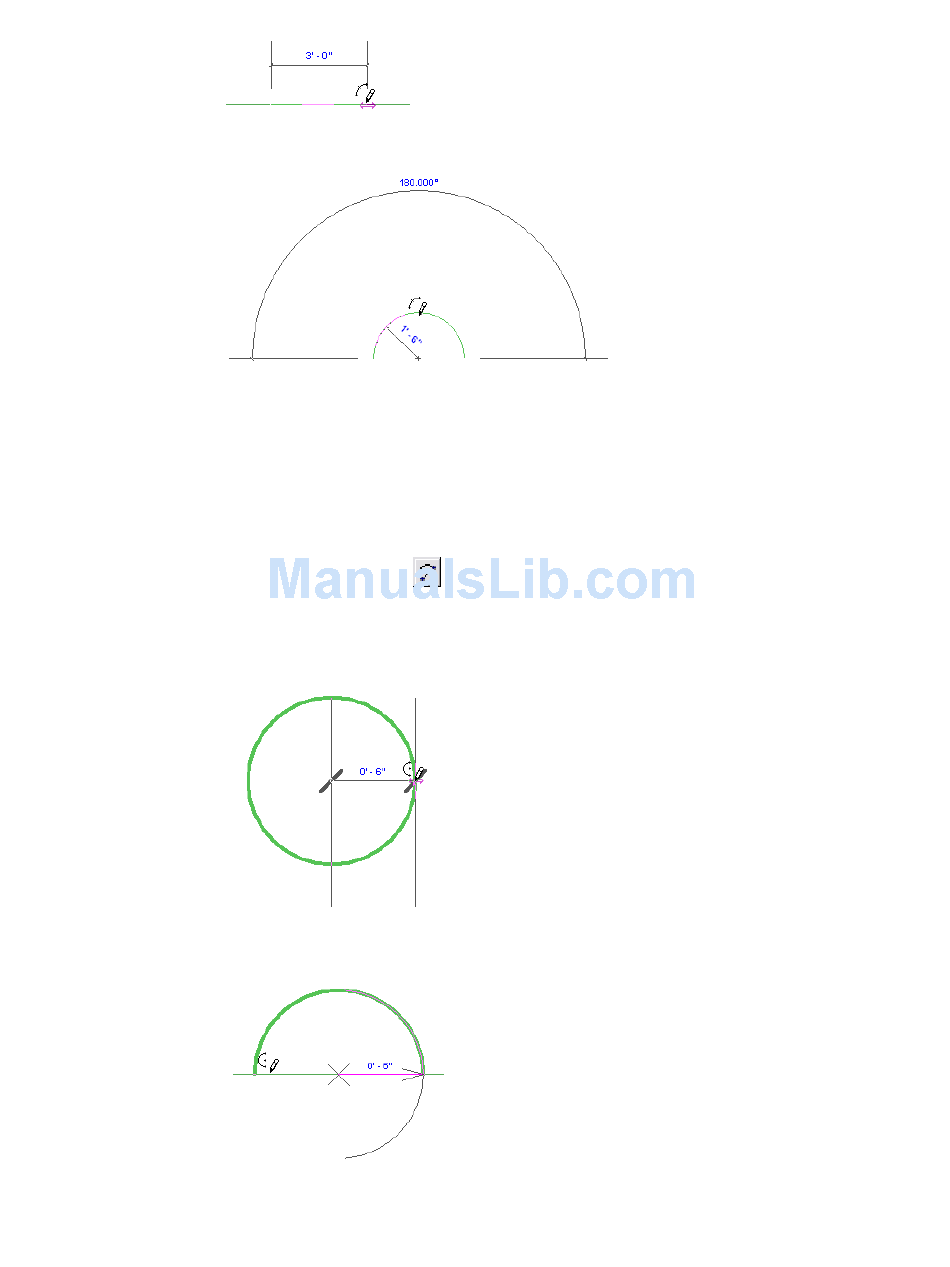

Sketching an Arc from the Center and End Points

Use this sketching option to create an arc up to 180 degrees. If you move the cursor so the arc exceeds 180
degrees, the arc flips to the other side.
1 On the Design Bar, select a tool that allows for an arc, such as Lines.
2 On the Options Bar, click
3 Click in the drawing area to specify the center of the arc.
4 Move the cursor and click to define the arc radius.
5 Move the cursor and click to specify the end point of the arc.
258 | Chapter 6 Sketching
drawing area.
(Arc from center and end points), and place the cursor in the
