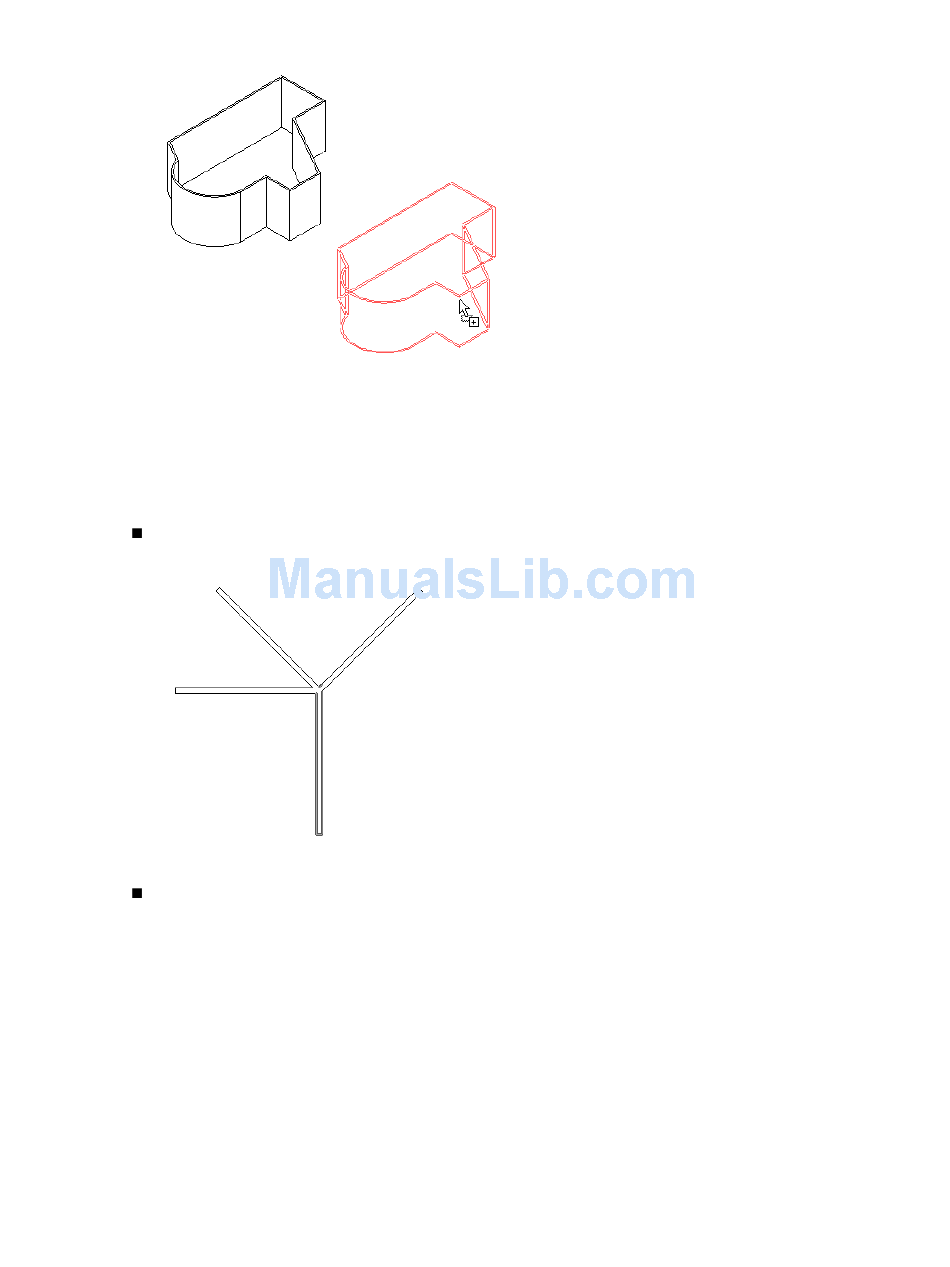

Copying a wall chain in a 3D view

Selecting Walls or Lines Joined at a Point

When multiple walls or lines are joined at a common point, you can use TAB to select multiple elements, as
follows:
Place the cursor on or near one wall or line, and click to select it.
Press TAB. Revit Architecture highlights the second wall or line that is closest to the cursor. For example,
in the following example, the cursor is positioned on the right side of the lower wall. If you want to
select these 2 walls or lines, click to select them.
276 | Chapter 7 Editing Elements
