Removing The Color Scheme Display; Color Scheme Legend - Autodesk 24000-000000-9860 - Revit Architecture - PC User Manual

2 In the Edit Color Scheme dialog, select the option Include Rooms/Areas from linked files, and
3 Click View menu
4 Click the Revit Links tab.
5 Select the linked model to apply a color scheme to, and click the button in the Display Settings
6 Select By Linked View or Custom.
7 If you select Custom, for Color Fill, select By Linked View.
8 For Linked View, select the view to apply the color scheme to.
9 Click OK.
For more information about visibility of linked Revit models, see
1218.

Removing the Color Scheme Display

1 In the Project Browser, right-click the view for which you want to remove the color scheme
2 In the Element Properties dialog, click the value box for the Color Scheme parameter.
3 In the Edit Color Scheme dialog, select (none) from the list, and click OK.
4 Click OK to exit the Element Properties dialog.
You can also remove the color scheme display by selecting the color scheme legend in the drawing area,
and on the Options Bar, clicking Edit Color Scheme. In the Edit Color Scheme dialog, select (none), and
click OK.

Color Scheme Legend

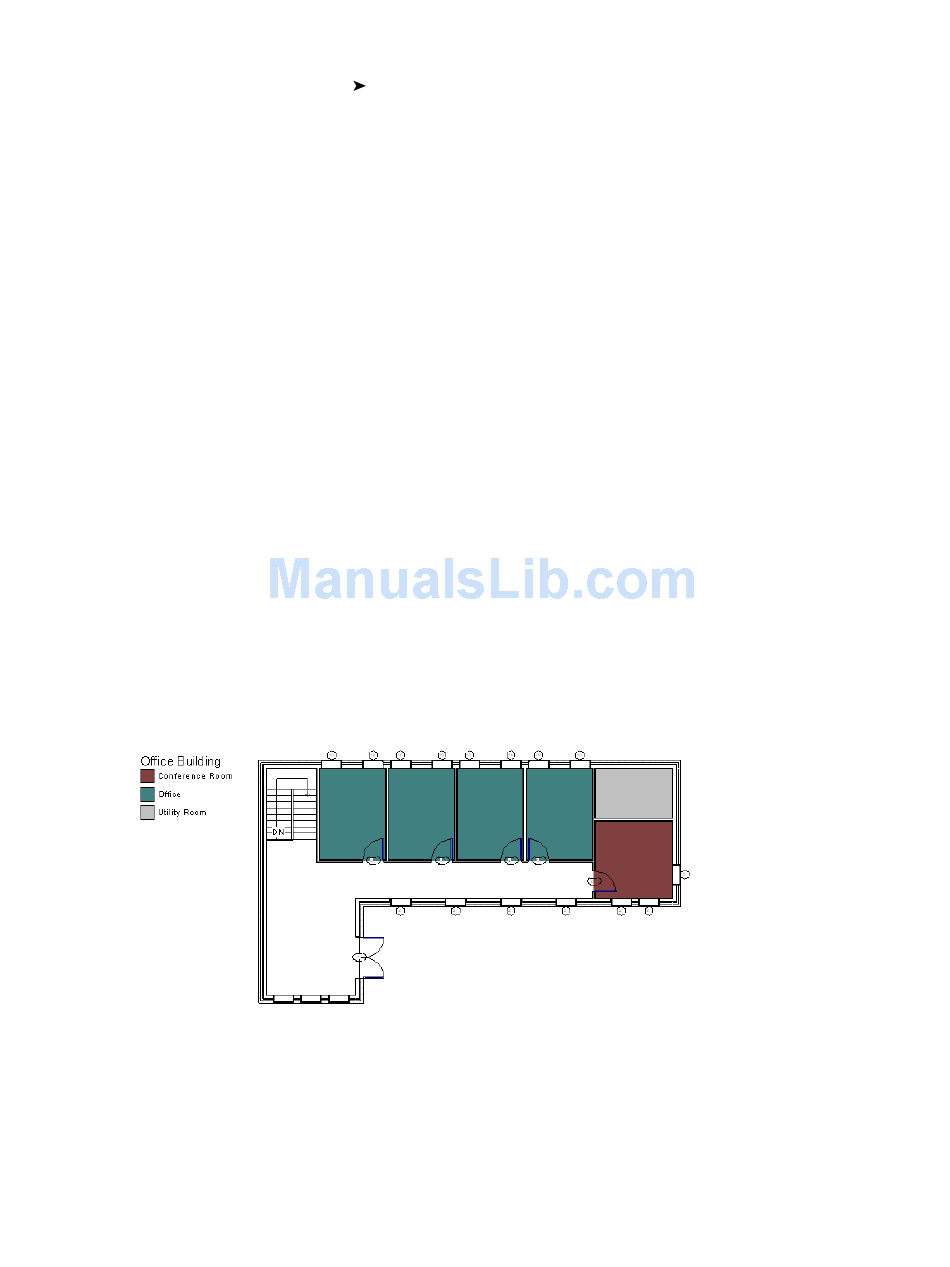

Color schemes color rooms and areas in a floor plan or section view by values that you define. You can add
a color scheme legend to the colored view to identify what the colors represent.
Color scheme legends can be placed anywhere in the floor plan. Multiple color scheme legends can be placed
in a view, or you can apply a color scheme to a view and, if you do not want the color scheme legend to
display, you can select it and delete it.
You can resize color scheme legends using drag controls. You can also resize the swatches in the color scheme
legend, show or hide the legend title, modify the order of items in the legend, and modify the graphic
appearance of the swatches.
962 | Chapter 14 Rooms and Areas
click OK.
Visibility/Graphics.
column.
display, and select Properties.
Visibility for Linked Revit Models on page
