Look Tool
The Look tool rotates the view horizontally and vertically around a fixed point.
With the Look tool, you can rotate the current view vertically and horizontally. When rotating the view,
the model is rotated around a fixed point defined by the center of the current view. The Look tool can be
compared to you standing in a fixed location, and looking up and down while rotating left to right around
a fixed point.

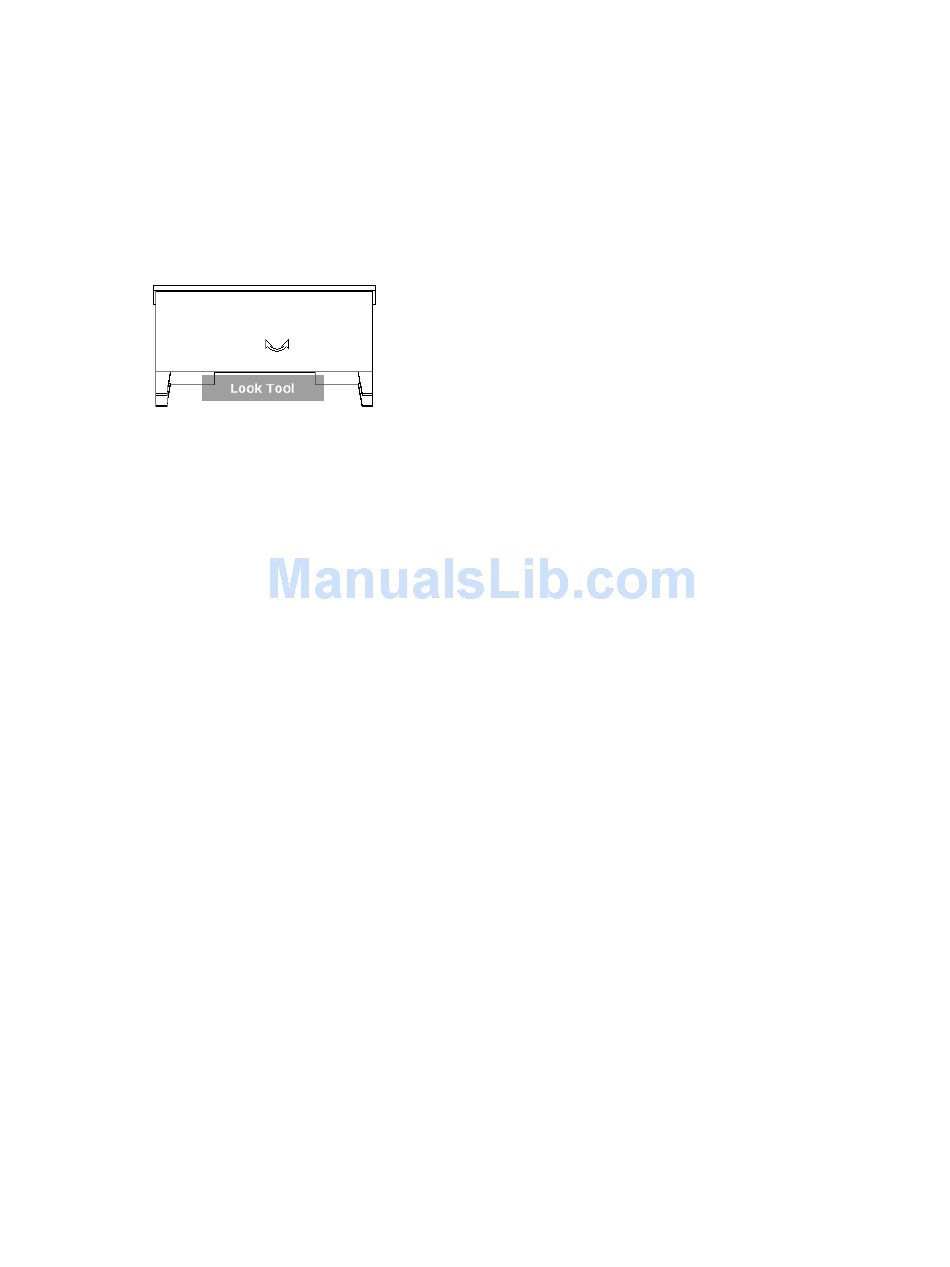

When using the Look tool, you adjust the view of the model by dragging the cursor. As you drag the cursor,
the cursor icon changes to the Look cursor and the model rotates around the location of the current view.
Walking through a Model
When using the Look tool from the Full Navigation wheel, you can walk through a model by using the
arrow keys on the keyboard. The walk speed is defined using the same settings as the
To set the walk speed, you use the SteeringWheels Options dialog box.
Invert Vertical Axis
When you drag the cursor upward, the target point of the view raises; dragging the cursor downward lowers
the target point of the view. If you do not like this behavior you can change it so moving the cursor upward
lowers the target point of the view and downward raises the target point of the view. To invert the vertical
axis for the Look tool, you use the SteeringWheels Options dialog box.
To look around the view
1 Display a wheel that has the Look tool.
2 Click the Look wedge. Hold down the button on your pointing device.
3 When the Look cursor is displayed, drag the cursor up, down, left, and right to change the direction in
which you are looking.
4 Release the button on your pointing device to return to the wheel.
5 Click Close to exit the wheel.
To look around the view and walk through the model
1 Display the Full Navigation wheel.
2 Click the Look wedge. Hold down the button on your pointing device.
3 When the Look cursor is displayed, drag the cursor up, down, left, and right to change the direction in
which you are looking.
4 While holding down the button on your pointing device, press the arrow keys to walk in the model.
5 Release the button on your pointing device to return to the wheel.
Walk tool on page 190.
SteeringWheels | 185
