Modifying Braces

Controlling Brace Attachments

After adding a brace element, you can modify the brace Properties to control how the brace maintains
position along a beam. Each brace endpoint can be maintained positionally with a beam by either a Distance
or a length Ratio from the beam end points. If you modify the position or length of the attached beam, the
brace adapts to the change, depending on the brace settings you select.
Brace Property Terminology
Start Attachment Type
Start Attachment Distance or Ratio
End of Referenced Element
End Attachment Type
End Attachment Distance or Ratio
End of Reference Element

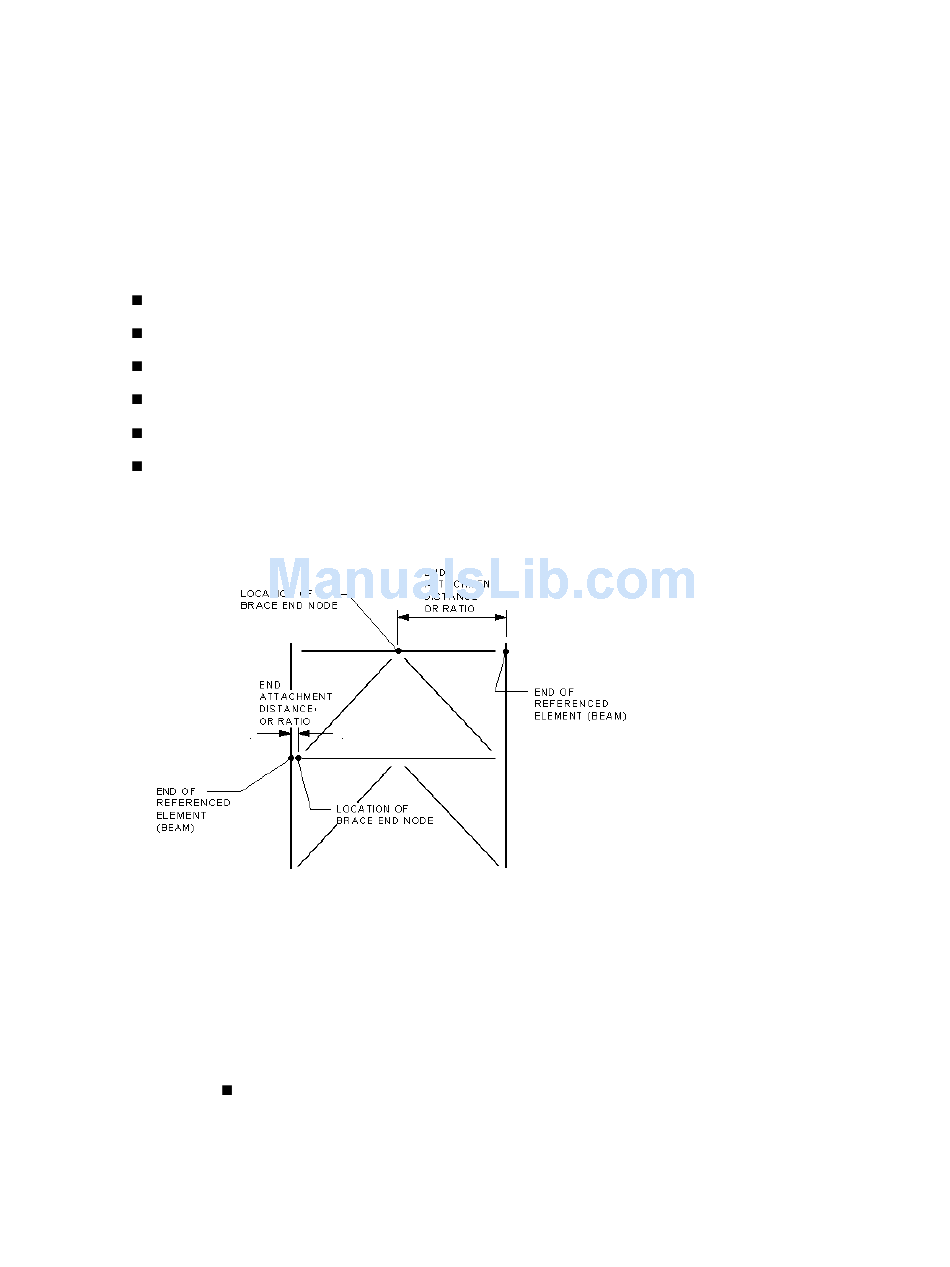

Brace attachment properties
To modify brace properties
1 Select a brace.
2 On the Options Bar, click the Properties button.
To specify attachment parameters
3 In the Element Properties dialog, under Structural, select one of the following Start Attachment
Type options.
Distance: If the brace start point is placed on a beam, this value specifies the distance between
the nearest end of the beam and the brace start point.
Modifying Braces | 831
