Job Card PM A300 - 21-inch 3MP Monitor Luminance Checks
4 APPLICABILITY
The Job Card must be applied during the planned maintenance visit on systems containing the optional
21-inch 3MP Monitor (P/N 5350390).
5 SAFETY PRECAUTIONS
None
6 PREREQUISITES
The 21-inch 3MP Monitor has already been installed and configured to use 1 - DICOM mode and the
maximum luminance is 400 cd/m² according to
ELE A008 - Configuring the 21-inch 3MP
7 PROCEDURE
7-1 Install Test Images
1. Insert the Test Pattern CD-ROM into the DVD-ROM drive of the ADS Computer.
2. In the Browser, click the CDR read/write icon and select Query from the menu that appears.
A Media Browser:CDR window appears.
e

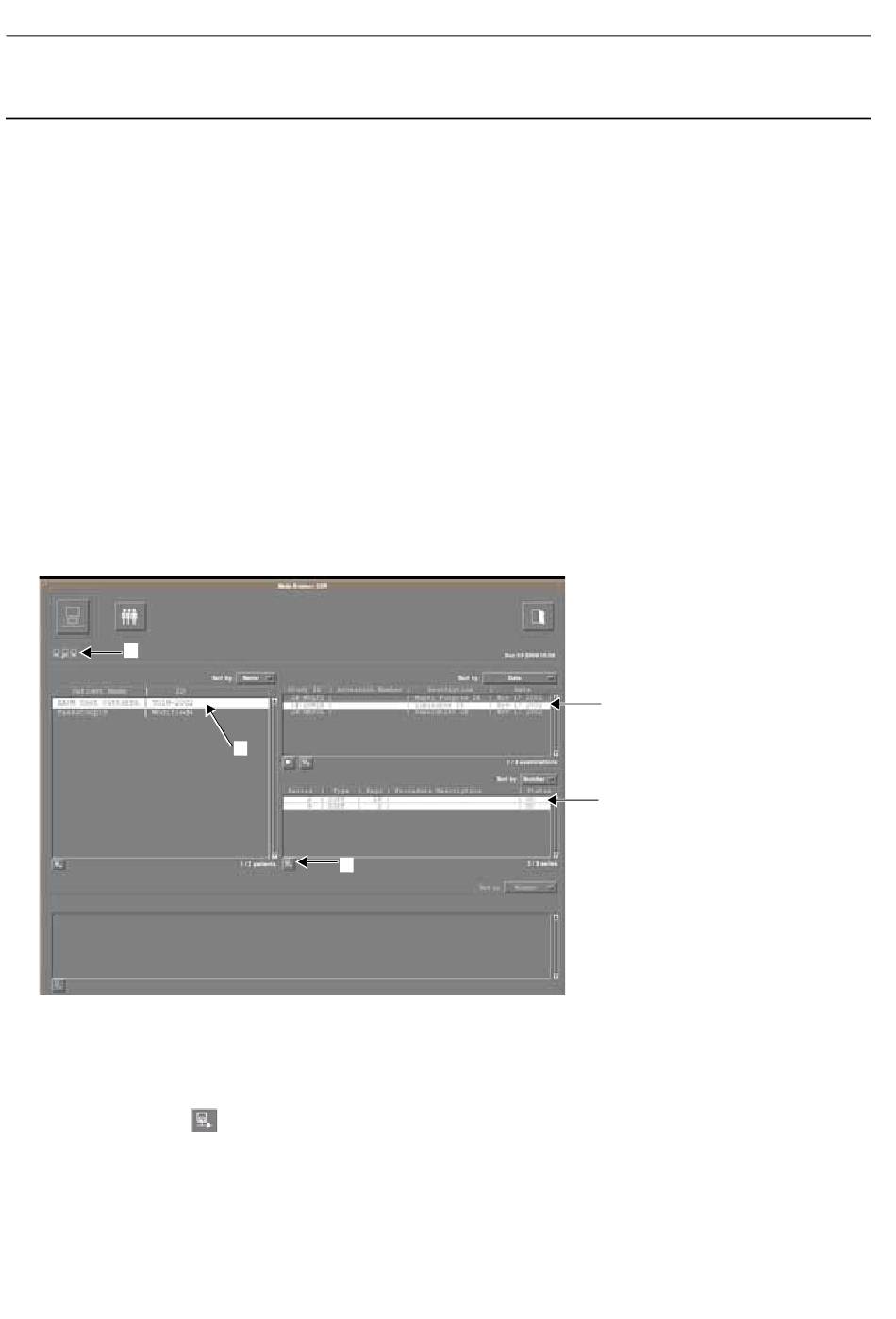

3. From the Media Browser:CDR window:
a. Select the AAPM Test Patterns patient.
b. Select the 1K-LUMIN Study ID.
c. Select both the 2 and 4 Series (use the Control key to select both Series).
d. Click the Disk
e. The test patterns from the Test Pattern CD-ROM are transferred to the patient list on the ADS
Computer. During this transfer time, an animated data transfer icon towards of the top left of the
Media Browser:CDR window appears. When the transfer of the test patterns is complete, the data
transfer icon disappears.
Chapter 11
Service Information and Procedures Class A 2385072-16-8EN
Monitor.
a
d
icon under the Series list. From the Restore dialog box that appears, click OK.
