ADC Control Module (ACM)

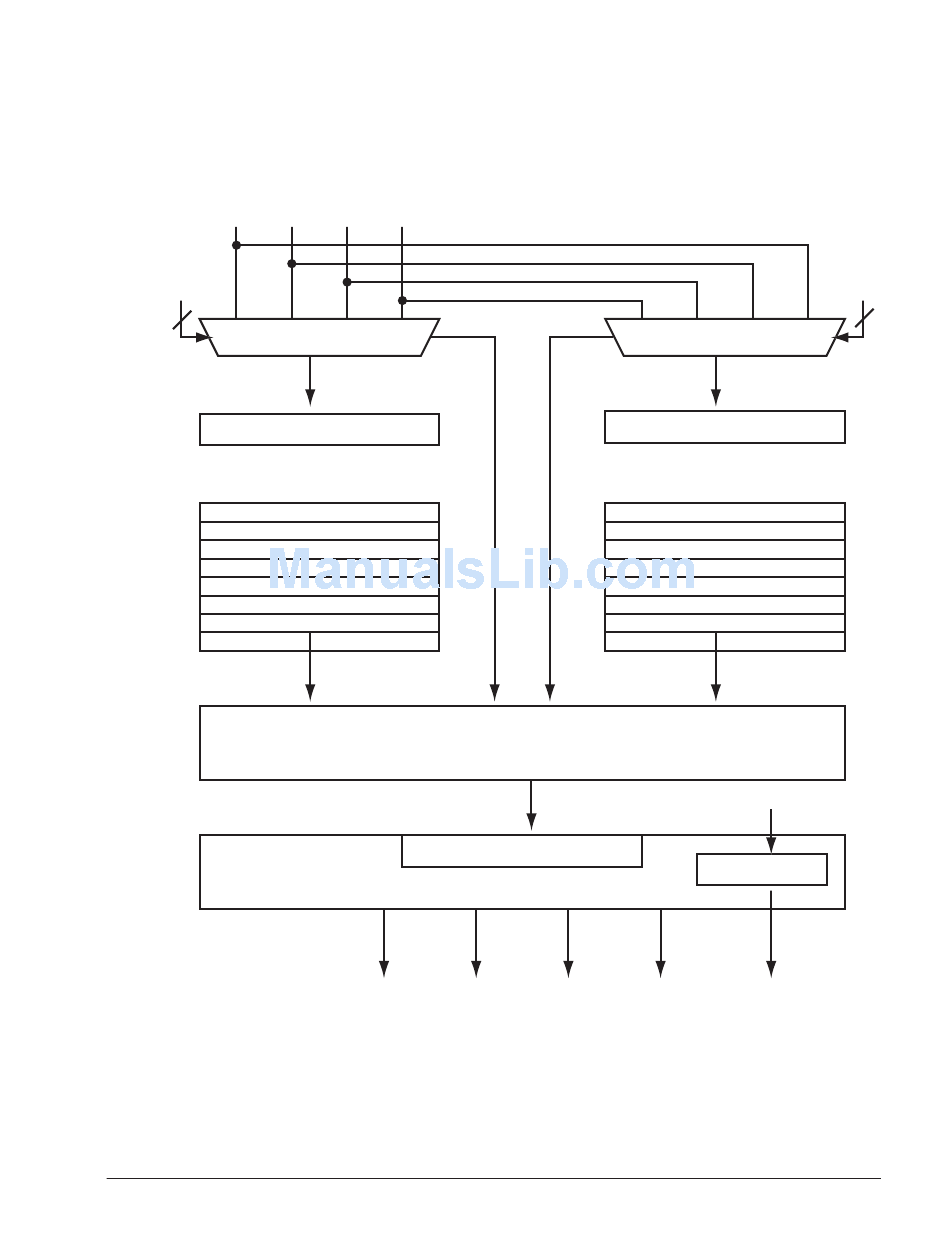

Figure 22-3
shows the ACM Block diagram.
Triggers
TRIG_SEL0
TRIG_SEL1
2
2
ACMTMR1 (32 Bit)
ACMTMR0 (32 Bit)
Event Registers
Event Registers
16 Time Comparators
SCLK
Timing
Pending Event FIFO
Generation
CLK Divider
Unit
A[2:0]
CS
RANGE
SGLDIFF
ACLK
Figure 22-3. ACM Block Diagram
ADSP-BF50x Blackfin Processor Hardware Reference
22-5
