Dimensioning to a Wall Sweep

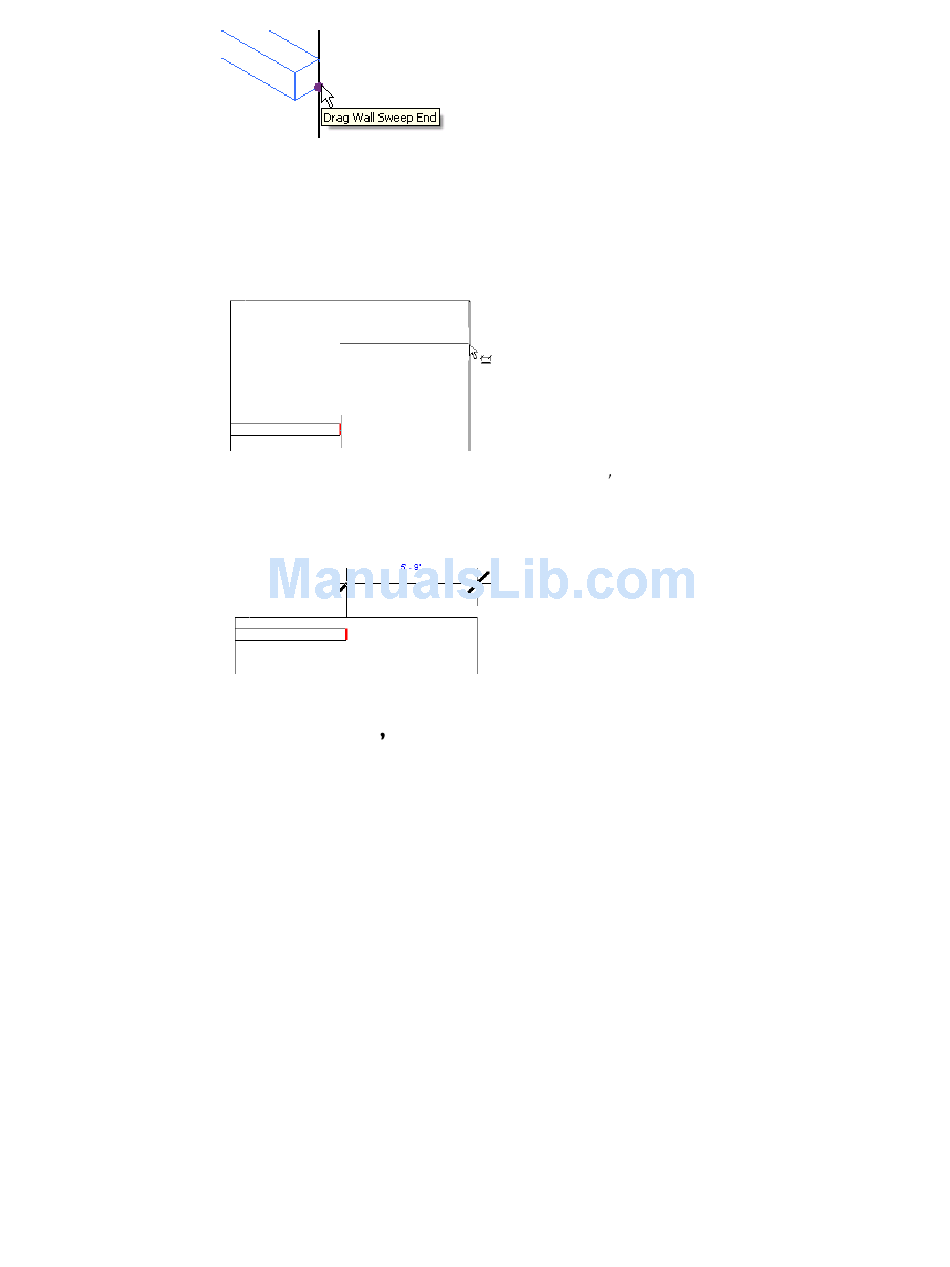

1 Place a dimension between the wall sweep end face reference and another reference.
Dimension references between wall sweep end face and wall
2 To change the dimension value, drag the wall sweep s shape handle.
The dimension value adjusts accordingly.
Selected shape handle on sweep

Changing a Wall Sweep s Horizontal or Vertical Offset

To move a single wall sweep segment
1 Select the segment.
2 Move it up or down (horizontal wall sweeps) or side to side (vertical wall sweeps).
To move a multi-segmented wall sweep
1 Place the cursor over the wall sweep and press TAB to select the shape handle of the wall sweep.
Watch the status bar to know when you are highlighting the shape handle.
2 Click to select the shape handle.
3 Move the wall sweep up or down (horizontal wall sweeps) or side to side (vertical wall sweeps).
This affects the offset of all segments of the wall sweep, so the segments are symmetrical.

Wall Sweep Properties

You can modify several properties for wall sweeps, including profiles and offsets.
Wall Sweeps | 667
