Suzuki SX4 Service Manual page 1170

8B-77 Air Bag System:
Step

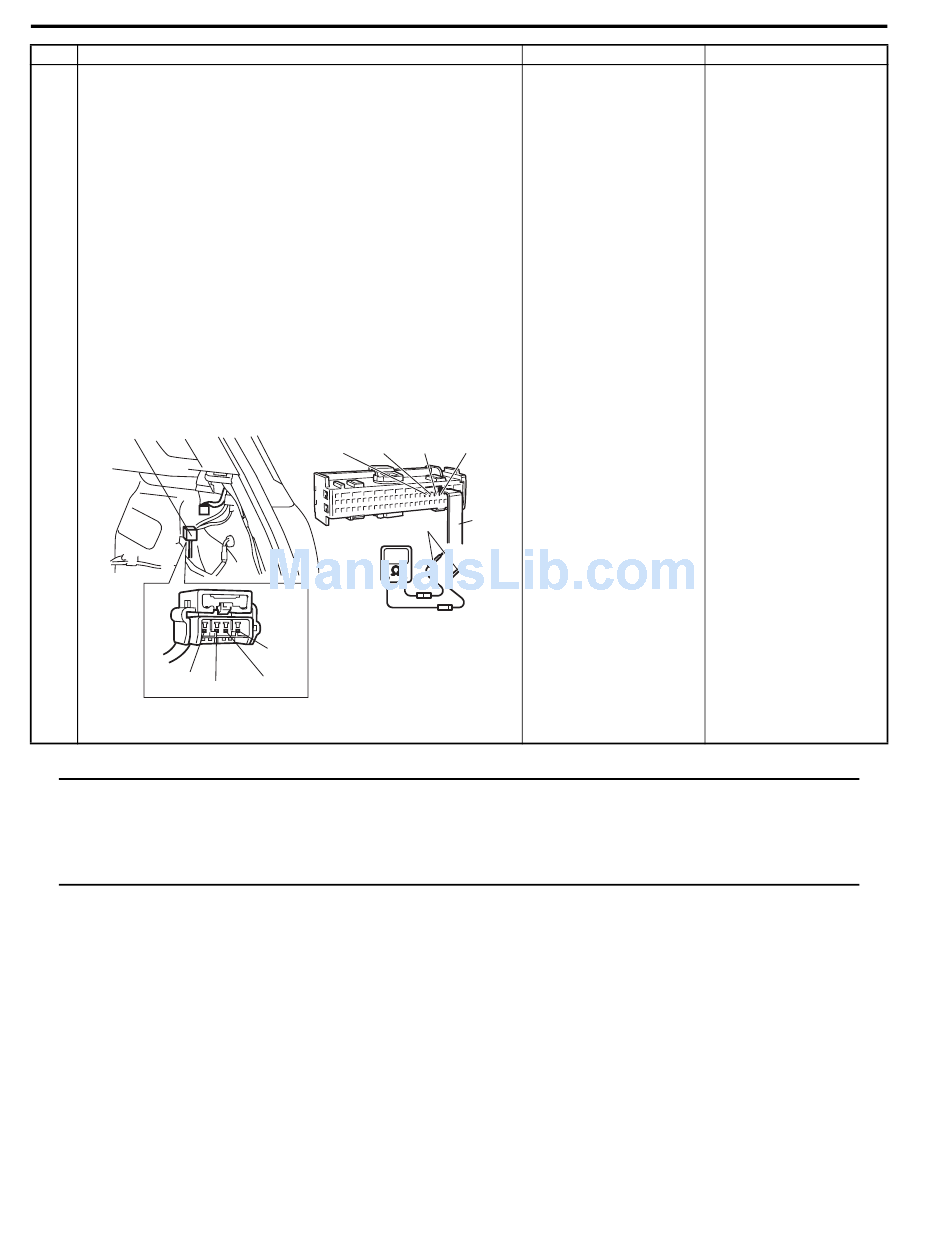

4 Floor harness circuit check (hatchback model)
1) With ignition switch turned OFF, remove rear inner trim
of right side and disconnect "L395" connector.
2) Check for proper connection to applicable side curtain-
air bag at terminal in "L395" connector.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between "L04-19" and "L395-4"
terminals, between "L04-20" and "L395-3" terminals (for
DTC B1361).
5) Measure resistance between "L04-21" and "L395-1"
terminals, between "L04-22" and "L395-2" terminals (for
DTC B1065).
"L395"
"L395-1"
"L395-2"
Is each measured resistance 1
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear DTCs referring to "DTC Clearance", if any.
• Repeat "Air Bag Diagnostic System Check" to confirm that the trouble has been corrected.
Action
"L04-19" "L04-20" "L04-21"
(A)
"L395-4"
"L395-3"
I7RW01822089-01
Ω
or less?
Yes
DTC B1361: Repair
high resistance or open
wire in "YEL/GRN" or
"YEL/BLU" circuit at
driver curtain-air bag
harness.
DTC B1365: Repair
high resistance or open
wire in "BLK/YEL" or
"BRN/YEL" circuit at
passenger curtain-air
bag harness.
"L04-22"
1
No
DTC B1361: Repair
high resistance or open
wire in "YEL/GRN" or
"YEL/BLU" circuit at
floor harness.
DTC B1365: Repair
high resistance or open
wire in "BLK/YEL" or
"BRN/YEL" circuit at
floor harness.
