WARNING
!
• When carrying a live air bag (inflator)
module, make sure the bag opening is
pointed away from you.
Never carry air bag (inflator) module by
wires or connector on the side of the
module. In case of an accidental
deployment, the bag will then deploy with
minimal chance of injury.
• As the live side-air bag (inflator) module
must be kept with its bag (trim cover)
facing up while being stored or left
standing. This is necessary so that a free
space is provided to allow the air bag to
expand in the unlikely event of accidental
deployment.
• Observe "Precautions on Handling and
Storage of Air Bag System Components"
for handling and storing it.
Otherwise, personal injury may result.

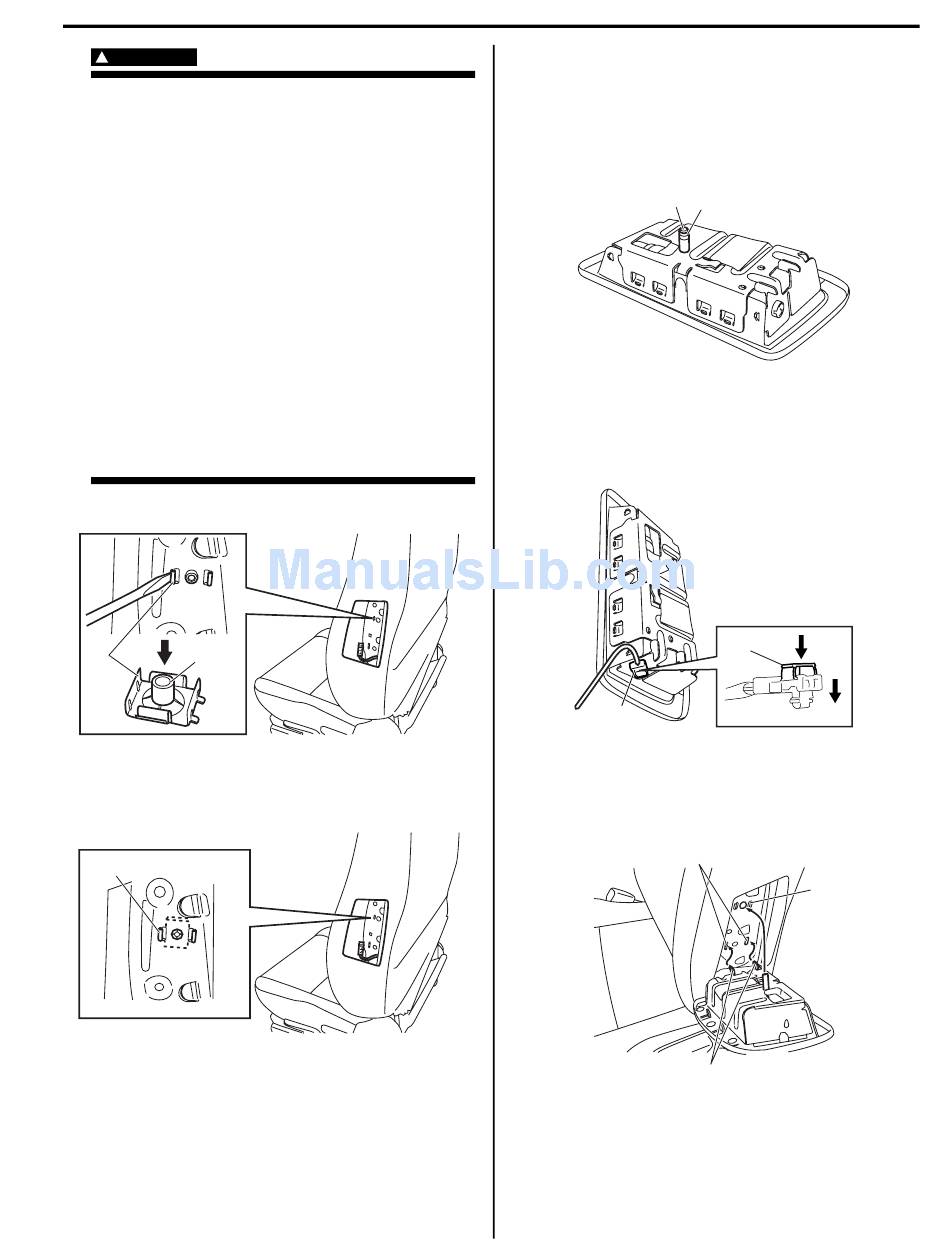

6) Remove fastener (1) with sleeve (2) from seat back.
1
2
Installation
1) Install new fastener (1) to seat back.
1
2) Install new sleeve (1) and sleeve lock nut (2) to side-
air bag (inflator) module, then tighten nut to specified
torque.
Tightening torque
Sleeve lock nut (a): 2.5 N·m (0.25 kgf-m, 2.0 lb-
ft)
3) Connect side-air bag (inflator) module connector (1)
securely as shown in the figure.
a) Connect connector.
b) Lock connector with lock button (2).
I7RW01822147-01
4) Insert claw (1) of side-air bag (inflator) module on
installation hole (2).
5) Install side-air bag (inflator) module by pushing it into
fastener (3) securely.
I7RW01822148-01
6) Roll down backside seat back surface and fix seat
back surface fastener securely.
Air Bag System:
2, (a)
1
2
1
2
1
8B-102
I4RS0A820073-02
b)
a)
I4RS0A820070-01
3
I4RS0A820074-02
