b Create reference planes that can be used to position the candles in place and lock them to
the chandelier.
See Reference Planes
2 For the host chandelier family, define parameters as follows:
a Click Settings Family Category and Parameters.
b In the Family Category and Parameters dialog, under Family Parameters, select Light Source.
c Clear Shared.
d Click OK.

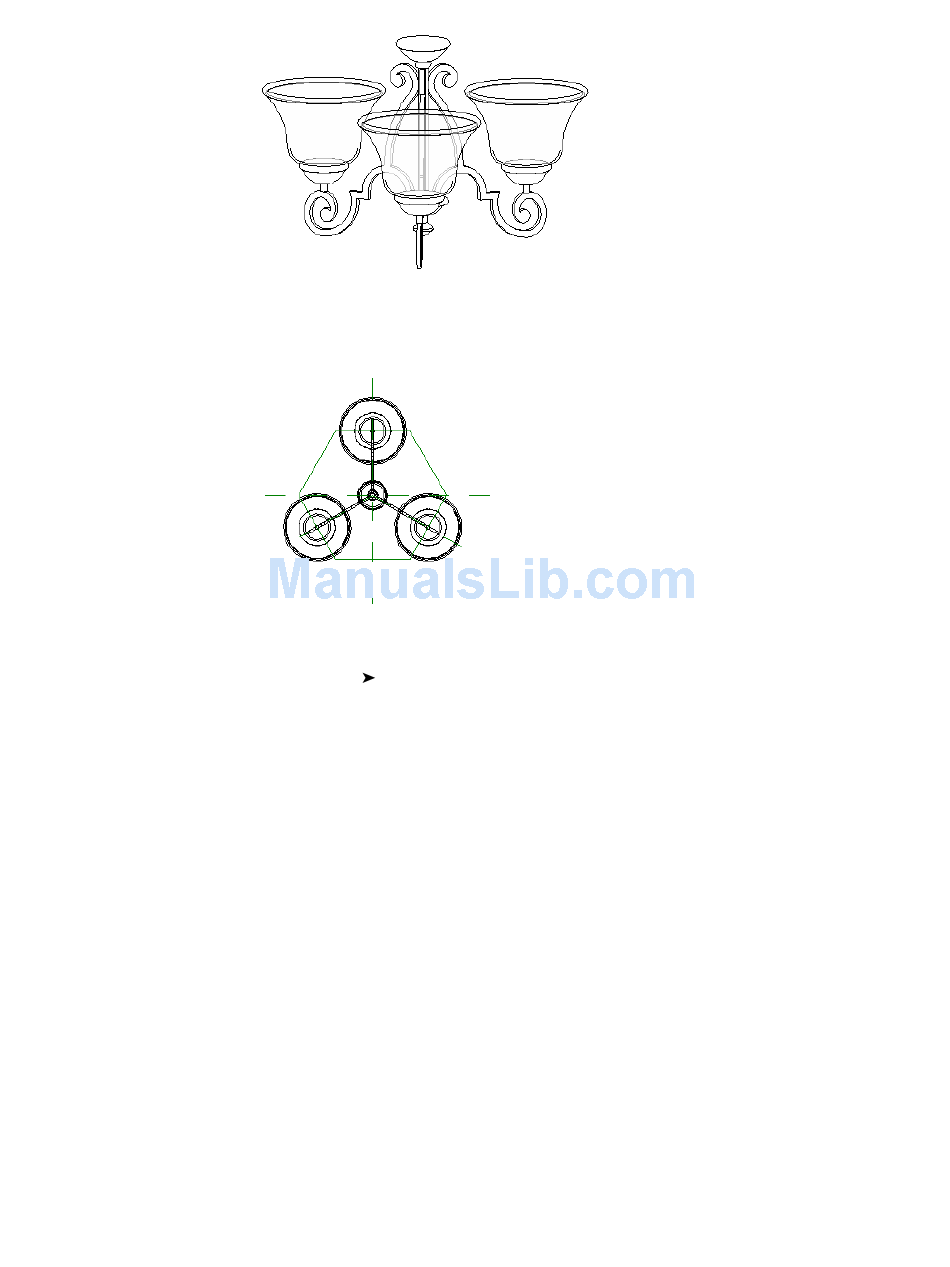

3 In the host chandelier family, create one candle (light source) as follows:
a Create geometry for the candle.
b Put the candle in the desired position on the chandelier, and lock it in place.
c Define the geometry of the light source.
See Defining the Geometry of a Light Source
d Define its parameters.
See Defining Parameters for Lighting Fixtures and Light Sources
e In the drawing area, move the light source symbol to align it with the candle as appropriate,
and lock it in place.
4 Create a lighting fixture family to represent a candle of the chandelier, as follows:
on page 1046.
on page 1117.
Creating and Modifying Lighting Fixtures | 1111
on page 1118.
