5 Optionally, click View Range and modify the View Depth setting if necessary. The level you
6 Click OK to exit the Element Properties dialog.

Plan View Properties

Each plan view has type properties for callout tags and reference labels. The reference label parameter sets
the text displayed in a callout tag when a reference callout is made to the plan view. You can define the
look of callout tags using the Settings menu
See View Properties

Displaying a Plan View

Double-click its name in the Project Browser.
If the view is open but hidden behind another view, click Window menu

Plan Region

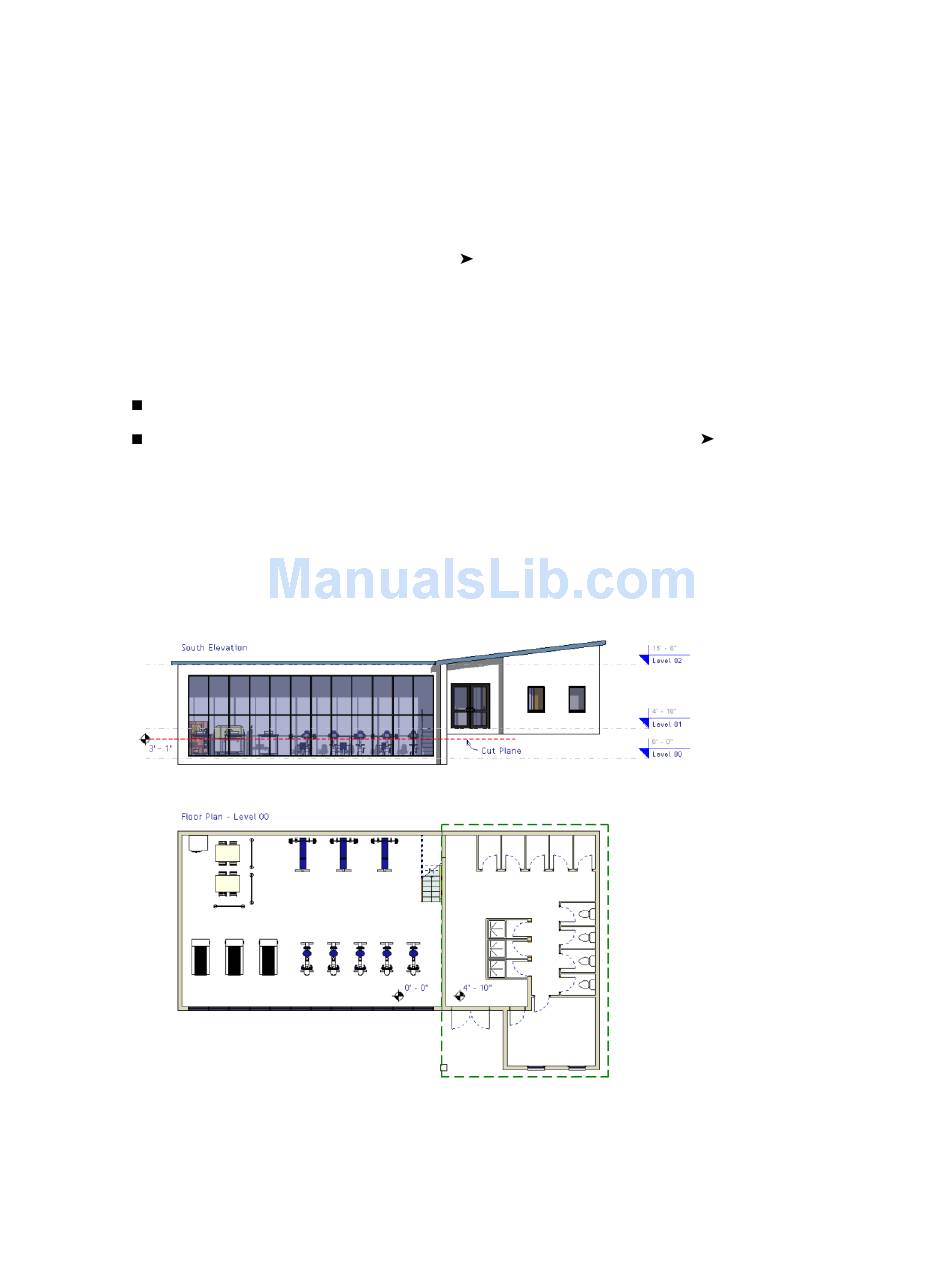

The Plan Region command lets you define a region within a plan view that has a different view range from
the overall view. Plan regions are useful for split level plans or for displaying inserts above or below the cut
plane. Plan regions are closed sketches and cannot overlap one another. They can have coincident edges.
Plan regions are view-specific. You can copy and paste them into the same view or different views. When
you copy a plan region into a different view, the view range settings are maintained from the previous view.
Plan regions export and print when they are visible in a view.
select for View Depth is where the view will be clipped when the Depth Clipping property is
active.
on page 210.
View Tags command.
<view name>.
Plan View Properties | 83
