Drawing Area

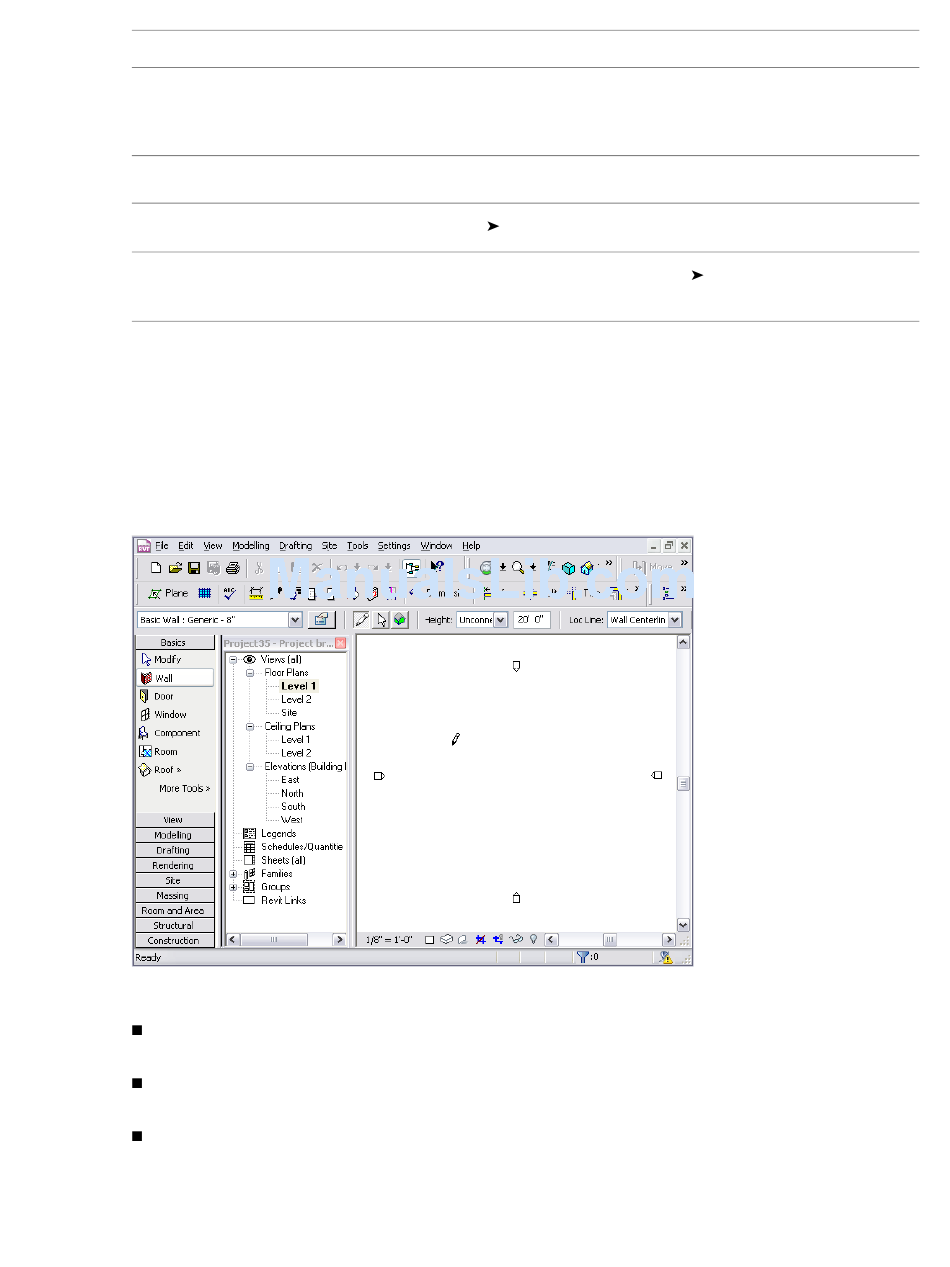

The drawing area of the Revit window displays views (and sheets and schedules) of the current project. Each
time you open a view in a project, by default the view displays in the drawing area on top of other open
views. The other views are still open, but they are underneath the current view. Use commands of the
Window menu to arrange project views to suit your work style.
The default color of the drawing area background is white; you can invert the color to black.
To manage views in the drawing area
To display a project view that has not yet been opened, navigate to the view in the Project Browser, and
double-click the view name.
To see a list of open views, click the Window menu. The bottom of the menu lists the open views. A
check mark indicates the view that currently has focus in the drawing area.
To display another open (but hidden) view in the drawing area, click the Window menu and click the
view to display, or double-click the view name in the Project Browser.
60 | Chapter 3 Revit Essentials
then...
under Revit Links, navigate to the linked model, right-click the link name, and
click the desired command to unload or reload the model. See
on page 1222.
under Views Renderings, double-click the image to view.
drag the rendered image name (under Views
the drawing area.
Managing Links
Renderings) onto the sheet in
