Adding Doors

1 Click Home tab
2 Click Place Door tab
3 On the Options Bar, select Tag on Placement to tag the door automatically. To include a tag
4 Move your cursor over a wall.
5 Click to place the door in the desired spot in the wall.
Related topics

Changing the Door Type

Modifying the Door Position
Door Properties
Doors on page 797

Door Tags

Door tags are displayed only if the entire door is visible. If the door is partially obscured, the door tag is not
visible.
As you place doors of the same type, the door number in the tag increases. This also applies if you copy and
paste doors; the tag number increases to show how many doors you have placed.
Changing the Door Type
1 Select the door in the project view.
798 | Chapter 13 Architectural Design
Build panel
Element panel, and select a door type from the Type Selector drop-down.
NOTE At this point you can load additional door types, if necessary. Click Place Door tab
panel Load Family, and navigate to the family file.
leader, select Leader and specify the length.
To load additional tags, click Tags. For more information, see
When placing the door in plan view, press the space bar to flip the door swing.

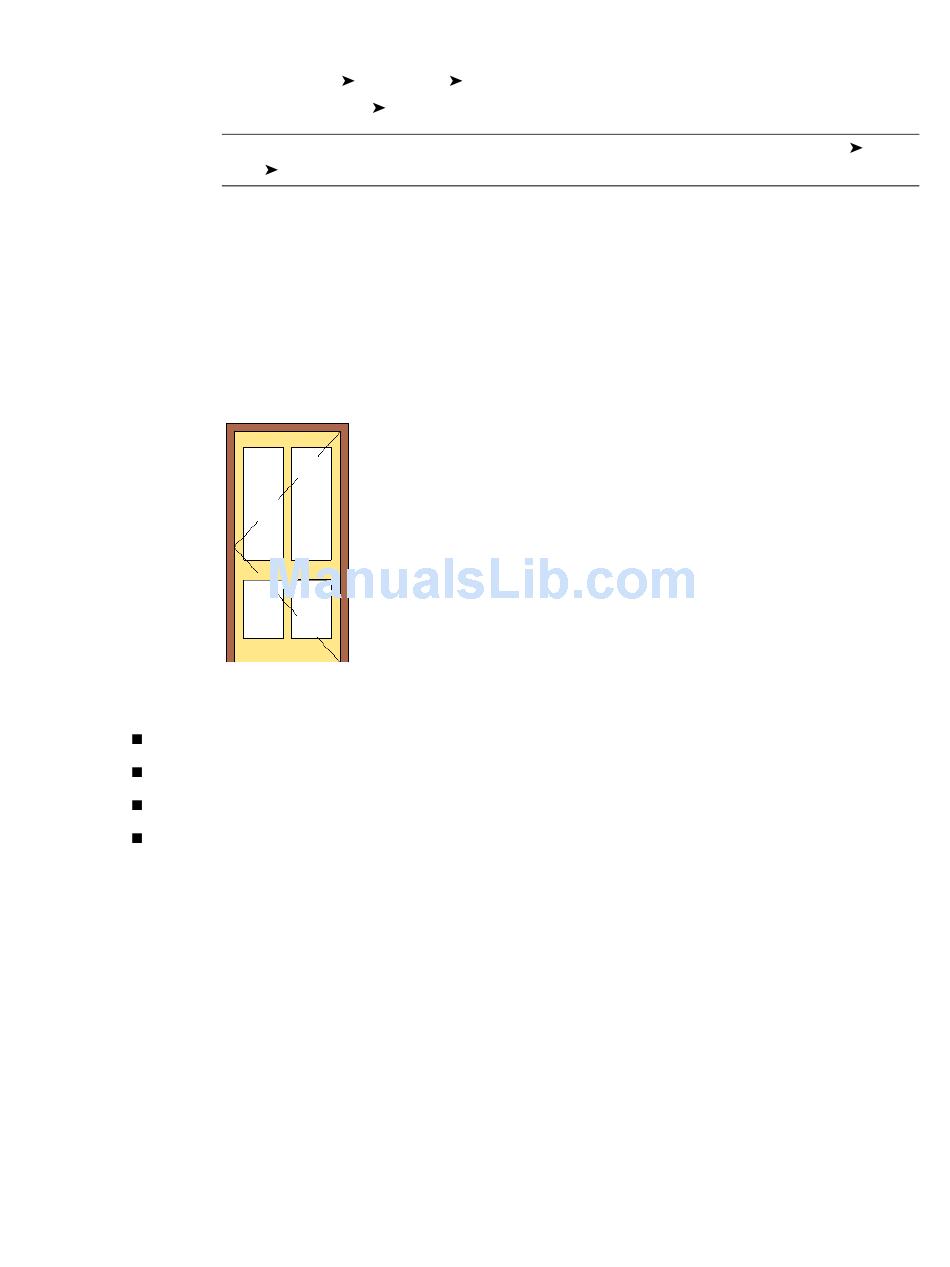

Finished door in
elevation
on page 798
on page 799
on page 799
Door.
Loading Tag Styles on page 501.
Model
