Advanced-control timers (TIM1/TIM8/TIM20)

PWM edge-aligned mode

Upcounting configuration

Upcounting is active when the DIR bit in the TIMx_CR1 register is low. Refer to the

Upcounting mode on page

In the following example, we consider PWM mode 1. The reference PWM signal

tim_ocxref is high as long as TIMx_CNT < TIMx_CCRx else it becomes low. If the

compare value in TIMx_CCRx is greater than the auto-reload value (in TIMx_ARR)

then tim_ocxref is held at '1'. If the compare value is 0 then tim_ocxref is held at '0'.

Counter register

Downcounting configuration

Downcounting is active when DIR bit in TIMx_CR1 register is high. Refer to the

Downcounting mode on page 1053

In PWM mode 1, the reference signal tim_ocxref is low as long as

TIMx_CNT > TIMx_CCRx else it becomes high. If the compare value in TIMx_CCRx is

greater than the auto-reload value in TIMx_ARR, then tim_ocxref is held at '1'. 0%

PWM is not possible in this mode.

PWM center-aligned mode

Center-aligned mode is active when the CMS bits in TIMx_CR1 register are different from

'00' (all the remaining configurations having the same effect on the tim_ocxref/tim_ocx

signals). The compare flag is set when the counter counts up, when it counts down or both

when it counts up and down depending on the CMS bits configuration. The direction bit

shows some edge-aligned PWM waveforms in an example where

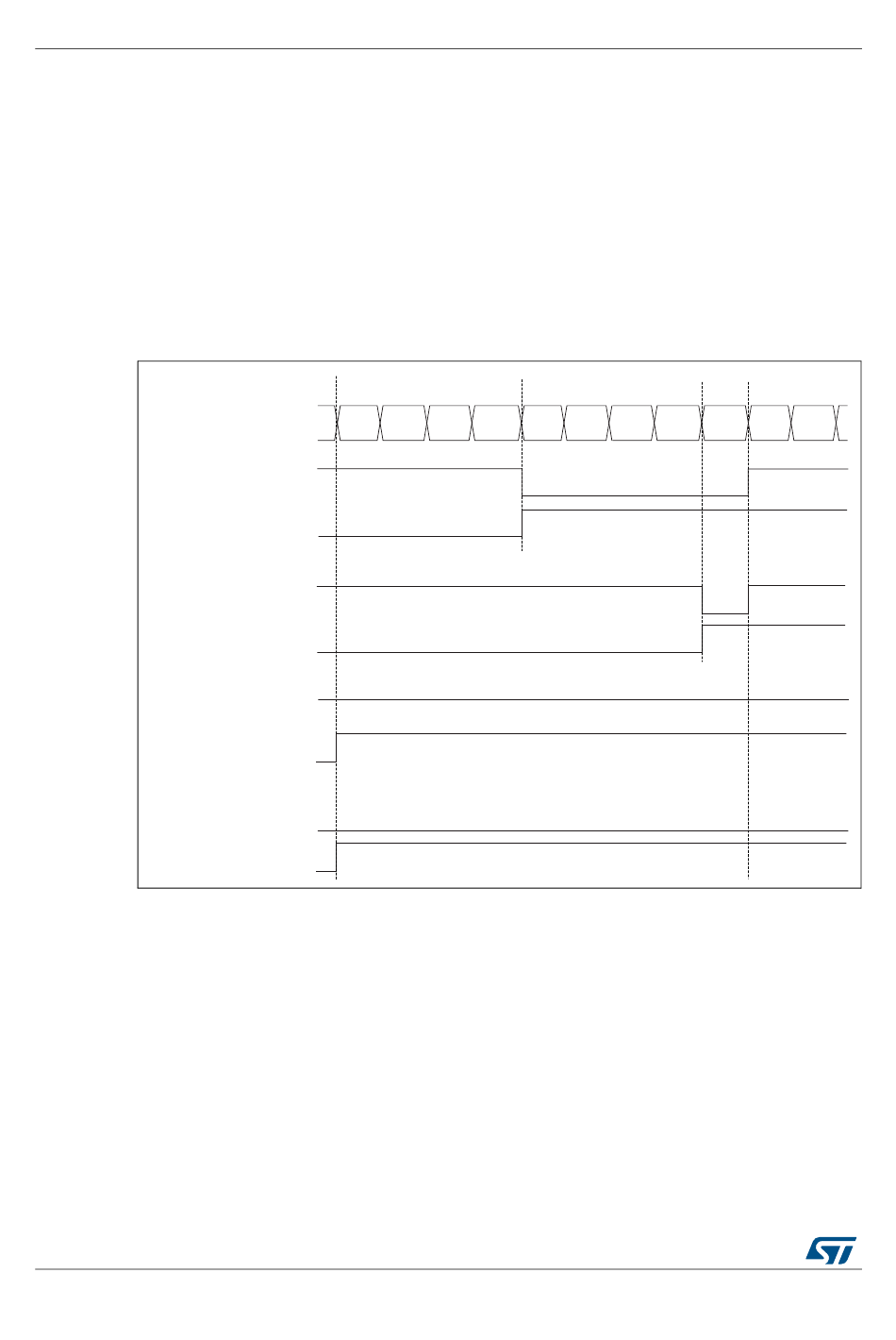

Figure 299. Edge-aligned PWM waveforms (ARR=8)
