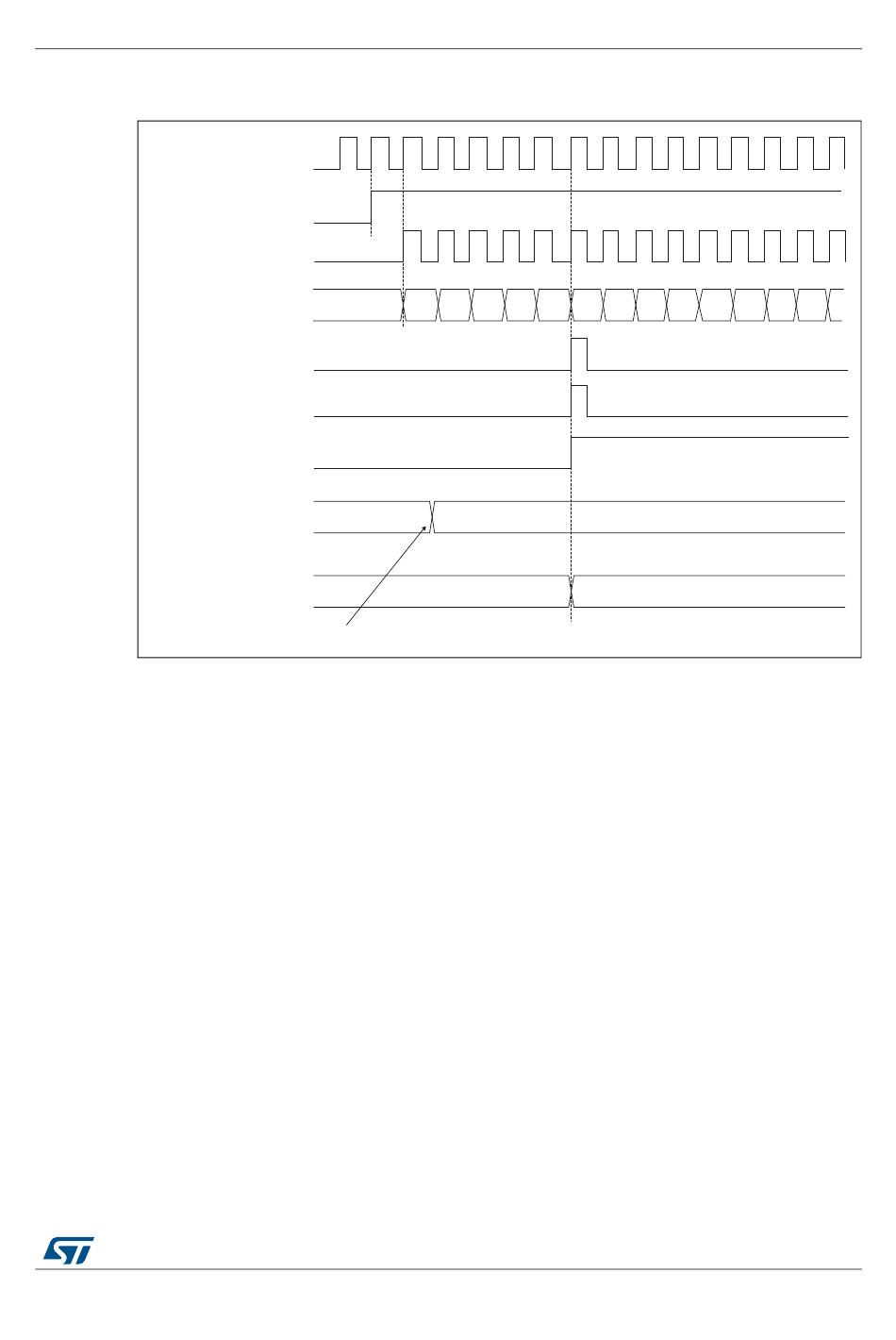

Figure 363. Counter timing diagram, Update event when ARPE=1 (TIMx_ARR

Counter register

Counter overflow

Update event (UEV)

Update interrupt flag

Auto-reload preload

Auto-reload shadow

Write a new value in TIMx_ARR

Downcounting mode

In downcounting mode, the counter counts from the auto-reload value (content of the

TIMx_ARR register) down to 0, then restarts from the auto-reload value and generates a

counter underflow event.

An Update event can be generate at each counter underflow or by setting the UG bit in the

TIMx_EGR register (by software or by using the slave mode controller)

The UEV update event can be disabled by software by setting the UDIS bit in TIMx_CR1

preload registers. Then no update event occurs until UDIS bit has been written to 0.

However, the counter restarts from the current auto-reload value, whereas the counter of the

prescaler restarts from 0 (but the prescale rate doesn't change).

In addition, if the URS bit (update request selection) in TIMx_CR1 register is set, setting the

UG bit generates an update event UEV but without setting the UIF flag (thus no interrupt or

DMA request is sent). This is to avoid generating both update and capture interrupts when

clearing the counter on the capture event.

General-purpose timers (TIM2/TIM3/TIM4/TIM5)

RM0440 Rev 1
