General-purpose timers (TIM2/TIM3/TIM4/TIM5)
Starting 2 timers synchronously in response to an external trigger
In this example, we set the enable of TIM_mstr when its tim_ti1 input rises, and the enable
of TIM_slv with the enable of TIM_mstr. Refer to
counters are aligned, TIM_mstr must be configured in Master/Slave mode (slave with
respect to tim_ti1, master with respect to TIM_slv):
1. Configure TIM_mstr master mode to send its Enable as trigger output (MMS=001 in the
TIM_mstr_CR2 register).
2. Configure TIM_mstr slave mode to get the input trigger from tim_ti1 (TS=00100 in the
TIM_mstr_SMCR register).
3. Configure TIM_mstr in trigger mode (SMS=110 in the TIM_mstr_SMCR register).
4. Configure the TIM_mstr in Master/Slave mode by writing MSM=1 (TIM_mstr_SMCR
register).
5. Configure TIM_slv to get the input trigger from TIM_mstr (TS=00000 in the
TIM_slv_SMCR register).
6. Configure TIM_slv in trigger mode (SMS=110 in the TIM_slv_SMCR register).
When a rising edge occurs on tim_ti1 (TIM_mstr), both counters starts counting
synchronously on the internal clock and both TIF flags are set.
Note: In this example both timers are initialized before starting (by setting their respective UG
bits). Both counters starts from 0, but an offset can easily be inserted between them by
writing any of the counter registers (TIMx_CNT). One can see that the master/slave mode
insert a delay between CNT_EN and CK_PSC on TIM_mstr.

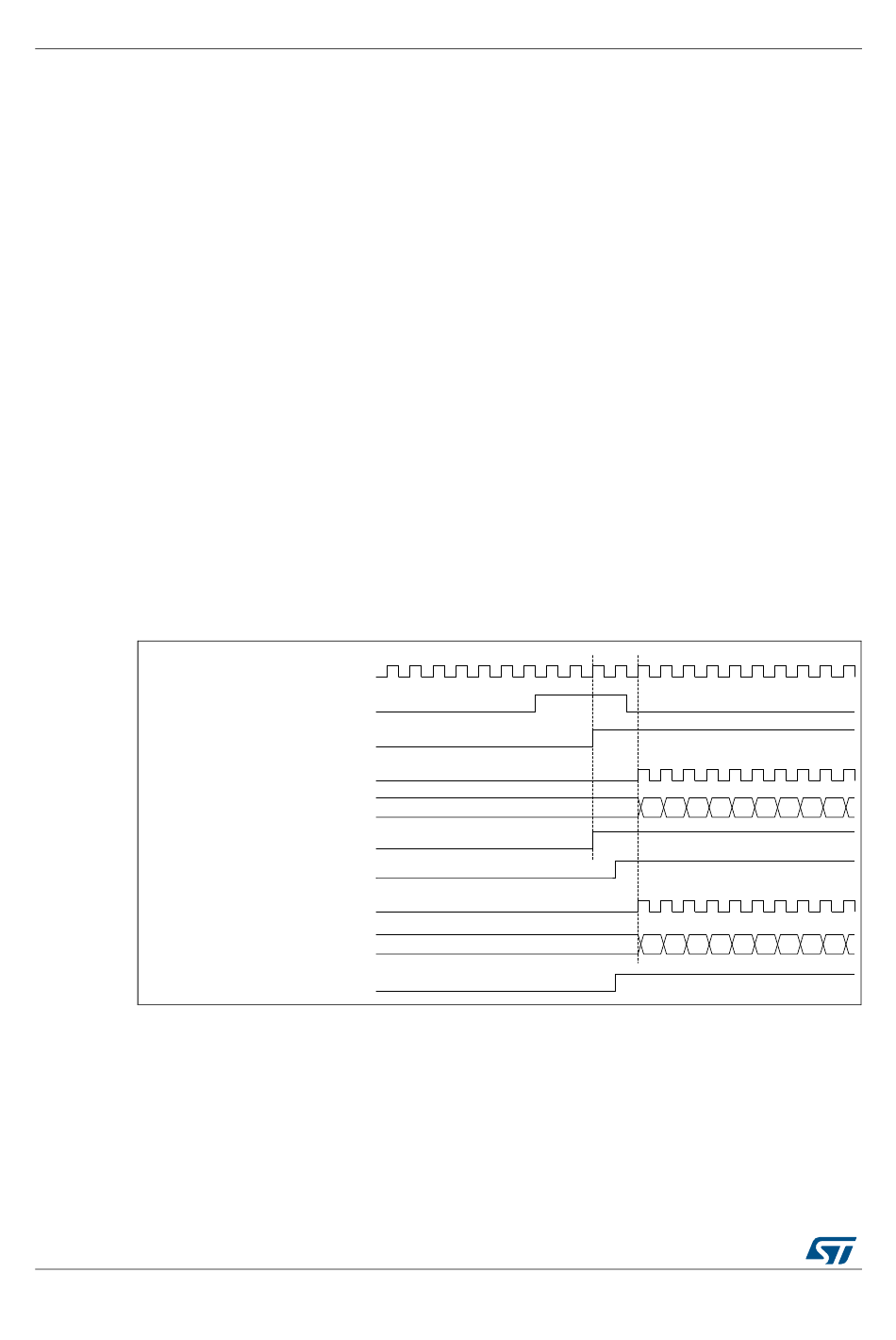

Figure 434. Triggering TIM_mstr and TIM_slv with TIM_mstr tim_ti1 input

TIM_mst counter enable (CEN bit))
TIM_slv counter enable (CEN bit)
Note: The clock of the slave peripherals (timer, ADC, ...) receiving the tim_trgo signal must be
enabled prior to receive events from the master timer, and the clock frequency (prescaler)
must not be changed on-the-fly while triggers are received from the master timer.
28.4.24 DMA burst mode
The TIMx timers have the capability to generate multiple DMA requests upon a single event.
The main purpose is to be able to re-program part of the timer multiple times without
1256/2083
tim_ker_ck
tim_mstr_ti1
tim_mstr_psc_ck
tim_mstr_CNT
tim_mstr TIF bit
tim_slv_psc_ck
tim_slv_CNT
tim_slv TIF bit
RM0440 Rev 1
Figure 429 for connections. To ensure the
00 01 02 03 04 05 06 07 08 09
00 01 02 03 04 05 06 07 08 09
RM0440
MSv62380V1
