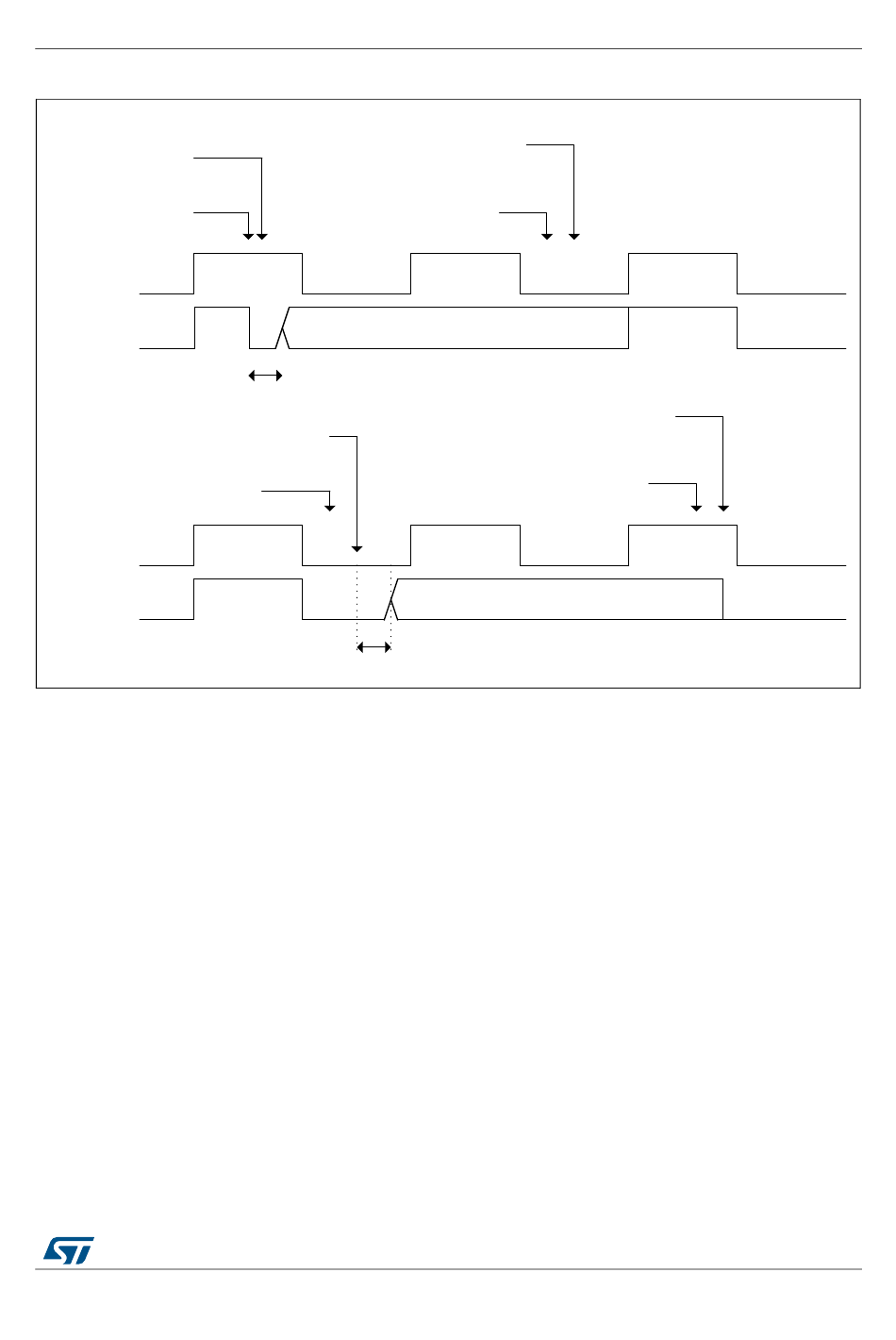

Figure 227. Burst mode and delayed protection priorities (DIDL = 1)

Balanced idle

Only available in push-pull mode, the balanced idle allows to have a balanced pulsewidth on

the two outputs when one of the active pulse is shortened due to a protection. The

pulsewidth, terminated earlier than programmed, is copied on the alternate output, then the

two outputs are put in idle state, until the normal operation is resumed by software. This

mode is enabled by writing x11 in DLYPRT[2:0] bitfield in HRTIM_OUTxR.

This mode is available with only 2 external events:

hrtim_eev6 and hrtim_eev7 for timer A, B and C

hrtim_eev8 and hrtim_eev9 for timer D, E and F

RM0440 Rev 1

High-resolution timer (HRTIM)
