Advanced-control timers (TIM1/TIM8/TIM20)

tim_cnt_ck, tim_psc_ck

Slave mode: Combined reset + trigger mode

In this case, a rising edge of the selected trigger input (tim_trgi) reinitializes the counter,

generates an update of the registers, and starts the counter.

This mode is used for one-pulse mode.

Slave mode: Combined gated + reset mode

The counter clock is enabled when the trigger input (tim_trgi) is high. The counter stops and

is reset) as soon as the trigger becomes low. Both start and stop of the counter are

This mode allows to detect out-of-range PWM signal (duty cycle exceeding a maximum

expected value).

Slave mode: external clock mode 2 + trigger mode

The external clock mode 2 can be used in addition to another slave mode (except external

clock mode 1 and encoder mode). In this case, the tim_etr_in signal is used as external

clock input, and another input can be selected as trigger input (in reset mode, gated mode

or trigger mode). It is recommended not to select tim_etr_in as tim_trgi through the TS bits

of TIMx_SMCR register.

In the following example, the upcounter is incremented at each rising edge of the tim_etr_in

signal as soon as a rising edge of tim_ti1 occurs:

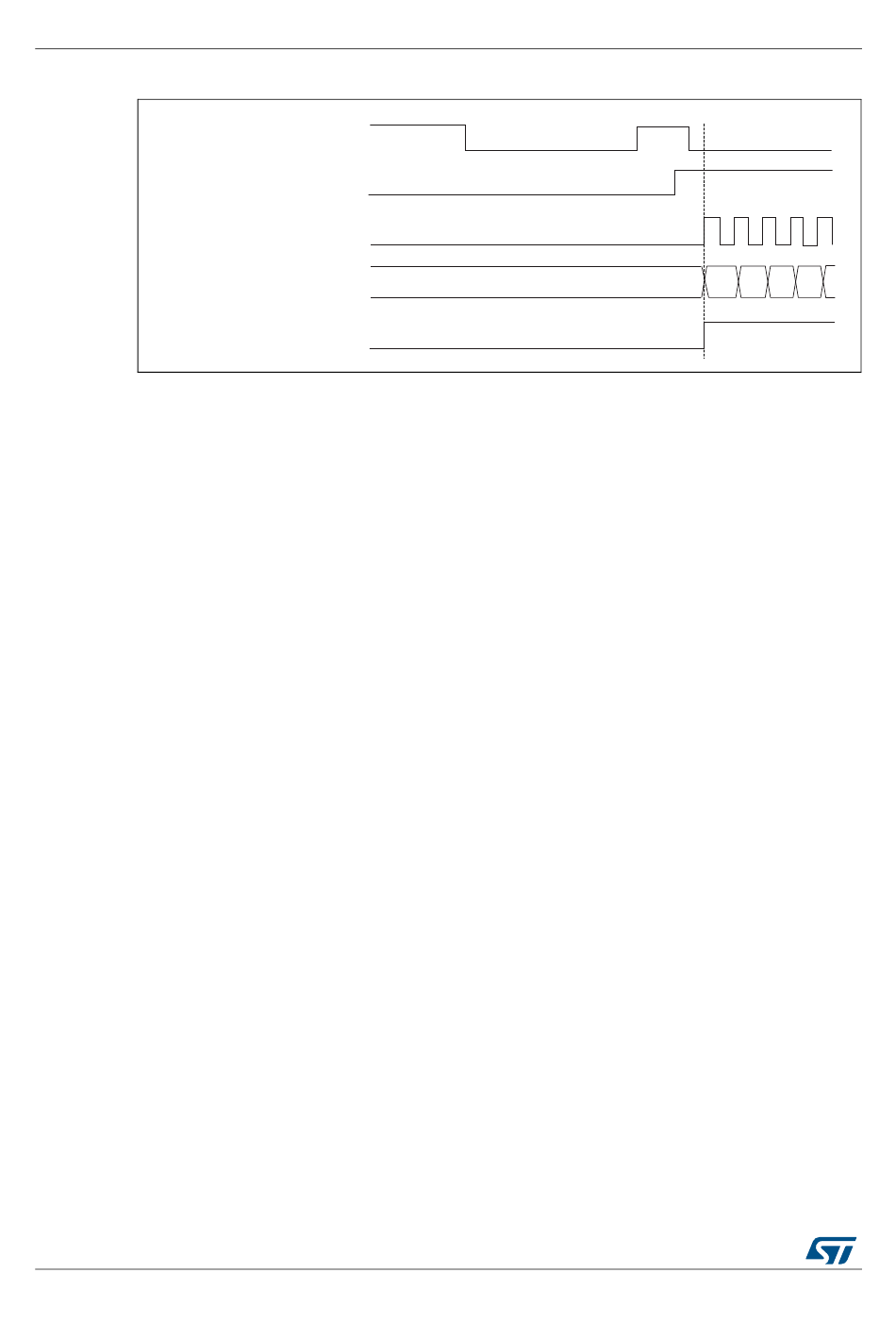

Figure 353. Control circuit in trigger mode

Counter register
