The period and the pulsewidth of a PWM signal applied on tim_ti1 can be measured using

the following procedure:

Select the active input for TIMx_CCR1: write the CC1S bits to 01 in the TIMx_CCMR1

Select the active polarity for tim_ti1fp1 (used both for capture in TIMx_CCR1 and

counter clear): write the CC1P and CC1NP bits to '0' (active on rising edge).

Select the active input for TIMx_CCR2: write the CC2S bits to 10 in the TIMx_CCMR1

Select the active polarity for tim_ti1fp2 (used for capture in TIMx_CCR2): write the

CC2P and CC2NP bits to CC2P/CC2NP='10' (active on falling edge).

Select the valid trigger input: write the TS bits to 00101 in the TIMx_SMCR register

(tim_ti1fp1 selected).

Configure the slave mode controller in reset mode: write the SMS bits to 0100 in the

TIMx_SMCR register.

Enable the captures: write the CC1E and CC2E bits to '1' in the TIMx_CCER register.

Forced output mode

In output mode (CCxS bits = 00 in the TIMx_CCMRx register), each output compare signal

(tim_ocxref and then tim_ocx/tim_ocxn) can be forced to active or inactive level directly by

software, independently of any comparison between the output compare register and the

To force an output compare signal (tim_ocxref/tim_ocx) to its active level, user just needs to

write 0101 in the OCxM bits in the corresponding TIMx_CCMRx register. Thus tim_ocxref is

forced high (tim_ocxref is always active high) and tim_ocx get opposite value to CCxP

polarity bit.

For example: CCxP=0 (tim_ocx active high) => tim_ocx is forced to high level.

The tim_ocxref signal can be forced low by writing the OCxM bits to 0100 in the

TIMx_CCMRx register.

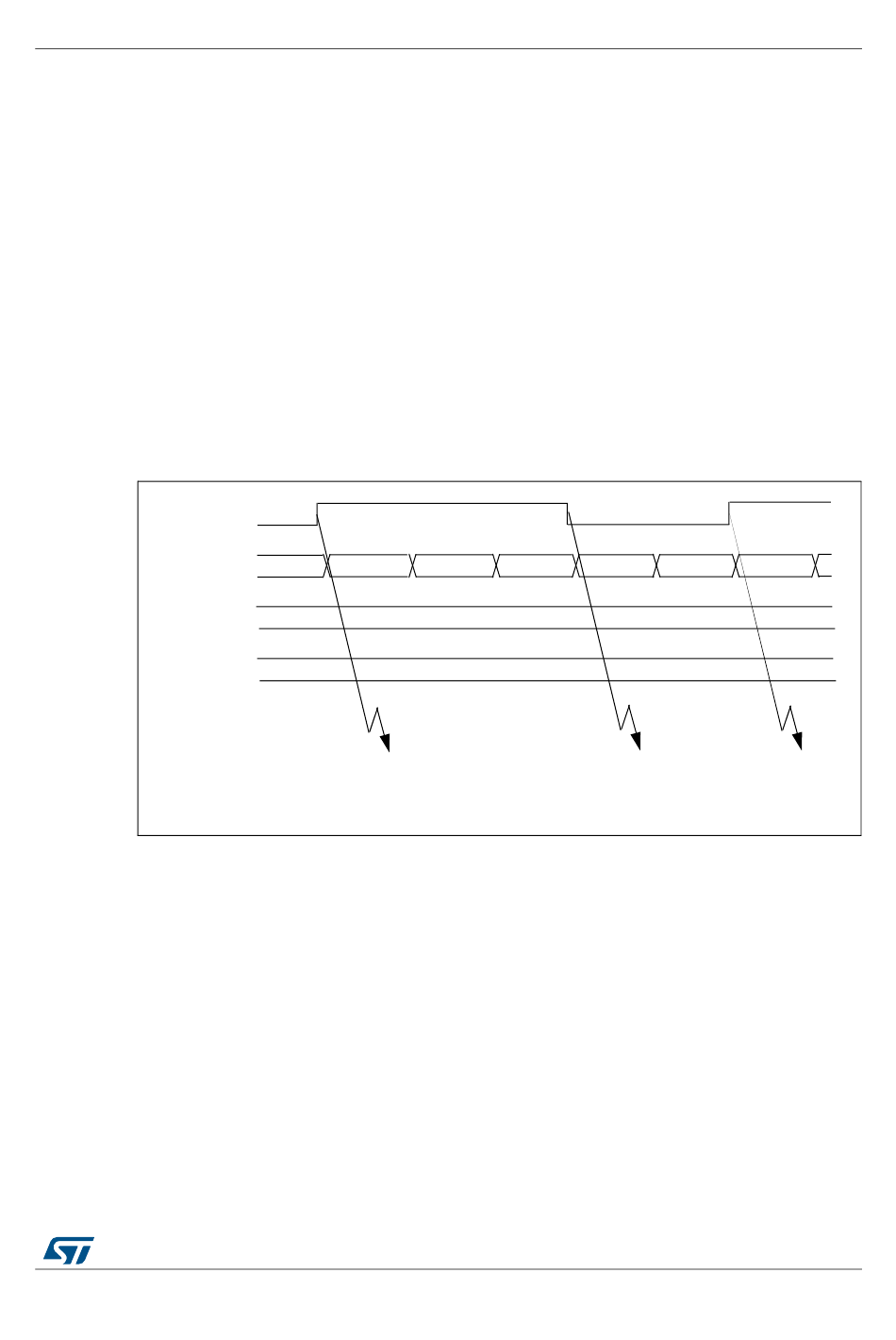

Figure 297. PWM input mode timing

reset counter

Advanced-control timers (TIM1/TIM8/TIM20)

RM0440 Rev 1
