Figure 254. Dac Triggers Overview - ST STM32G4 Series Reference Manual

High-resolution timer (HRTIM)
The Figure 254
Master
DACSYNC DACSYNC
[1:0] [1:0]
dac_trig_out1
DACx
Trigger
26.3.22 Interrupts
7 interrupts can be generated by the master timer:
•
Master timer registers update
•
Synchronization event received
•
Master timer repetition event
•
Master compare 1 to 4 event
902/2083
below provides an overview of all the available DAC triggers.

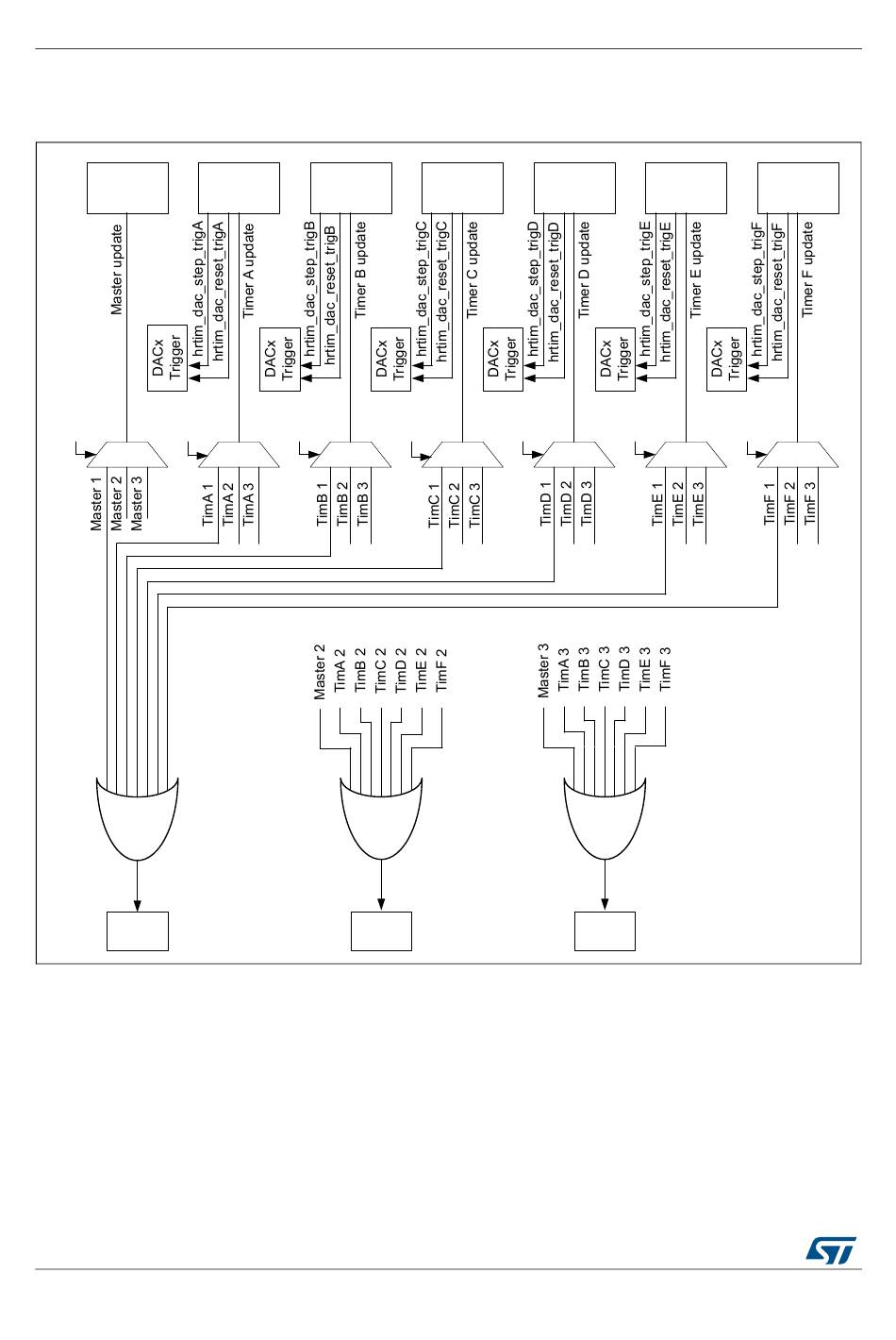

Figure 254. DAC triggers overview

TimA TimB
DACSYNC DACSYNC
[1:0]
dac_trig_out2
DACx
Trigger
TimC TimD
DACSYNC
[1:0] [1:0]
RM0440 Rev 1
TimE
DACSYNC DACSYNC
[1:0] [1:0]
dac_trig_out3
DACx
Trigger
