Figure 451. Output Stage Of Capture/Compare Channel (Channel 1); Figure 452. Output Stage Of Capture/Compare Channel (Channel 2 For Tim15) - ST STM32G4 Series Reference Manual

General-purpose timers (TIM15/TIM16/TIM17)

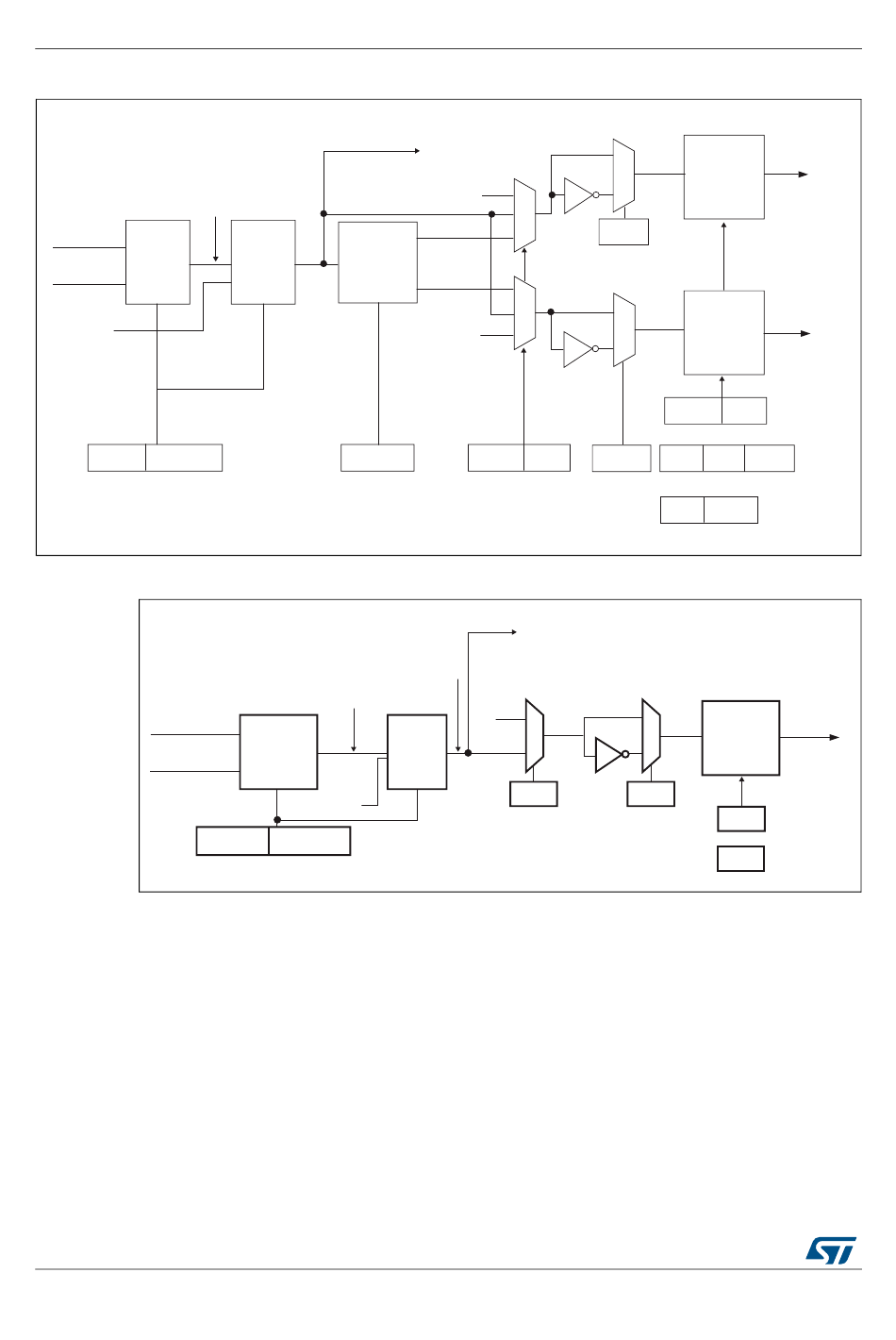

Figure 451. Output stage of capture/compare channel (channel 1)

tim_oc1ref
CNT>CCR1
Output
mode
CNT=CCR1
controller
tim_oc2ref
OC1CE OC1M[3:0]
TIMx_CCMR1

Figure 452. Output stage of capture/compare channel (channel 2 for TIM15)

CNT > CCR2
CNT = CCR2
The capture/compare block is made of one preload register and one shadow register. Write
and read always access the preload register.
In capture mode, captures are actually done in the shadow register, which is copied into the
preload register.
In compare mode, the content of the preload register is copied into the shadow register
which is compared to the counter.
29.4.8 Input capture mode
In Input capture mode, the Capture/Compare Registers (TIMx_CCRx) are used to latch the
value of the counter after a transition detected by the corresponding tim_icx signal. When a
capture occurs, the corresponding CCXIF flag (TIMx_SR register) is set and an interrupt or
a DMA request can be sent if they are enabled. If a capture occurs while the CCxIF flag was
