Complementary outputs and dead-time insertion

The TIM15/TIM16/TIM17 general-purpose timers can output one complementary signal and

manage the switching-off and switching-on of the outputs.

This time is generally known as dead-time and it has to be adjusted depending on the

devices that are connected to the outputs and their characteristics (intrinsic delays of level-

shifters, delays due to power switches...)

The polarity of the outputs (main output tim_ocx or complementary tim_ocxn) can be

selected independently for each output. This is done by writing to the CCxP and CCxNP bits

in the TIMx_CCER register.

The complementary signals tim_ocx and tim_ocxn are activated by a combination of several

control bits: the CCxE and CCxNE bits in the TIMx_CCER register and the MOE, OISx,

OISxN, OSSI and OSSR bits in the TIMx_BDTR and TIMx_CR2 registers. Refer to

Table 294: Output control bits for complementary tim_oc1 and tim_oc1n channels with

break feature (TIM16/TIM17) on page 1385

activated when switching to the idle state (MOE falling down to 0).

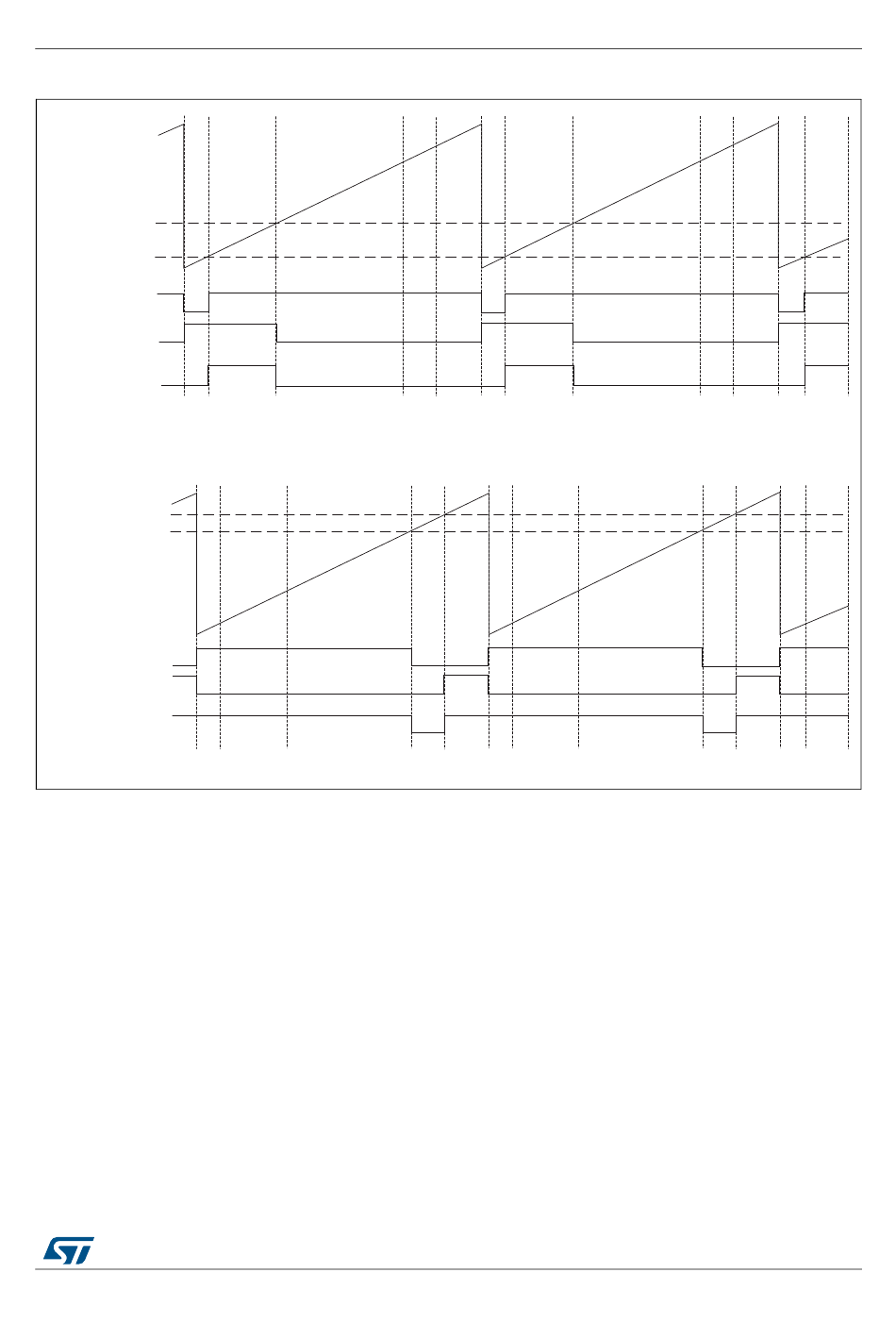

Figure 460. Combined PWM mode on channel 1 and 2

tim_oc1refc = tim_oc1ref AND tim_oc2ref

tim1_oc1refc = tim1_oc1ref OR tim1_oc2ref

General-purpose timers (TIM15/TIM16/TIM17)

for more details. In particular, the dead-time is
