RM0440
match (DELCMPx[1:0]= 10) or a compare 3 match (DELCMPx[1:0]= 11) to have a
timeout function if capture 1/2 event is missing.
When the capture occurs, the comparison is done with the (HRTIM_CMP2/4xR +
HRTIM_CPT1/2xR) value. If no capture is triggered within the period, the behavior depends
on the DELCMPx[1:0] value:
•
DELCMPx[1:0] = 01: the compare event is not generated
• DELCMPx[1:0] = 10 or 11: the comparison is done with the sum of the 2 compares (for
instance HRTIM_CMP2xR + HRTIM_CMP1xR). The captures are not taken into
account if they are triggered after CMPx + CMP1 (resp. CMPx + CMP3).
The captures are enabled again at the beginning of the next PWM period.
If the result of the auto-delayed summation is above 0xFFFF (overflow), the value is ignored
and no compare event is generated until a new period is started.
Note: DELCMPx[1:0] bitfield must be reset when reprogrammed from one value to the other to re-
initialize properly the auto-delayed mechanism, for instance:
•
DELCMPx[1:0] = 10
•
DELCMPx[1:0] = 00
•
DELCMPx[1:0] = 11
As an example,
•
Output set when the counter is equal to compare 1 value
•
Output reset 5 cycles after a falling edge on a given external event
Note: To simplify the figure, the high-resolution is not used in this example (CKPSC[2:0] = 101),
thus the counter is incremented at the f
shown without any resynchronization delay: practically, there is a delay of 1 to 2 f
periods between the falling edge and the capture event due to an internal resynchronization
stage which is necessary to process external input signals.
Counter
0 1
HRTIM_CPT1xR
HRTIM_CMP2xR
HRTIM_CMP1xR
External event
Output
A regular compare channel (e.g. compare 1) is used for the output set: as soon as the
counter matches the content of the compare register, the output goes to its active state.

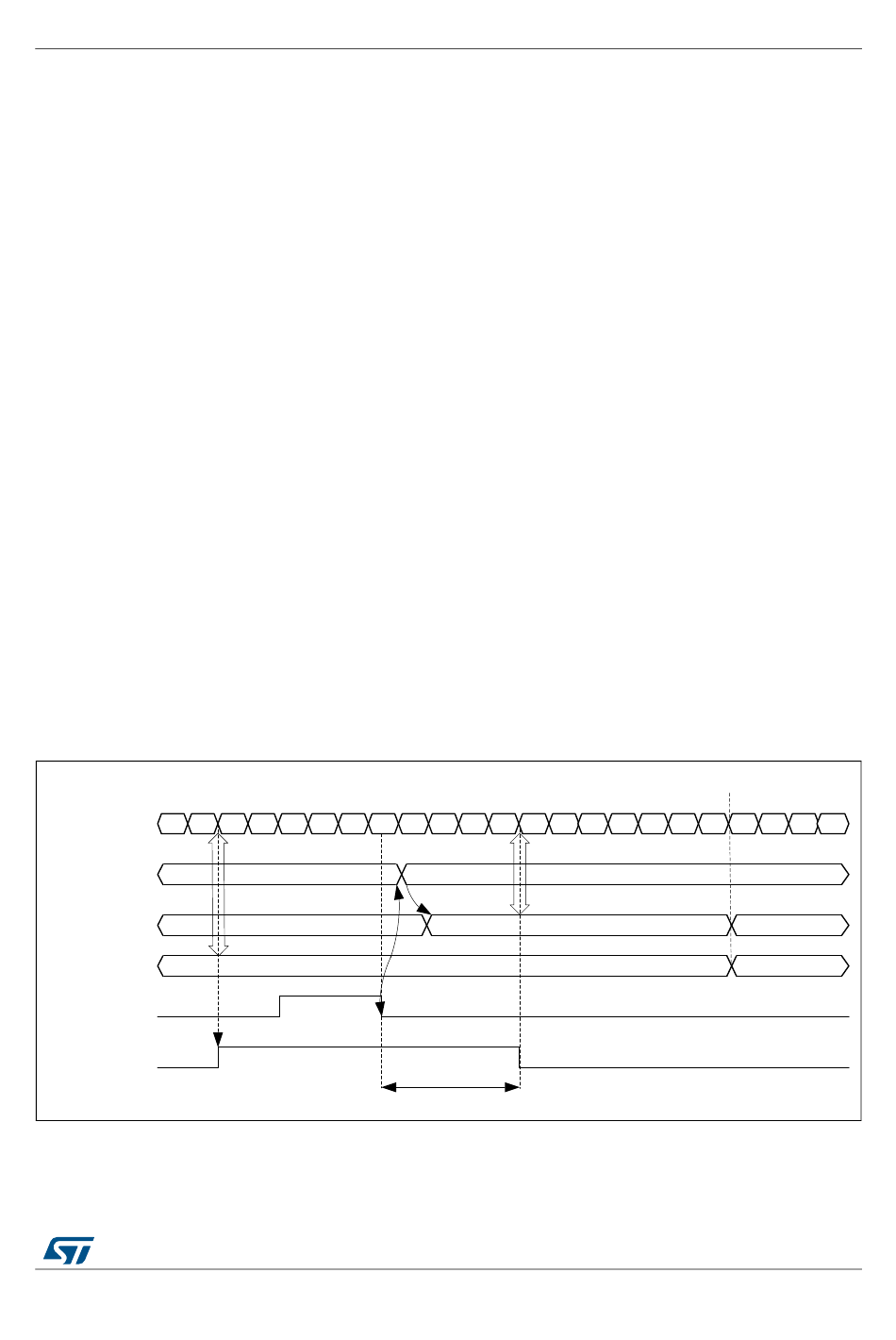

Figure 190 shows how the following signal is generated:

Figure 190. Auto-delayed compare

2 3 4 5 6 7
Previous
Preload=5 Active: disabled
Match
Capture
RM0440 Rev 1
rate. Similarly, the external event signal is
HRTIM
8 9 10 11 12 13
Match
Preload=5 Active=12
2
~5 cycles
High-resolution timer (HRTIM)
Update
14 15 16 17 18 0
7
Active: disabled
clock
HRTIM
1 2 3
Preload=8
5
MSv48374V1
