To set the detail level for a view, on the View Control Bar at the bottom of the drawing area, click the Detail
Level button, and select the desired detail level: coarse, medium, or fine. For more information, see
Level on page 503.

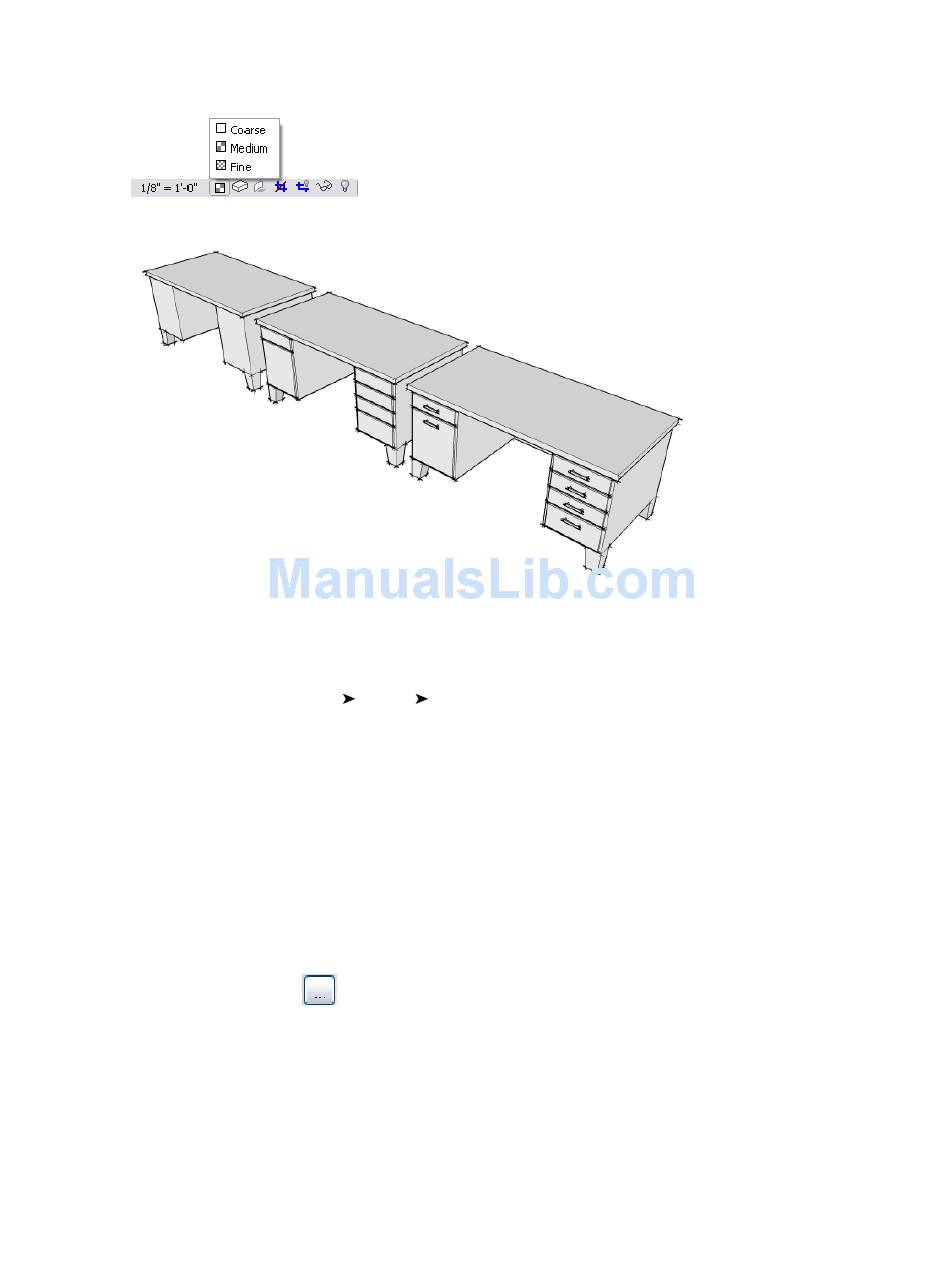

A desk in coarse, medium, and fine detail levels

Exporting to DWG

1 Click File menu
2 In the Export dialog, for Save In, navigate to the target folder for the exported files.
3 For Files of Type, select a DWG file format.
4 If you are exporting a single view, do the following:
a Under Naming, select Manual (Specify file name), or select Automatic - Long (Specify prefix)
or Automatic - Short to use an automatically generated file name. See
Files on page 1278.
b Under Range, select Current View.
5 If you are exporting multiple views and sheets, do the following:
a Under Range, select Selected Views/Sheets.
b Click
c In the View/Sheet Set dialog, select the views and sheets to export, and click OK.
d Under Naming, select Automatic - Short to use a short prefix for the names of the exported
files, or select Automatic - Long (Specify prefix) to use a longer prefix. See
Exported Files
Export CAD Formats.
.
on page 1278.
File Names for Exported
File Names for
Exporting to CAD Formats | 1275
