Room Option Conflict

Issue: This message appears in a drawing when conflicts occur between rooms in the main model and rooms
in a secondary design option.
For example, if the main model contains rooms, and you place rooms into the same space in a design option,
the boundaries of the rooms in the main model might overlap the boundaries of the rooms in the design
option.

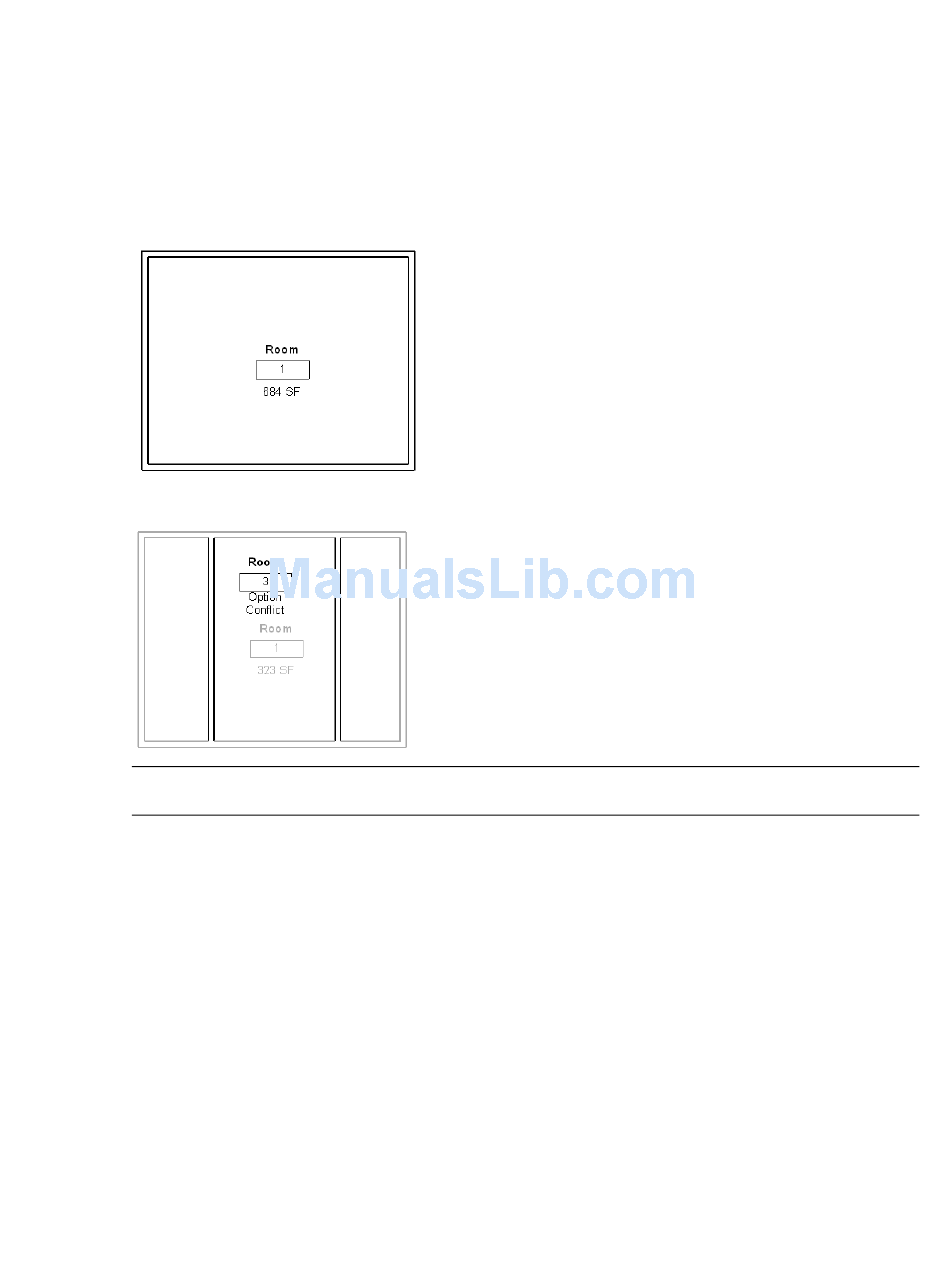

For example, suppose the main model contains the following room.
When a room is added to a design option, the room tag reports an option conflict.
NOTE If you have created a room schedule, the Room Area column in the schedule also displays an Option
Conflict.
To learn the cause of the option conflict, select the room tag in the plan view, or, in a room schedule, select
a cell in a row that has a conflict. Then on the Options Bar, click Explain Error. A warning dialog displays,
which you can expand to read about the conflict and learn possible remedies for it.
Solution: In general, to correct room option conflicts, add the conflicting main model room to the design
option set. This removes the room from the main model and resolves the conflict. See
from the Main Model to a Design Option Set
1262 | Chapter 20 Design Options
on page 1246.
Moving Elements
