Viewing Object Data In A Dwf File; Publishing 2D Dwf - Autodesk 24000-000000-9860 - Revit Architecture - PC User Manual

When you publish object data to 2D DWF, any property with an assigned unit of measurement publishes
user-visible and invisible information. This information is available when you import 2D DWF into Autodesk
FMDesktop. User-visible information consists of formatted values. Invisible information consists of 2
additional fields: an unformatted, raw value, and a field that describes the unit type or data type.

Viewing Object Data in a DWF file

When viewing a DWF file, you can access information (object data) about elements in the design.

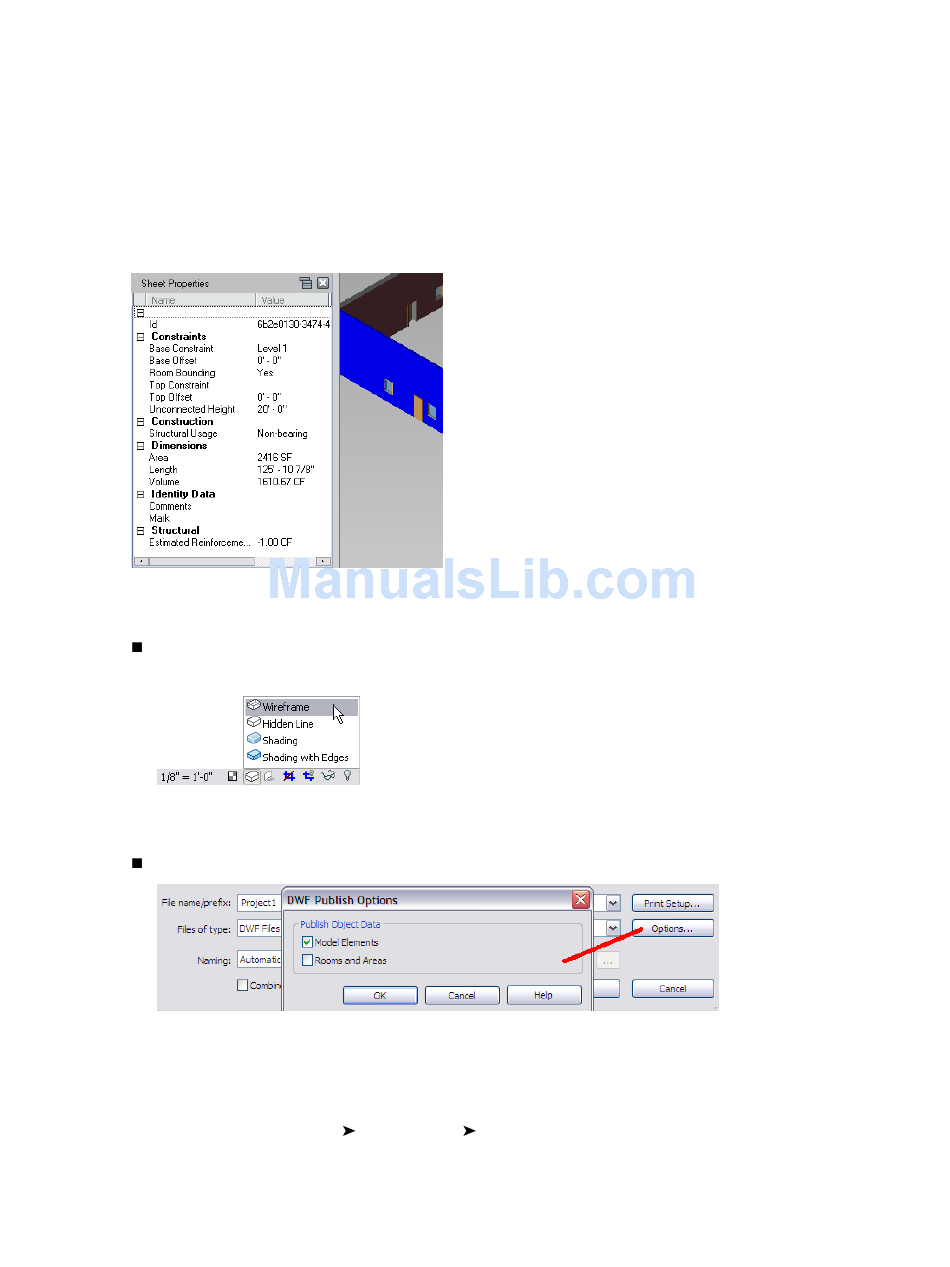

In DWF Viewer, viewing properties for a selected
wall
Revit Architecture automatically includes object data for elements in 3D DWF files. To include this
element-specific information in a 2D DWF file, you must do the following:
Ensure that the model graphics style for selected views is set to Hidden Lines or Wireframe (not Shaded,
nor Shaded with Edges). See
When published to DWF, views that are Shaded or Shaded with Edges use raster processing for images,
so you cannot select individual elements in the DWF file.
When publishing to DWF, select the option to export object data for model elements.

Publishing 2D DWF

1 Click File menu
2 In the Publish DWF 2D dialog, for Save In, navigate to the target folder for the DWF file.
Model Graphic Styles on page 201.
Publish DWF 2D DWF.
Publishing 2D or 3D DWF | 1301
®
