4 How to Program

4.1 Local Control Panel

Easily program the drive via the local control panel (LCP).
Status
1234rpm 10,4A
1
43,5Hz
Run OK
Quick
2 Status
Menu
OK
On
3
Warn.
Alarm
Hand
4
Off
On

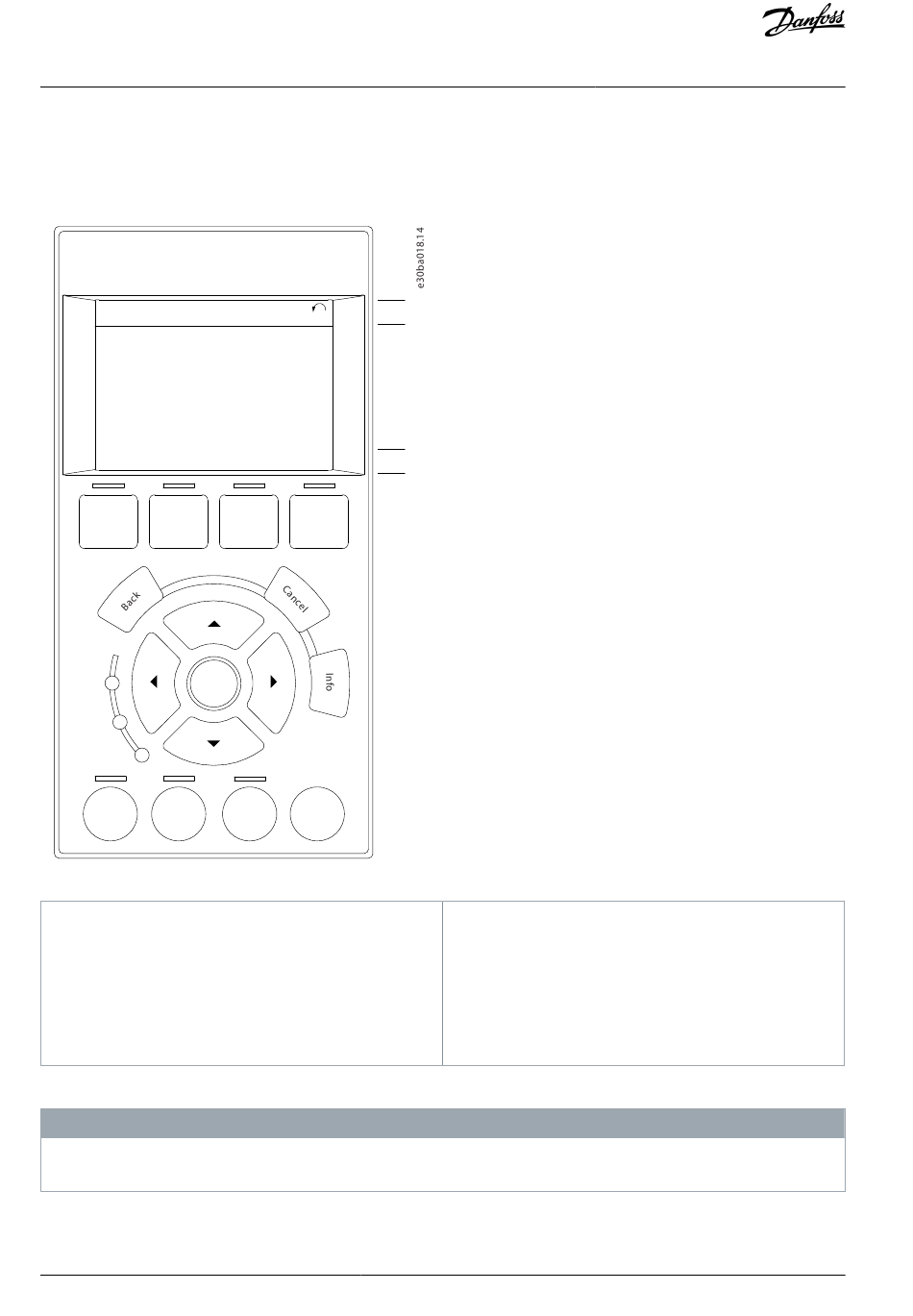

Illustration 9: LCP
1 Graphical display with status lines.
2 Menu keys and indicator lights - changing parame-
ters and switching between display function.
3 Navigation keys and indicator lights.
4 Operation keys and indicator lights.
The LCP display can show up to 5 items of operating data while showing Status.
If start-up is delayed, the LCP shows the INITIALIZING message until it is ready. Adding or removing options can delay the start-
up.
20 | Danfoss A/S © 2022.12
a
1(0)
43,5Hz
b
c
Main Alarm
Menu Log
Auto
Reset
On
N O T I C E
a Status line: Status messages showing icons and
graphics.
b Line 1–2: Operator data lines showing data defined
or selected. Add up to 1 extra line by pressing [Sta-
tus].
c Status line: Status messages showing text.
