VLT AutomationDrive FC 301/302
Programming Guide
•
Parameter 0-32 Custom Readout Max Value.
•
Parameter 4-13 Motor Speed High Limit [RPM].
• Parameter 4-14 Motor Speed High Limit [Hz].
• Actual speed.
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Linear
units only
P 0-31
0

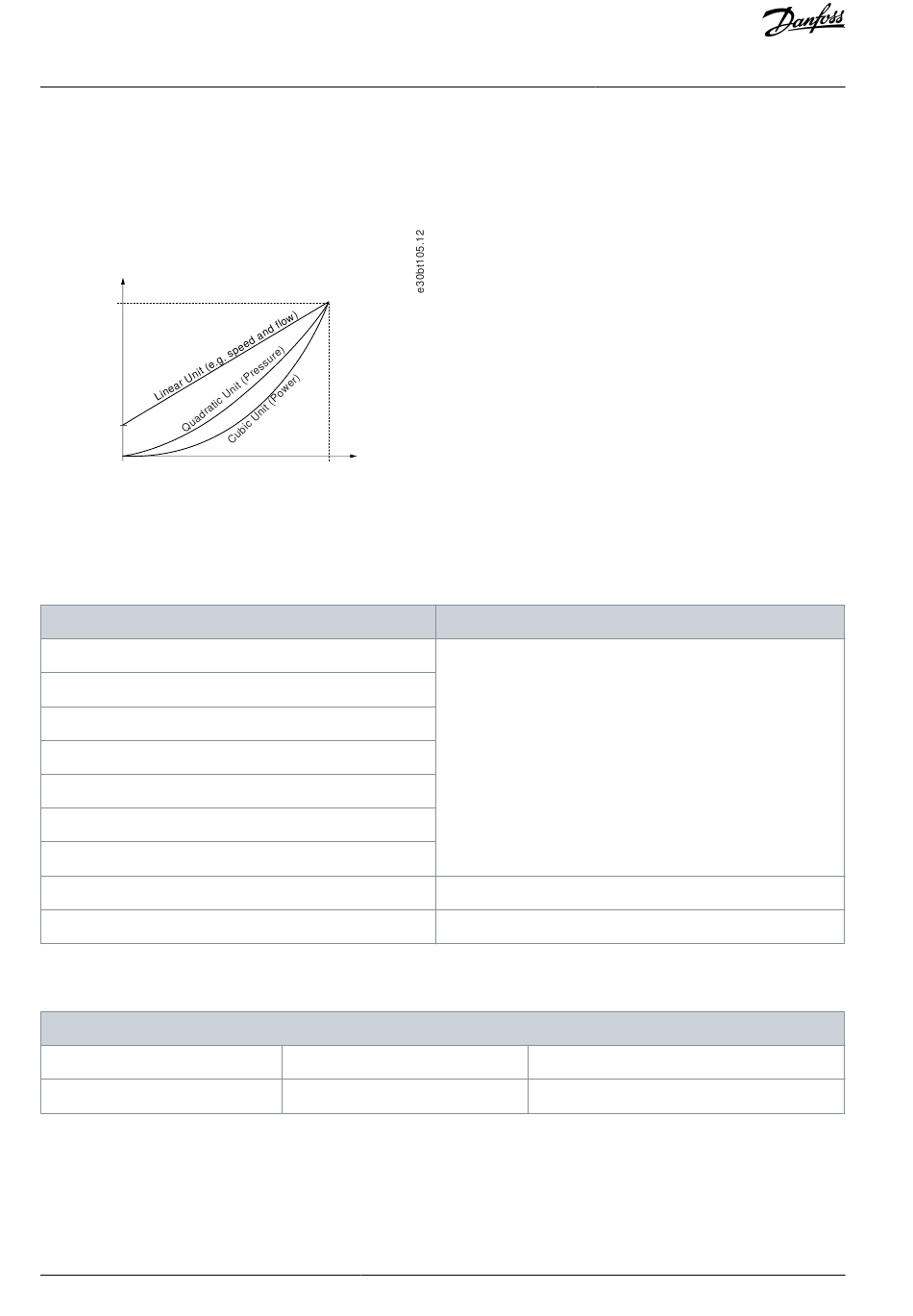

Illustration 28: Custom Readout
The relation depends on the type of unit selected in parameter 0-30 Custom Readout Unit.
Table 20: Speed Relations for Different Unit Types
Unit type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
Parameter 0-30 Unit for User-defined Readout
Table 21: Parameter 0-30 Unit for User-defined Readout
0-30 Unit for User-defined Readout
Default value: [0] None
Conversion index: –
It is possible to program a value to be shown in the display of the LCP. The value has a linear, squared, or cubed relation to speed.
This relation depends on the unit type selected. The actual calculated value can be read in parameter 16-09 Custom Readout, and/or
shown in the display by selecting [16-09] Custom Readout in parameter 0-20 Display Line 1.1 Small to parameter 0-24 Display Line 3
Large.
50 | Danfoss A/S © 2022.12
Motor Speed
Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
Speed relation
Linear
Quadratic
Cubic
Parameter type: Option
Data type: Uint8
Parameter Descriptions
Setup: All setups
Change during operation: True
