How to Program

6 How to Program
6.1 Programming with MCT 10 Set-up
Software
The frequency converter can be programmed from the LCP,
or from a PC via the RS485 COM port by installing the MCT
10 Set-up Software. Refer to chapter 1.5 Additional
Resources for more details about the software.

6.2 Local Control Panel (LCP)

The LCP is divided into 4 functional sections.
6 6
A. Display
B. Menu key
C. Navigation keys and indicator lights
D. Operation keys and indicator lights
1
2
3
4
6
10
7
8
9

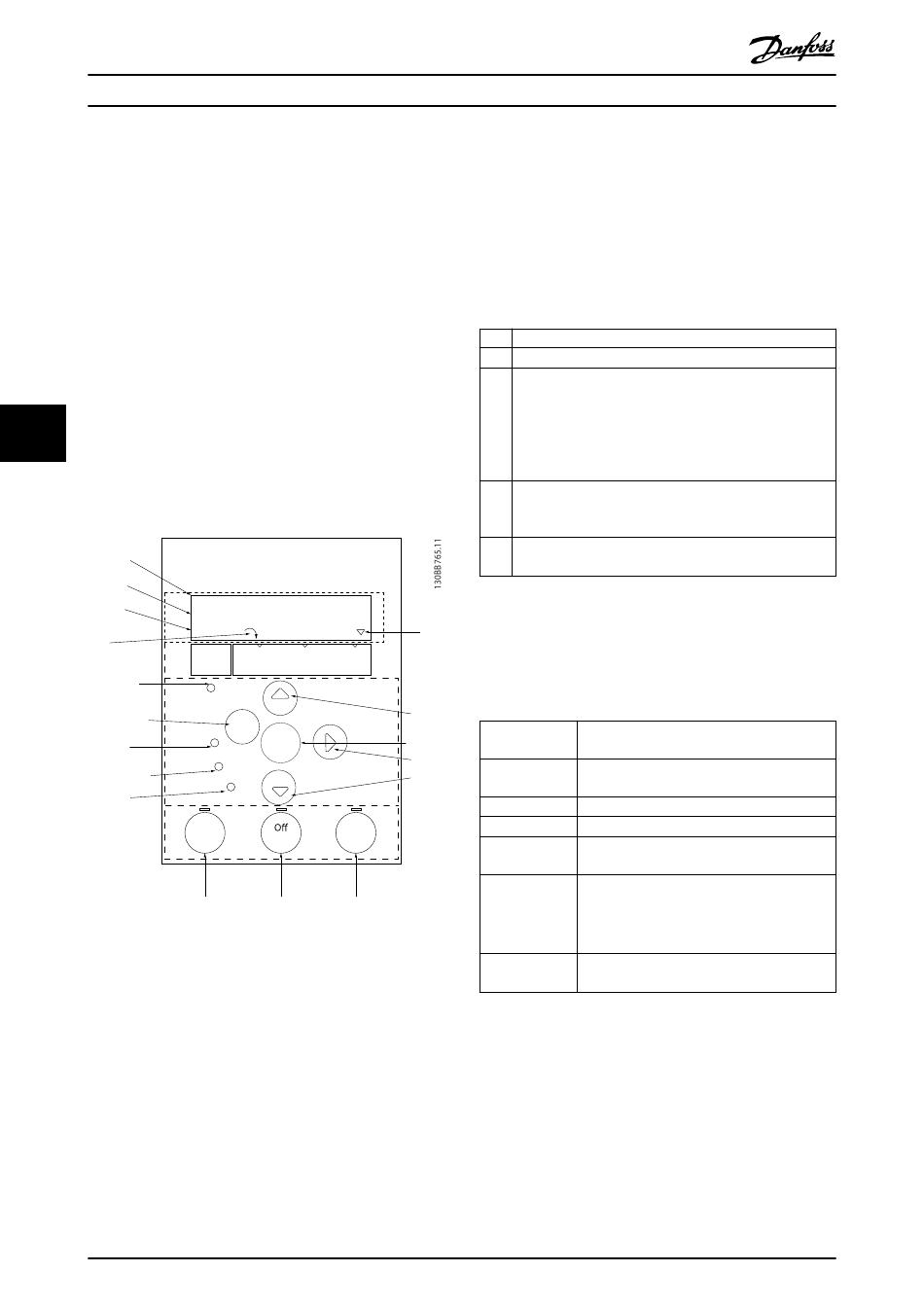

Illustration 6.1 Local Control Panel (LCP)
38
1-20 Motor Power
A
[5] 0.37kW - 0.5HP
Setup 1
Main
Status Quick
B
Menu
Menu
Menu
Com.
C
Back
On
OK
Warn.
Alarm
Hand Auto
D
On Reset
13 14
Danfoss A/S © 12/2015 All rights reserved.
®
VLT Compressor Drive CDS 803
A. Display
The LCD-display is illuminated with 2 alphanumeric lines.
All data is displayed on the LCP.
Illustration 6.1 describes the information that can be read
from the display.
1 Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-up differ, both numbers are shown in
the display (set-up 12). The number flashing, indicates the
edit set-up.
4 Motor direction is shown to the bottom left of the display
– indicated by a small arrow pointing either clockwise or
counterclockwise.
5 The triangle indicates if the LCP is in Status, Quick Menu, or
Main Menu.
Table 6.1 Legend to Illustration 6.1, Part I
5 B. Menu key
Press [Menu] to select among Status, Quick Menu, or Main
Menu.
C. Navigation keys and indicator lights
11
6
12
11
7
11
8
9
On
10
11
15
12
Table 6.2 Legend to Illustration 6.1, Part II
Com. LED: Flashes when bus communication is
communicating.
Green LED/On: Control section is working
correctly.
Yellow LED/Warn.: Indicates a warning.
Flashing Red LED/Alarm: Indicates an alarm.
[Back]: For moving to the previous step or
layer in the navigation structure.
▲ ▼
[ ] [ ] [►]: For navigating among parameter
groups and parameters, and within
parameters. They can also be used for setting
local reference.
[OK]: For selecting a parameter and for
accepting changes to parameter settings.
