Specify the following for each event:
• Maintenance item (for example, motor bearings).
• Maintenance action (for example, replacement).
• Maintenance time base (for example, running hours, or a specific date and time).
• Maintenance time interval or the date and time of next maintenance.
To disable a preventive maintenance event, set the associated parameter 23-12 Maintenance Base to [0] Disabled.
Preventive maintenance can be programmed from the LCP, but use of the PC-based VLT® Motion Control Tool MCT 10 is recom-
mended.
Un titled - MC T 10 SE T - up S of t w ar e
F ile E dit V iew I nser t C ommunica tion
+ Net w or k
P r ojec t
-
- VL T A QU A DRIVE
A ll P ar amet ers
-
+
Oper a tion/Displa y
+ L oad/M ot or
+
Br akes
+ R ef er enc e / R amps
+ Limits / W ar nings
+ Dig ital I n/O ut
+ A nalog I n/O ut
C omm. andOptions
+
+ Smar t log ic
+ Special F unc tions
Dr iv e I nf or ma tion
+
+ Da ta R eadouts
I nf o & R eadouts
+
Dr iv e Closed L oop
+
Ex t . Closed L oop
+
A pplica tion F unc tions
+
T ime -based F unc tions
-
T imed A c tions
M ain t enanc e
M ain t enanc e R eset
Ener gy L og
T r ending
P a yback C oun t er
+ C ascade C on tr oller
W a t er A pplica tion F unc tions
+
+ C ascade C on tr oller

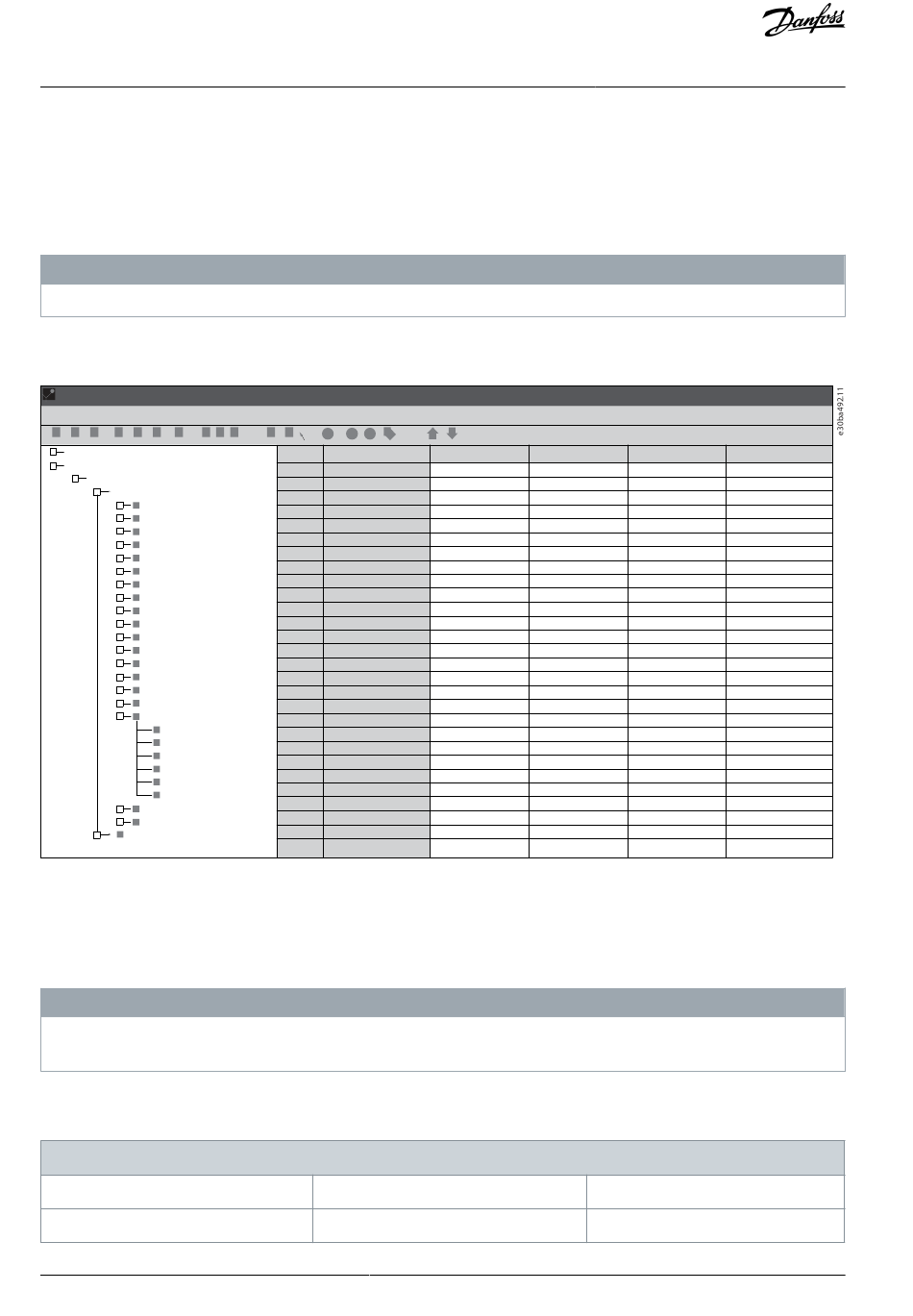

Illustration 95: Maintenance Menu, MCT 10
The LCP indicates (with a wrench icon and letter M) when it is time for a preventive maintenance action and can be programmed to
be indicated on a digital output in parameter group 5-3* Digital Outputs. The preventive maintenance status is shown in parameter
16-96 Maintenance Word. A preventive maintenance indication can be reset from a digital input, the FC bus, or manually from the
LCP through parameter 23-15 Reset Maintenance Word.
The preventive maintenance events are defined in a 20-element array. Hence, each preventive maintenance event must use the
same array element index in parameter 23-10 Maintenance Item to parameter 23-14 Maintenance Date and Time.
Parameter 23-10 Maintenance Item
Table 1028: Parameter 23-10 Maintenance Item
23-10 Maintenance Item
Default value: [1] Motor Bearings
Conversion index: -
