5.2.10.1 PTC Thermistor Connection

R
(W)
4000
3000
1330
550
250
-20°C

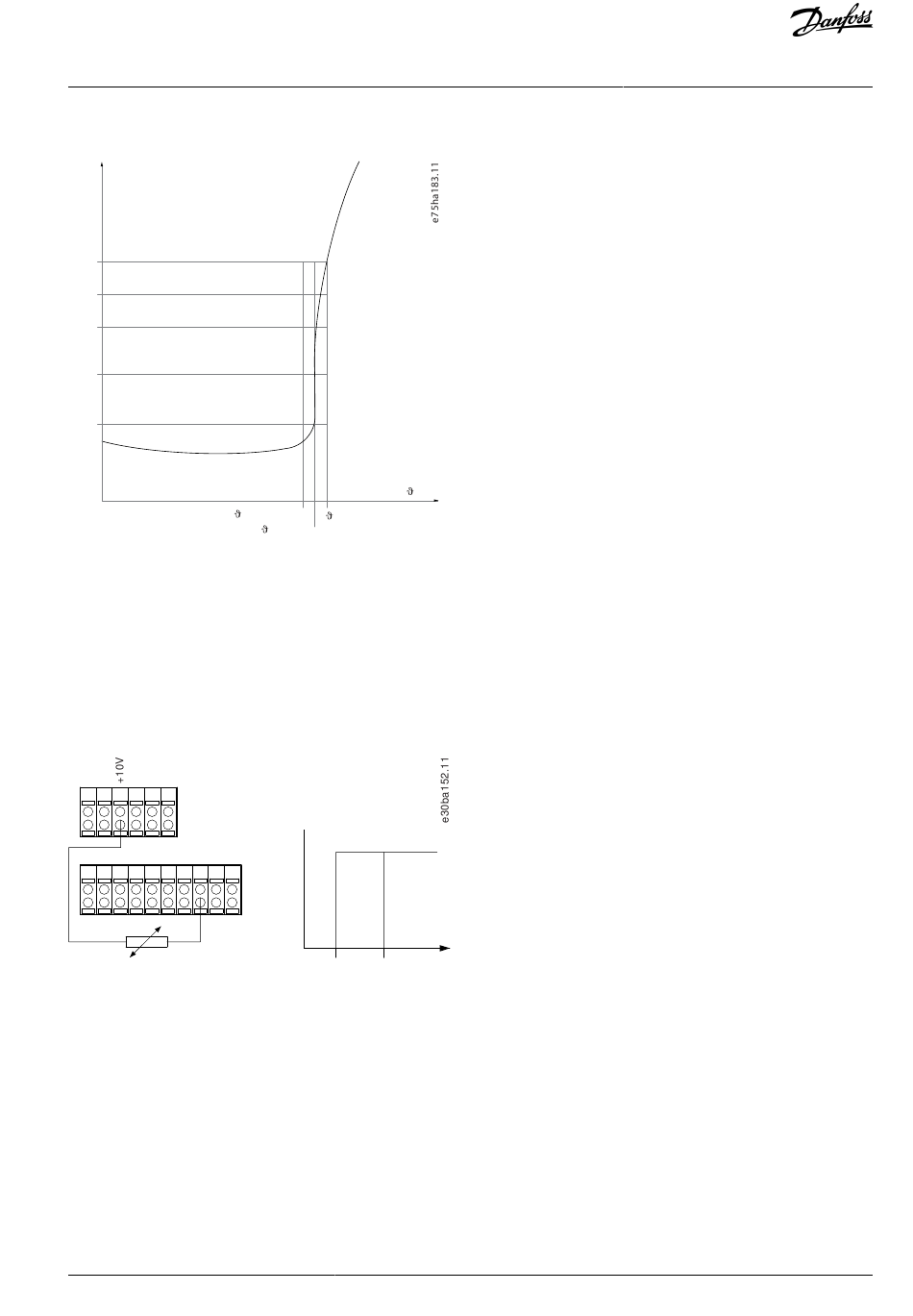

Illustration 39: PTC Profile
Using a digital input and 10 V as supply: Example: The drive trips when the motor temperature is too high.
Parameter setup:
•
Set parameter 1-90 Motor Thermal Protection to [2] Thermistor Trip.
•
Set parameter 1-93 Thermistor Source to [6] Digital Input.
39 42 50 53 54 55
12 13 18 19 27 29 32 33 20 37
PTC / Thermistor
Illustration 40: PTC Thermistor Connection - Digital Input
Using an analog input and 10 V as supply: Example: The drive trips when the motor temperature is too high.
Parameter setup:
•
Set parameter 1-90 Motor Thermal Protection to [2] Thermistor Trip.
• Set parameter 1-93 Thermistor Source to [2] Analog Input 54.
