PTC / Thermistor

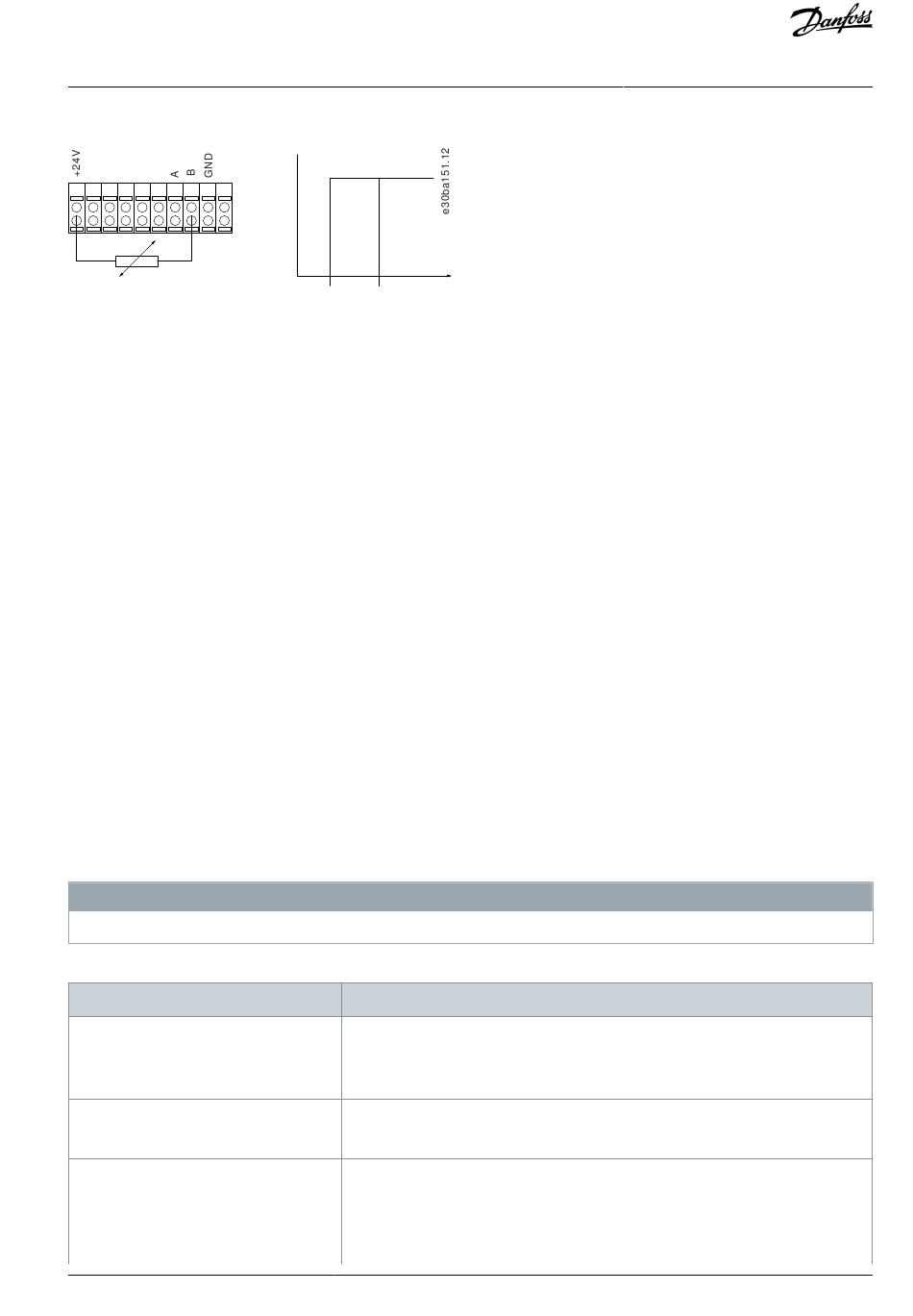

Illustration 44: Thermistor Connection
5.2.10.6 PM Settings
If [2] Std. PM, non-salient is selected in parameter 1-10 Motor Construction, enter the motor parameters manually in the following
order:
• Parameter 1-24 Motor Current.
•
Parameter 1-26 Motor Cont. Rated Torque.
•
Parameter 1-25 Motor Nominal Speed.
•
Parameter 1-39 Motor Poles.
•
Parameter 1-30 Stator Resistance (Rs).
•
Parameter 1-37 d-axis Inductance (Ld).
• Parameter 1-40 Back EMF at 1000 RPM.
The following parameters have been added for PM motors.
•
Parameter 1-41 Motor Angle Offset.
•
Parameter 1-07 Motor Angle Offset Adjust.
• Parameter 1-14 Damping Gain.
• Parameter 1-47 Torque Calibration.
• Parameter 1-58 Flying Start Test Pulses Current.
• Parameter 1-59 Flying Start Test Pulses Frequency.
•
Parameter 1-70 Start Mode.
•
Parameter 30-20 High Starting Torque Time [s].
•
Parameter 30-21 High Starting Torque Current [%].
Standard parameters still need configuration (for example parameter 4-19 Max Output Frequency).
Table 148: Recommendations for VVC
Application
Low inertia applications
I /I <5
Load Motor
Low inertia applications
50>I /I >5
Load Motor
High inertia applications
Danfoss A/S © 2022.12
OFF
ON
<6.6 k # >10.8 k # R
N O T I C E
+
Applications
Settings
Increase parameter 1-17 Voltage Filter Time Const. by factor 5–10.
Reduce parameter 1-14 Damping Gain.
Reduce parameter 1-66 Min. Current at Low Speed (<100%).
Keep calculated values.
Increase parameter 1-14 Damping Gain, parameter 1-15 Low Speed Filter Time Const.,
and parameter 1-16 High Speed Filter Time Const.
Parameter Descriptions
AU275636650261en-000101 / 130R0334 | 111
