VLT AutomationDrive FC 301/302
Programming Guide
Op- Name Description
tion
[2] >
Inverse logic of option [0] <.
[5] TRUE longer
than..
[6] FALSE longer-
than..
[7] TRUE shorter
than..
[8] FALSE shorter
than..
Parameter 13-12 Comparator Value
Table 676: Parameter 13-12 Comparator Value
13-12 Comparator Value
Default value: Size related
Conversion index: -3
Enter the trigger level for the variable that is monitored by this comparator. This is an array parameter containing comparator values
0–9.
5.13.2.1 RS FlipFlops
The reset/set flipflops hold the signal until set/reset.
Parameter 13-15
RS-FF Operand S
Parameter 13-16
RS-FF Operand R

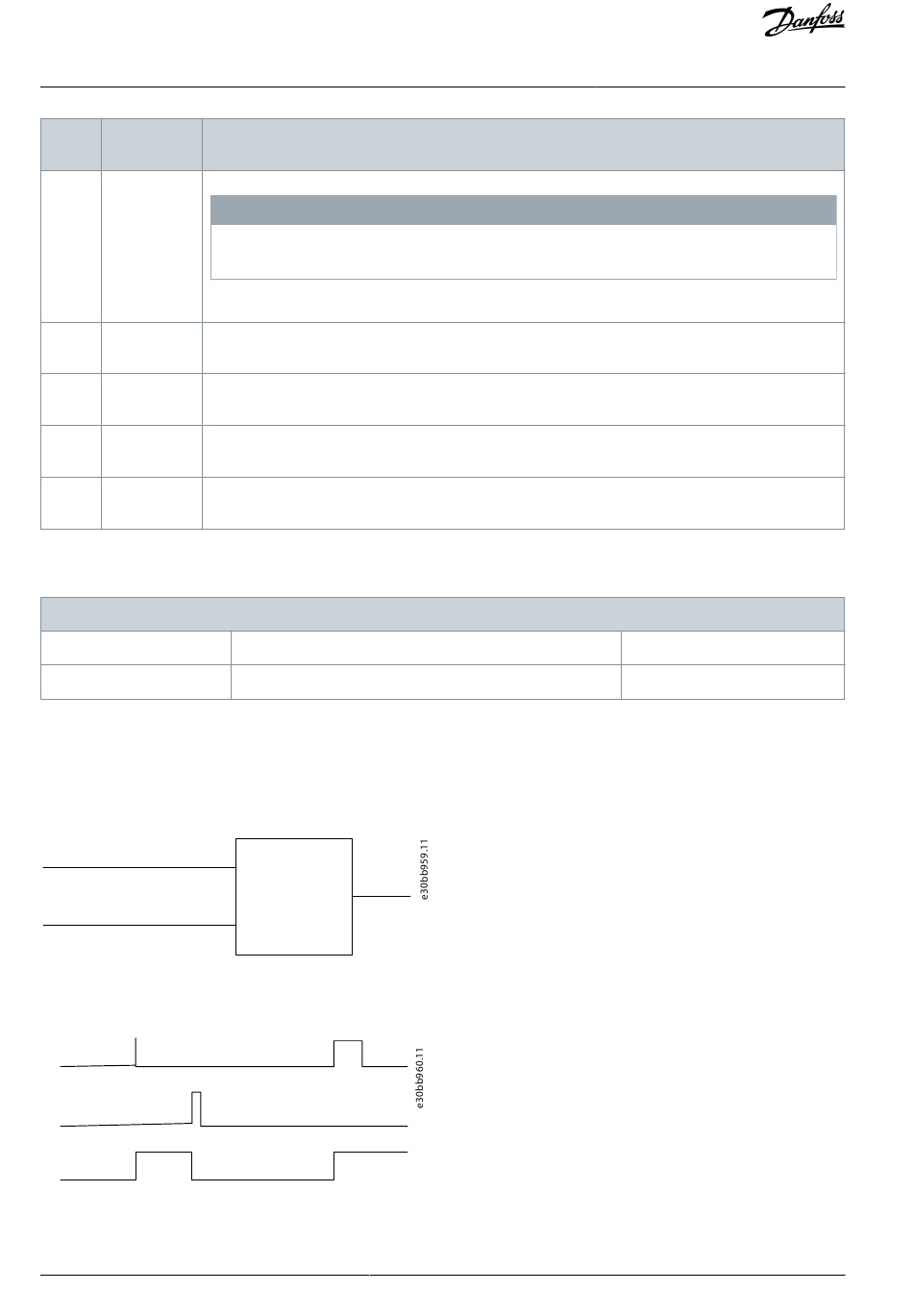

Illustration 80: Reset/Set Flipflops
Two parameters are used and the output can be used in the logic rules and as events.
S
R
Flip flop output
Illustration 81: Flipflop Outputs
388 | Danfoss A/S © 2022.12
If [20] Alarm number or [21] Warning number is selected in parameter 3-10 Comparator Operand, [2] >
cannot be selected in this parameter.
Parameter type: Range, -100000.000 - 100000, Array [10]
Data type: Int32
N O T I C E
Setup: 2 setups
Change during operation: True
AU275636650261en-000101 / 130R0334
Parameter Descriptions
