VLT AutomationDrive FC 301/302
Programming Guide

3 Electrical Diagrams

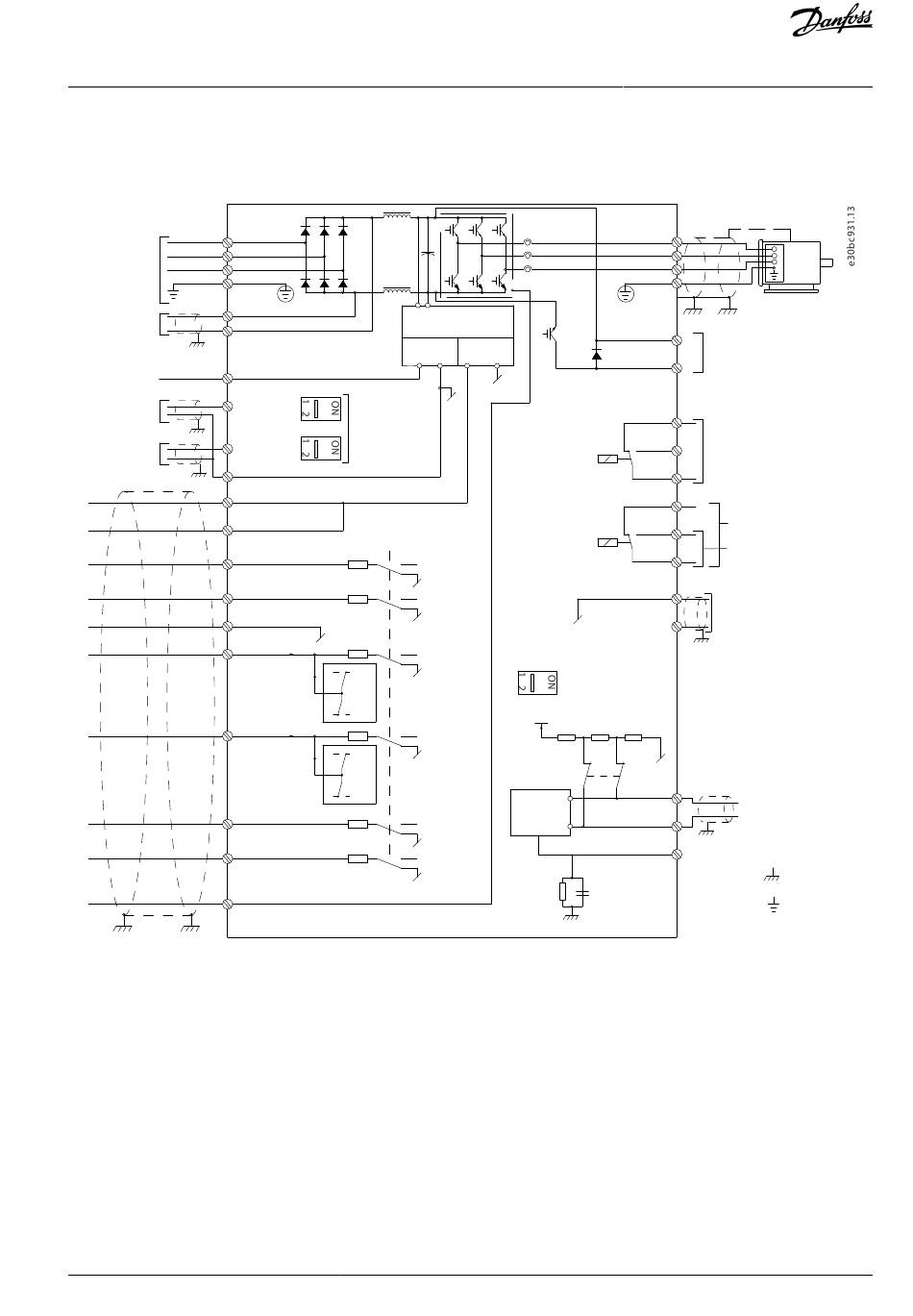

3.1 Wiring Schematic

91 (L1)
3 Phase
92 (L2)
power
93 (L3)
input
95
DC bus 88 (-)
89 (+)
50 (+10 V OUT)
+10 V DC
0/-10 V DC -
53 (A IN)
+10 V DC
0/4-20 mA
0/-10 V DC -
54 (A IN)
+10 V DC
0/4-20 mA
55 (COM A IN)
12 (+24 V OUT)
13 (+24 V OUT)
18 (D IN)
19 (D IN)
20 (COM D IN)
27
1)
29
32 (D IN)
33 (D IN)
1)
37 (D IN)
Illustration 1: Wiring Schematic
A=Analog, D=Digital
1) Do not connect cable shield.
Terminal 37 is used for Safe Torque Off (STO). For STO installation instructions, refer to the VLT® Frequency Converters - Safe Torque
Off Operating Guide.
Long control cables and analog signals may in rare cases, depending on installation, result in 50/60 Hz ground loops due to noise
from mains supply cables. If 50/60 Hz ground loops occur, consider breaking the shield or insert a 100 nF capacitor between shield
and enclosure.
To avoid ground currents from both groups to affect other groups, connect the digital and analog inputs and outputs separately to
the common inputs (terminals 20, 55, and 39) of the drive. For example, switching on the digital input may disturb the analog input
signal.
Danfoss A/S © 2022.12
PE
Switch Mode
Power Supply
10 V DC
15 mA 130/200 mA
+ -
S201
ON=0/4-20 mA
S202
OFF=0/-10 V DC -
+10 V DC
Par. 5-00
24 V (PNP)
0 V (NPN)
24 V (PNP)
0 V (NPN)
24 V (PNP)
(D IN/OUT)
0 V (NPN)
24 V
0 V
24 V (PNP)
(D IN/OUT)
0 V (NPN)
24 V
0 V
24 V (PNP)
0 V (NPN)
24 V (PNP)
0 V (NPN)
24 V DC
+ -
relay 1
1)
relay 2
(COM A OUT) 39
(A OUT) 42
S801
ON=Terminated
OFF=Open
5V
S801
RS485
(N RS485) 69
Interface
(P RS485) 68
(COM RS485) 61
Electrical Diagrams
(U) 96
(V) 97
(W) 98
(PE) 99
Motor
Brake
(R+) 82
resistor
(R-) 81
03
240 V AC, 2 A
02
01
06
240 V AC, 2 A
05
400 V AC, 2 A
04
Analog Output
0/4-20 mA
0V
RS485
2)
: Chassis
: Earth
AU275636650261en-000101 / 130R0334 | 15
