VLT AutomationDrive FC 301/302
Programming Guide
Hz
P 24-04
n
s
P 24-03
P 24-40
Ramp (X)Up
Time (Acc)
If S-ramps are selected, set the level of non-linear jerk compensation required. Set jerk compensation by defining the proportion of
ramp-up and ramp-down times where acceleration and deceleration are variable (that is, increasing or decreasing). The S-ramp ac-
celeration and deceleration settings are defined as a percentage of the actual ramp time.
Speed
Ramp (X) S-Ramp
Ratio at Accel.End
Linear
Ramp (X)
S-Ramp
Jerk compensated
Ratio at
Accel.End
Ramp (X)
Up Time

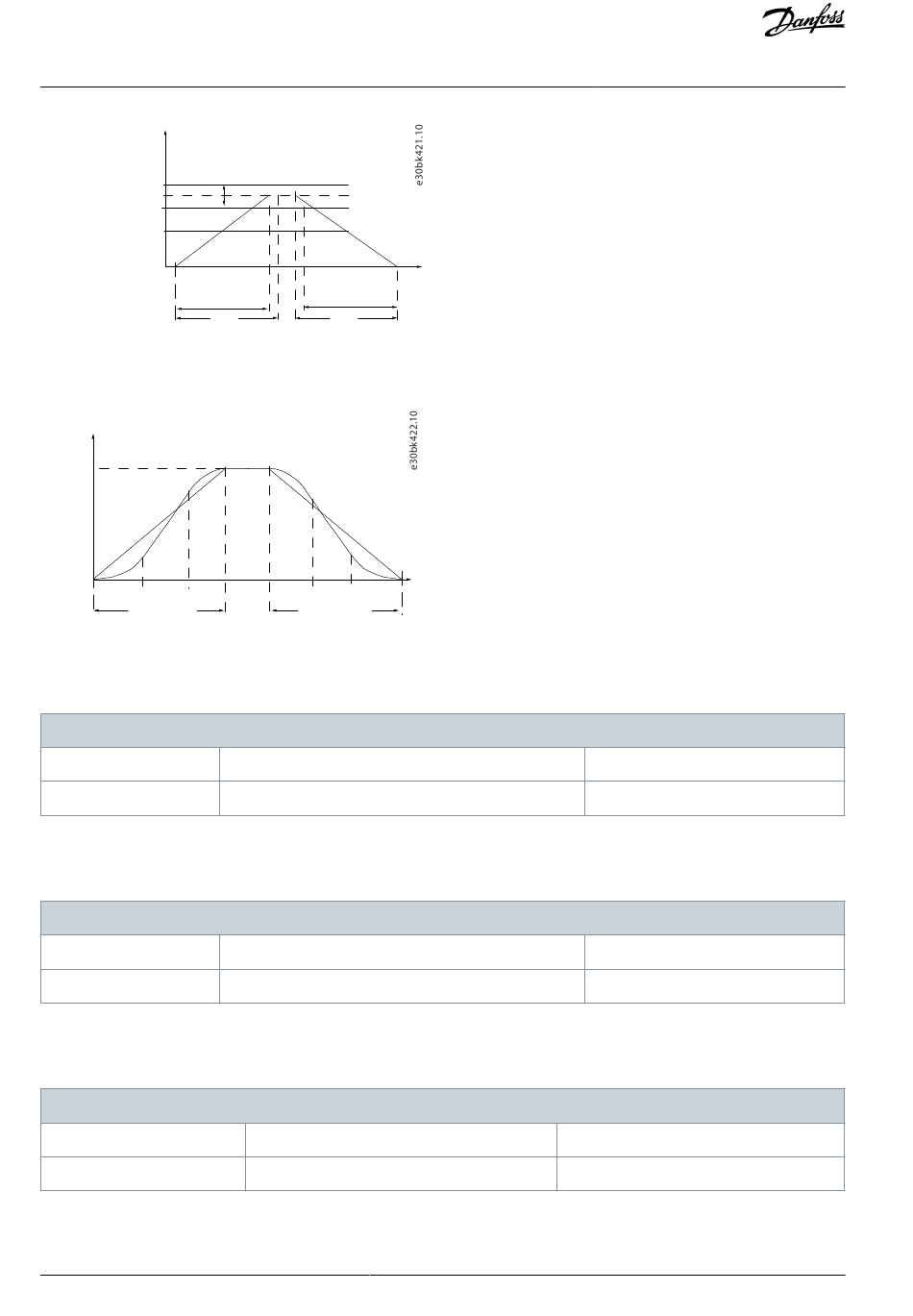

Illustration 98: Non-linear Ramping Times
Parameter 24-40 Emergency Mode Ramp Up Time
Table 1049: Parameter 24-40 Emergency Mode Ramp Up Time
24-40 Emergency Mode Ramp Up Time
Default value: 3 s
Conversion index: -2
This ramp time is used for acceleration while emergency mode is active.
Parameter 24-41 Emergency Mode Ramp Down Time
Table 1050: Parameter 24-41 Emergency Mode Ramp Down Time
24-41 Emergency Mode Ramp Down Time
Default value: 3 s
Conversion index: -2
This ramp time is used for deceleration while emergency mode is active.
Parameter 24-42 Timeout for Emergency Mode Test
Table 1051: Parameter 24-42 Timeout for Emergency Mode Test
24-42 Timeout for Emergency Mode Test
Default value: 10 min
Conversion index: 70
A digital impulse triggers the emergency mode operation with stop on all alarms as option [2] Trip, all alarms/test in parameter 24-09
Emergency Mode Alarms Handling. This test impulse signal can only activate 1 test time period and the normal emergency mode
operation takes over as soon as the test time ends, or it stops the test period if the emergency mode signal disappears. Only "normal
