How to Program

2 How to Program

2.1 Local Control Panel

2.1.1 How to Operate Graphical LCP (GLCP)

The GLCP is divided into 4 functional groups:
1. Graphical display with status lines.
2. Menu keys and indicator lights (LEDs) - selecting
mode, changing parameters, and switching
between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Graphical display
The LCD display is backlit with a total of 6 alpha-numeric
lines. All data is shown on the LCP, which can show up to
5 operating variables while in Status mode.
Display lines:
a. Status line
Status messages displaying icons and graphics.
b. Line 1–2
Operator data lines displaying data and variables
defined or selected by the user. Press [Status] to
add 1 extra line.
c. Status line
Status messages displaying text.
MG16H202
Programming Guide
1
2
On
3
Warn.
Alarm
4

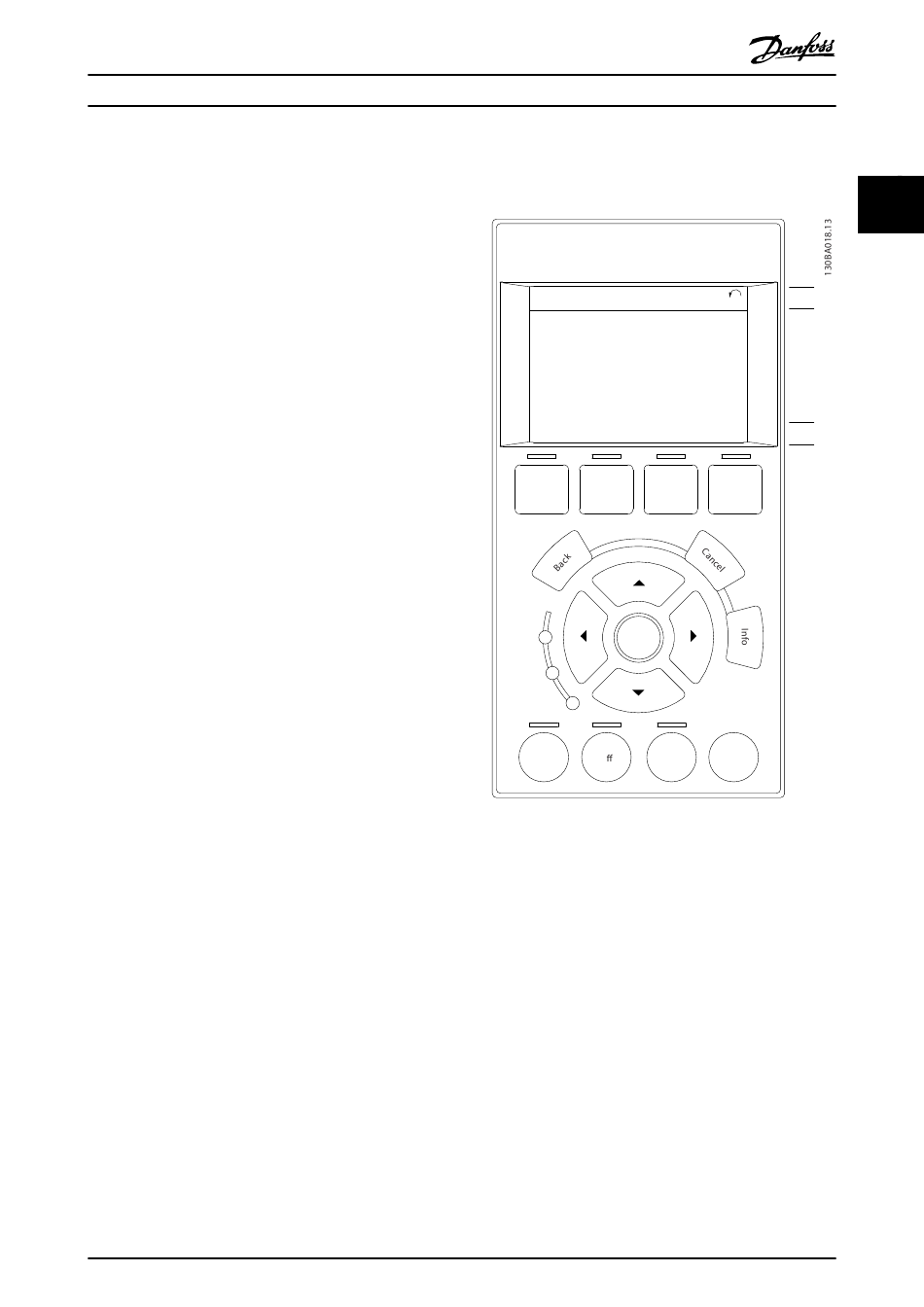

Illustration 2.1 LCP
The display is divided into 3 sections:
Top section
(a) shows the status when in Status mode, or up to 2
variables when not in Status mode, and in the case of
alarm/warning.
The number of the active set-up (selected as the active
set-up in parameter 0-10 Active Set-up) is shown. When
programming in another set-up than the active set-up, the
number of the set-up being programmed appears to the
right in brackets.
Middle section
(b) shows up to 5 variables with related unit, regardless of
status. In case of alarm/warning, the warning is shown
instead of the variables.
Bottom section
(c) always shows the state of the frequency converter in
status mode.
Press [Status] to toggle between 3 status readout displays.
Danfoss A/S © 05/2016 All rights reserved.
Status
1234rpm 10,4A 43,5Hz
43,5Hz
Run OK
Quick Main
Status
Menu Menu
OK
Hand Auto
O
on on
2
a
1(0)
b
c
Alarm
Log
Reset
13
2
