FC 300 Instruction Manual

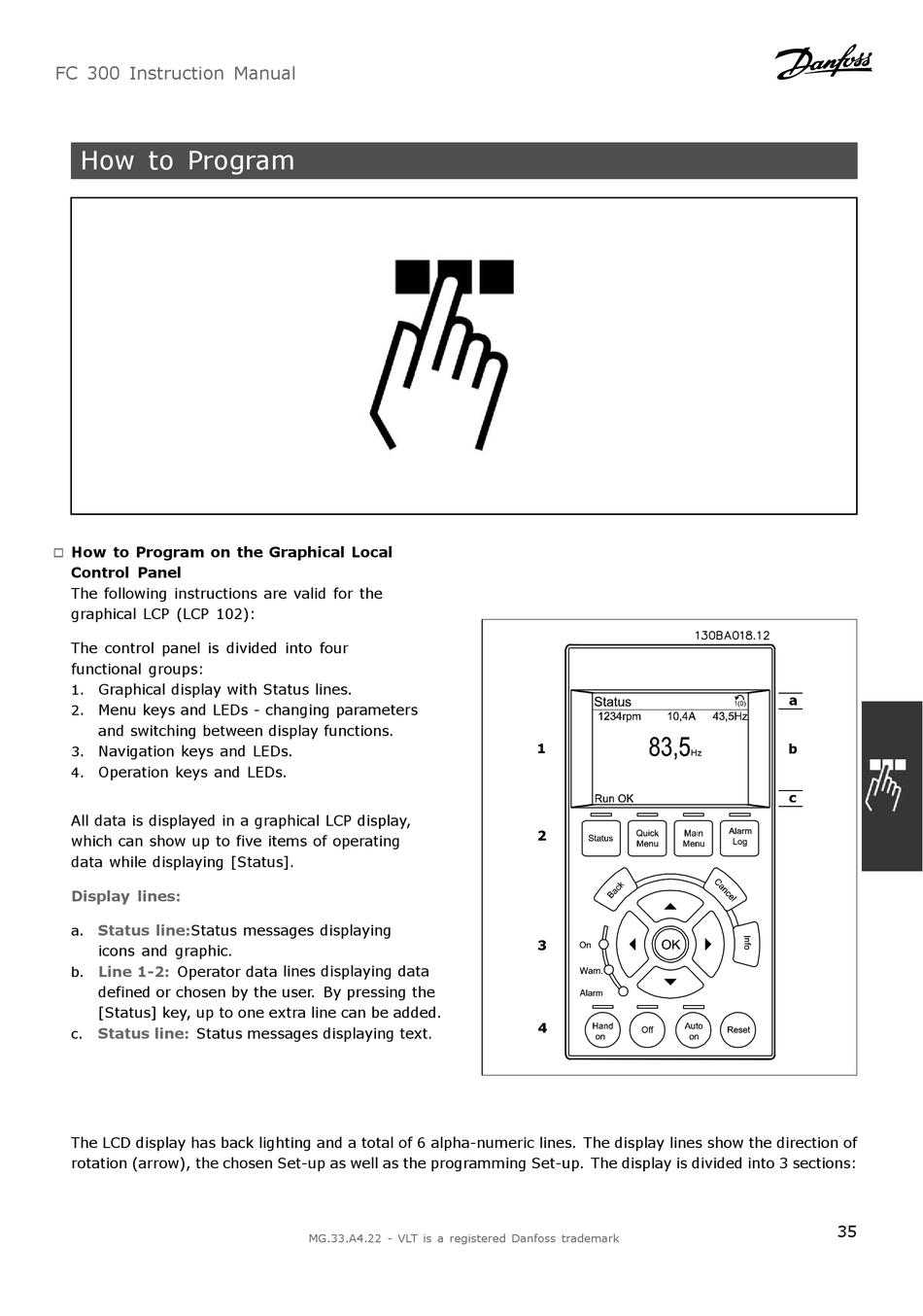

How to Program

How to Program on the Graphical Local
"
Control Panel
The following instructions are valid for the
graphical LCP (LCP 102):
The control panel is divided into four
functional groups:
1. Graphical display with Status lines.
Menu keys and LEDs - changing parameters
2.
and switching between display functions.
Navigation keys and LEDs.
3.
Operation keys and LEDs.
4.
All data is displayed in a graphical LCP display,
which can show up to five items of operating
data while displaying [Status].
Display lines:
a. Status line:Status messages displaying
icons and graphic.
Line 1-2: Operator data lines displaying data
b.
defined or chosen by the user. By pressing the
[Status] key, up to one extra line can be added.
c. Status line: Status messages displaying text.
The LCD display has back lighting and a total of 6 alpha-numeric lines. The display lines show the direction of
rotation (arrow), the chosen Set-up as well as the programming Set-up. The display is divided into 3 sections:
MG.33.A4.22 - VLT is a registered Danfoss trademark
35
